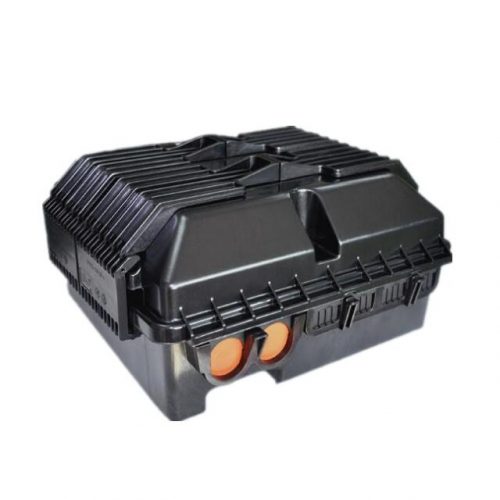

16 ports Outdoor Waterproof Wall Mounted FTTH Fiber Splitter Distribution Box FDB16L Unload or Preloaded with 16pcs short flange SC/UPC, SC/APC fiber adapters or PLC fiber splitter is designed with 4 easy plastic panel to fasten the main body. It is quite convenient to open it for fiber optic pigtails or splitter assembly. You can pass through 2 pcs fiber optic cables and 1pcs 1:16 PLC fiber splitters. The max capacity is 16 cores.
Specification
| Suitable Adapters | SC Fiber Optic Adapter (Different from Normal Adapters) |
| Material | Premium ABS material |
| Weight | 2520G |
| Available Cable | Outdoor or Indoor Cable |
| Outlet | 16 Ports |
| Installation way | Wall Mount or Pole Mountable |
| Dimensions | 280mm*280mm*220mm |
| Applications | Wall or Pole Installation |
| Compatible Riser Cable Types | Yes |
| Connector Capacity | 16pcs SC or 32pcs LC connectors |
| Connector Type | SC LC |
| Drop Cable Connection | Yes |
| Includes Splitters | No |
| Indoor Outdoor | Both Indoor / Outdoor Cable |
| Location | Cabinet Usually |
| Location of Use | Data Center |
| Lock Compatible | Screws |
| Number of Terminal Drops | 2 Outdoor fiber Cables + 16 indoor drop fiber cables |
| Number of Trays | 1 Splice Tray |
| Product Type | Fiber Enclosure |
| Solution for | Wall / Pole Mount Cabling |
| Splice Capacity | 16 fibers |
| Splitter Capability | Yes |
| Trademark | sfiberoptic or Customized |
| Lead Time | 5 days for 100pcs, 10 days for 800pcs |
| MOQ | 20pcs |

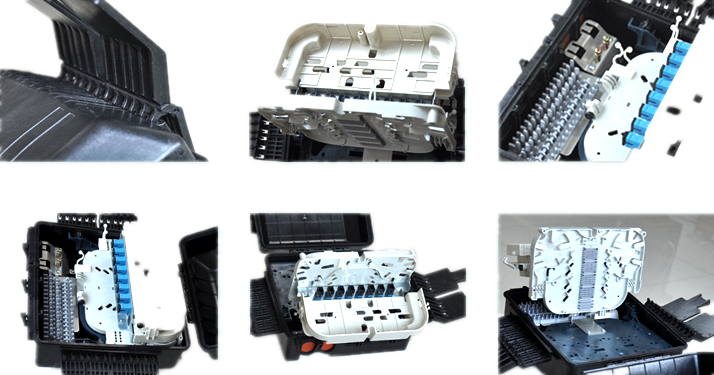

Image Details
16 ports Outdoor Waterproof Wall Mounted FTTH FDB Fiber Splitter Distribution Box for Fiber Cable
FAQs
What items are included in this 16 ports Outdoor Waterproof Wall Mounted FTTH FDB Fiber Splitter Distribution Box for Fiber Cable
A main parts (cover and base), 8 screws and 16 pcs heat shrinkable sleeves.
Fiber Optic adapters are included
No, SC fiber optic adapters can be installed as requirements and the price is exclusive of adapters.
What Is Optical Splitter in FTTH
