Basic Information

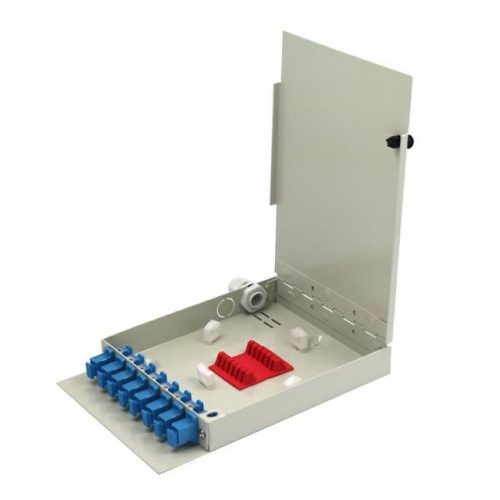

This 8 Ports LC SC Wall Mount Fiber Optic Termination Box Cable Optical Terminal Enclosure is made of 1.2mm metalic material.Suitable to work with 8 pcs SC Simplex or LC duplex fiber adapters on wall mount use. This fiber termination box comes with easy-to-open cover & base type to make installation very easy.
Specification
| Suitable Adapters | SC LC |
| Material | Cold Rolled Steel Plate |
| Weight | 1300g |
| Available Cable | Outdoor or Indoor Drop Cable |
| Outlet | 8 Port |
| Cable Diameter | Ф5-Ф10mm |
| Installation way | Wall Mount |
| Dimensions | 200mmx165mmx40mm |
| Applications | Wall Mount Distribution Use |
| Compatible Riser Cable Types | Yes |
| Connector Capacity | 4 pcs SC or 8 pcs LC connectors |
| Connector Type | SC LC |
| Drop Cable Connection | Yes |
| Includes Splitters | No |
| Indoor Outdoor | Both Indoor / Outdoor Cable |
| Location | Wall Mount Usually |
| Location of Use | FTTH FTTB |
| Lock Compatible | Button |
| Number of Terminal Drops | 2 Cables |
| Number of Trays | 1 pcs 4 fiber Splice Tray |
| Product Type | Wall Mount Termination Box |
| Solution for | Wall Mount Cabling |
| Splice Capacity | 4 fibers |
| Splitter Capability | Yes |
| Trademark | sfiberoptic or Customized |
| Lead Time | 5 days for 100pcs, 10 days for 800pcs |
| MOQ | 20pcs |
Image Details

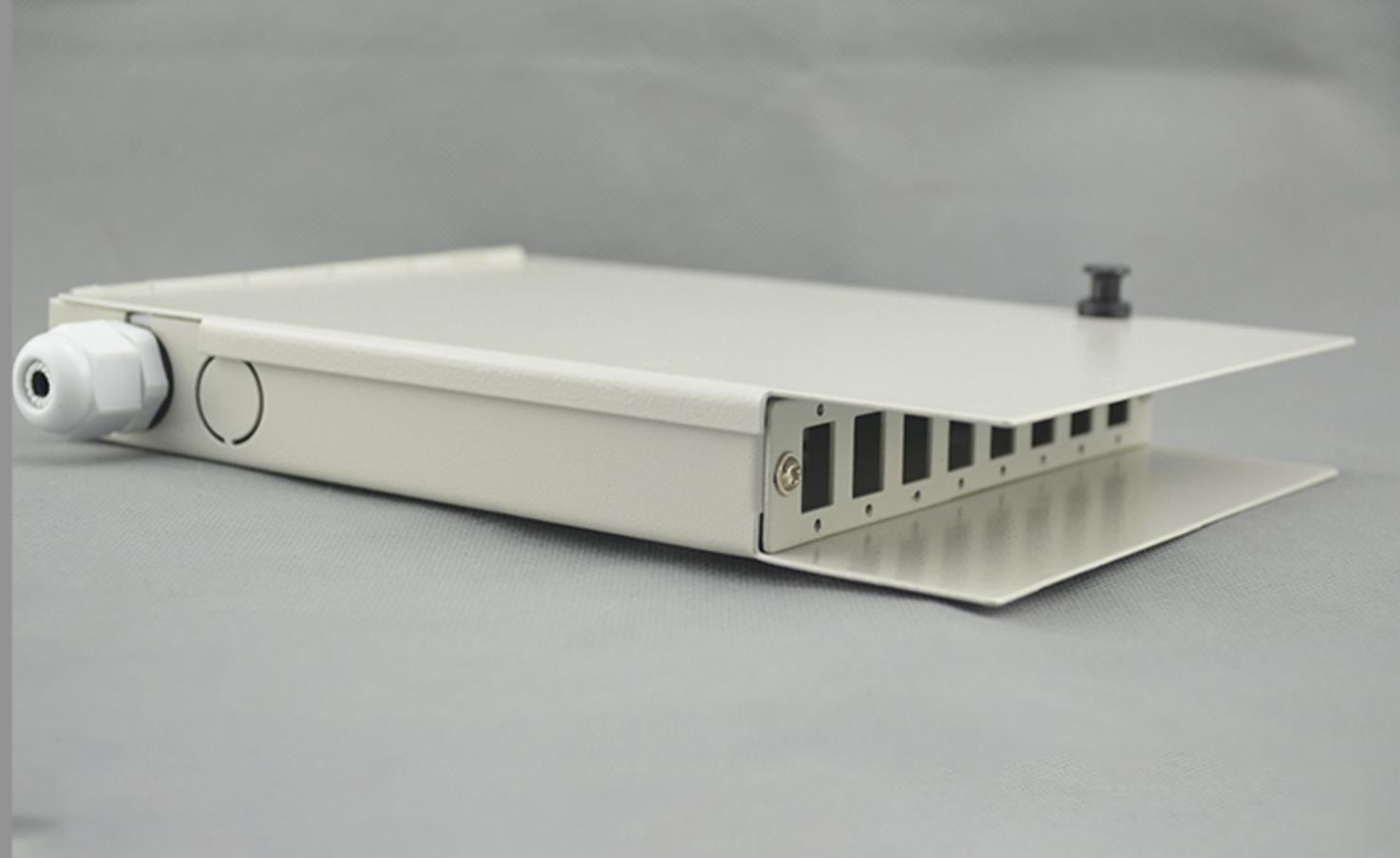

8 Ports LC SC Wall Mount Fiber Optic Termination Box Cable Optical Terminal Enclosure side view

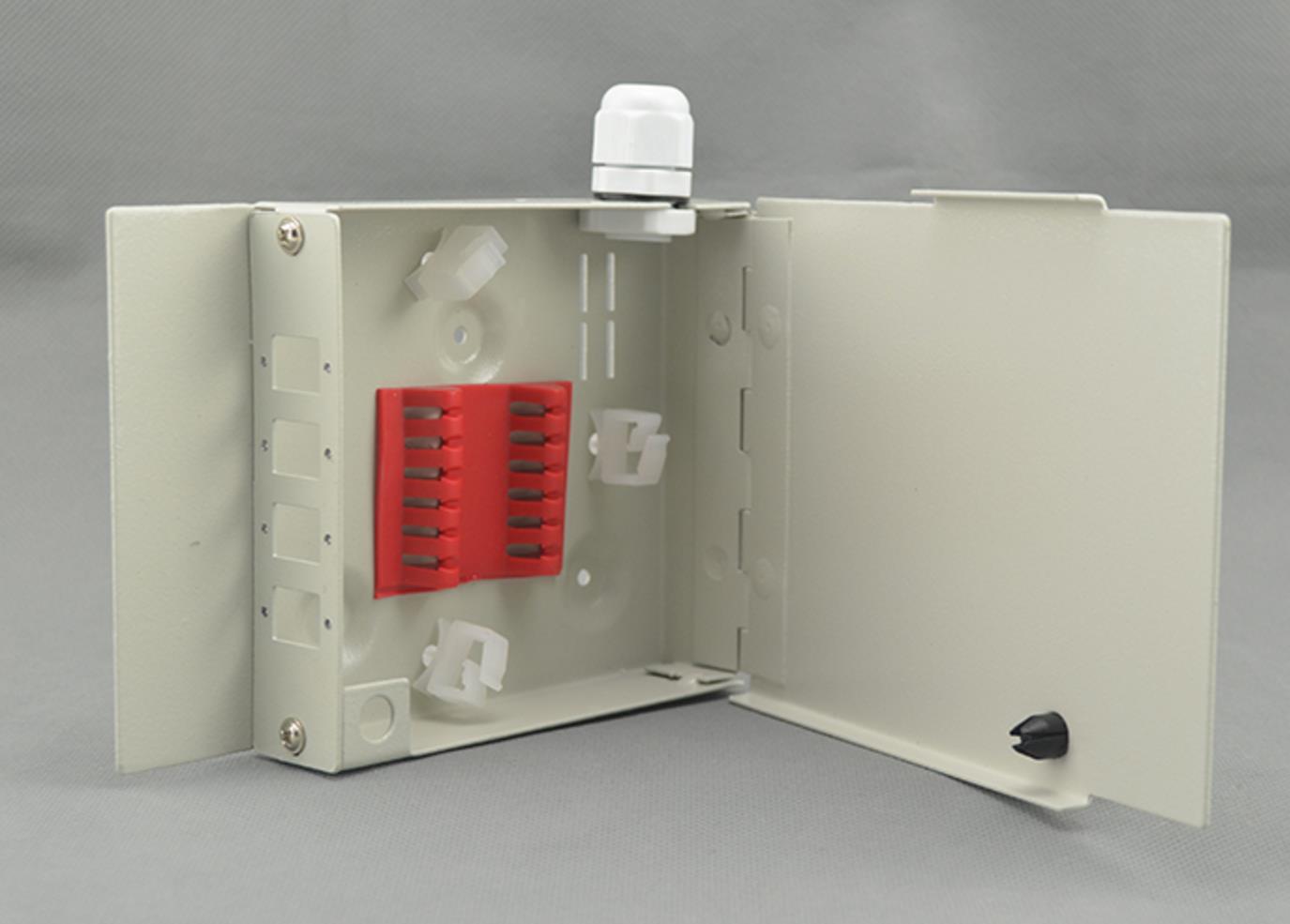

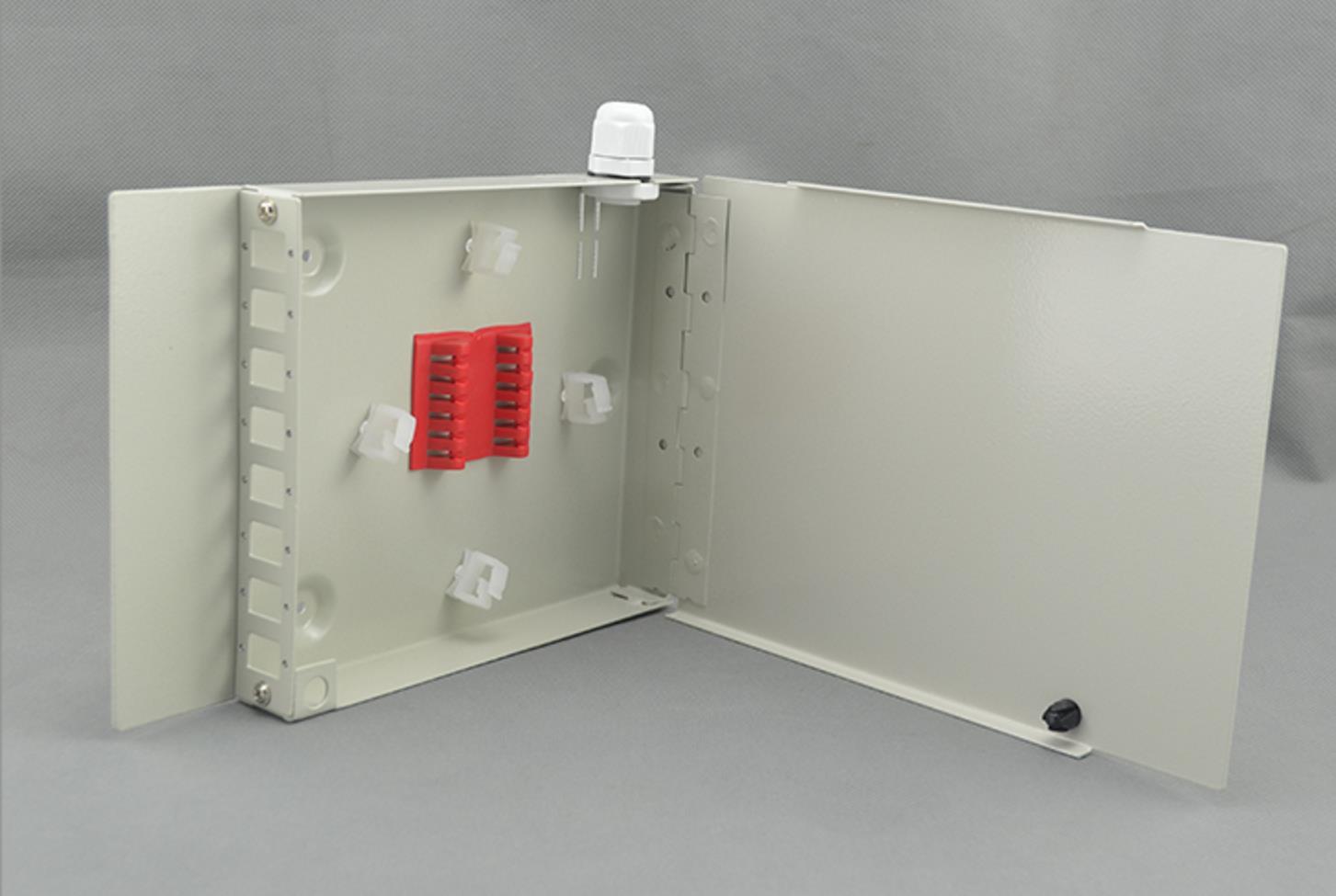

8 Ports LC SC Wall Mount Fiber Optic Termination Box Cable Optical Terminal Enclosure inside

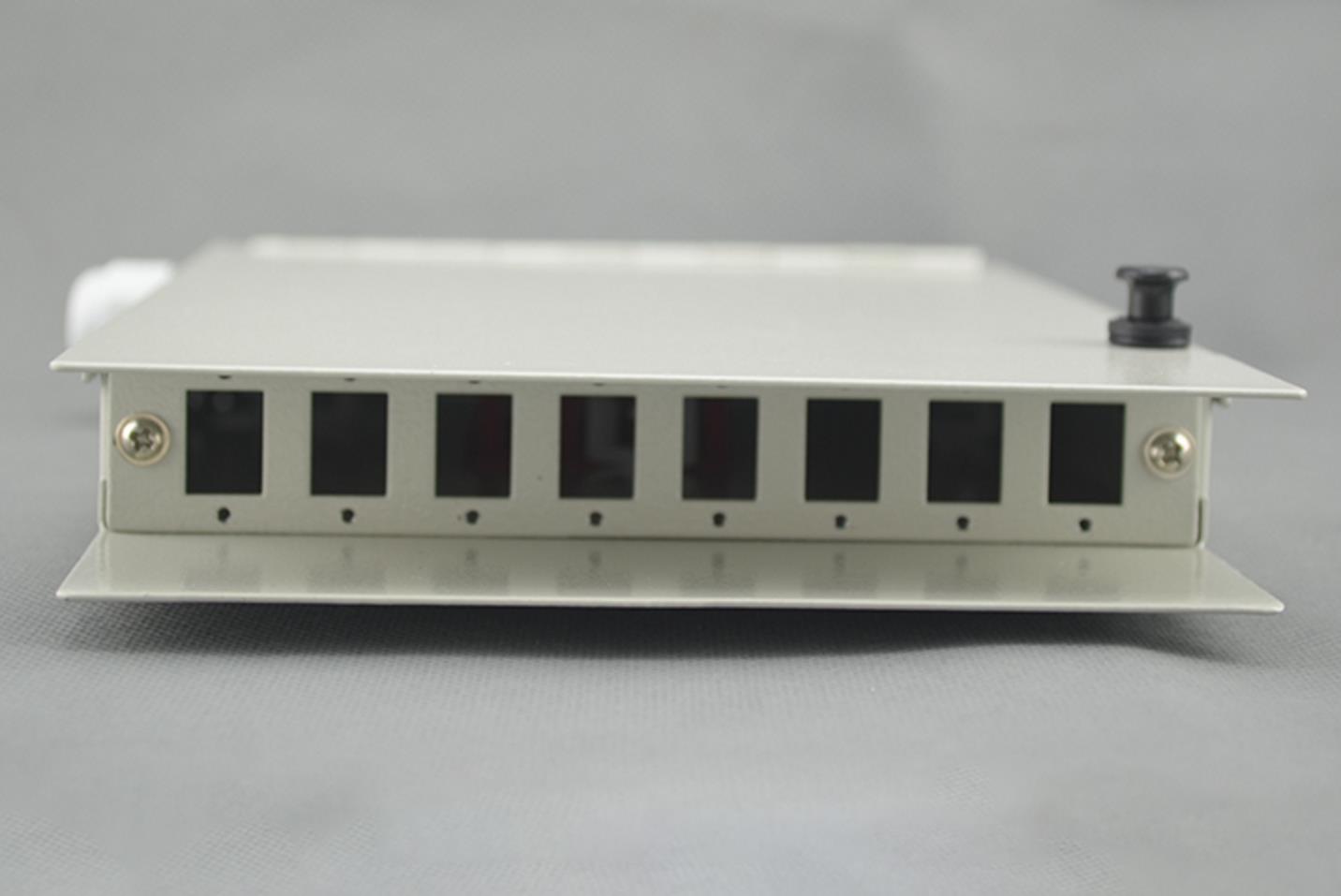

8 Ports LC SC Wall Mount Fiber Optic Termination Box Fiber Port
8 Ports LC SC Wall Mount Fiber Optic Termination Box compare with 4 ports Fiber Optic Termination Box
8 Ports LC SC Wall Mount Fiber Optic Termination Box Wire Ring
FAQs
What items are included in this 8 Fiber Ports SC LC Wall Mountable Fiber Optic Terminal Box Cable Fibre Termination Enclosure
A main parts (cover and base), 2 screws and 2 pcs heat shrinkable sleeves.
Can it access two pcs fiber optic cable
Yes, You can open the surplus port for another fiber cable
What fiber optic adapter can be installed inside this fiber optic face plate
usually it is used with SC/UPC or SC/APC fiber adapter
