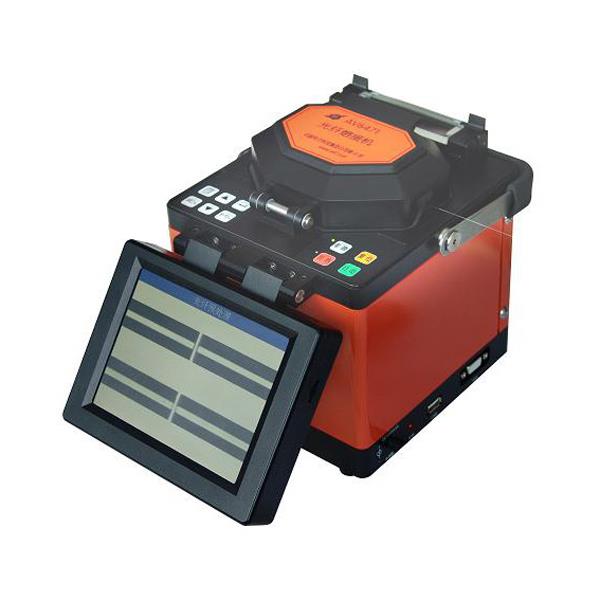

AV6471 Optical Fiber Fusion Splicer
AV6471 is an optical fiber splicing device with a brand new design. With powerful functions and super low splicing loss, it is highly competent for construction of trunk lines and FTTx. Lightweight and compact, it is easy to use even in confined space. The novel fiber imaging system makes the image clearer. The real-time embeded Operating System provides a friendly man-machine interface and abundant functions. The built-in large capacity Li-Ion battery can support long-time field work. The real-time compensation system for temperature, humidity and air pressure has greatly enhanced the device against unfavorable environment changes and thus guarantees its consistency of low loss splicing in various environments.
The standard kit includes AV2461 Fusion Splicer, carry case, AC power adapter & cable, spare electrodes, dust-off blower, push-top IPA dispenser, fibre cooling bracket, user manual.
A novel fiber imaging system provides clear images and a real-time embedded operating system provides a friendly man-machine interface with abundant functionality. The built-in large capacity Li-Ion battery can support long-time field work. Real-time compensation of temperature, humidity and air pressure variations greatly enhances performance and guarantees consistent low loss splicing in changing environments.
Main Features:
- New fully-digitised design
- Small & lightweight: only 2.8kg with battery
- 8 seconds splice time, 25 seconds for pyrocondensation
- Automatic start of splicing or pyrocondensation upon closing the cover can be set
- Simultaneous X/Y axis display with up to 340x zoom
- Real-time closed-loop discharge adjustment; no need for user intervention
- Long life Electrodes; up to 4000 discharges
- USB and VGA ports
- 5.7 inch high resolution digital LCD display
- Precise real-time display of remaining battery capacity
- Built-in high capacity battery; enabling up to 220 splicing and heating cycles per charge
HD Optical Image Acquisition System
- HD aligner for double separate optical fibres
- High performance CMOS sensor
- 640×480 pixel sensor
Lens Imaging Optical Fibre Aligning System
- Fast evaluation of fibre profile
- Precise fibre alignment
- Precise evaluation of splicing loss
Real-time Discharge Correction System
- High performance discharging electrode
- AC-DC mix discharging technique
- Current feedback and environment compensation
Typical Applications:
The AV6471 Fibre Splicer is deployed in many applications, including fibre cable construction, fibre line maintenance, emergency repair of fibre cables and test and production of optical fibre components.
Technical Specifications:
| Parameter | Specification |
| Fibre Types | SMF(ITU-T G.652), MMF(ITU-T G.651), DSF(ITU-T G.653), NZDSF |
| Average Splicing Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
| Return Loss | |
| Operation Mode | Auto, Half-auto, Manual |
| Align Mode | Advanced PAS align mode |
| Fibre Diameter | Clad diameter:80um-150um, Coating diameter:100um-1000um |
| Cleave Length | 8-16mm(coating diameter |
| Magnification | Vertical 152x, horizontal 304x |
| Image Display | 5.7″ 640×480 LCD |
| Pull Test | Standard 2N (optional) |
| Pyrocondensation Tube | 40mm, 60mm and a series of micro Heat-Shrinkable Tubing |
| Battery Capacity | Typically splice 220 times per charge, charging for 3.5 hours |
| Battery Lifetime | Cycle life up to 300-500 times, replaceable |
| Electrode Lifetime | >4000 times, replaceable |
| Lighting for Construction | Built-in super High-brightness LED supply, convenient for night work |
| Ports | USB, VGA |
| Power Supply | Built in 11.1V Lithium Ion Battery. AC adapter (input AC100-240, output DC13.5V/4.5A) |
| Environment Adaptation | Temperature range:-10°C-50°C; Humidity:95%RH (40°C,non-condensing); Altitude:0-5000m |
| Size | LxWxH=160x150x140(mm) |
| Weight | 2.3kg (no battery ), 2.8kg (including battery) |

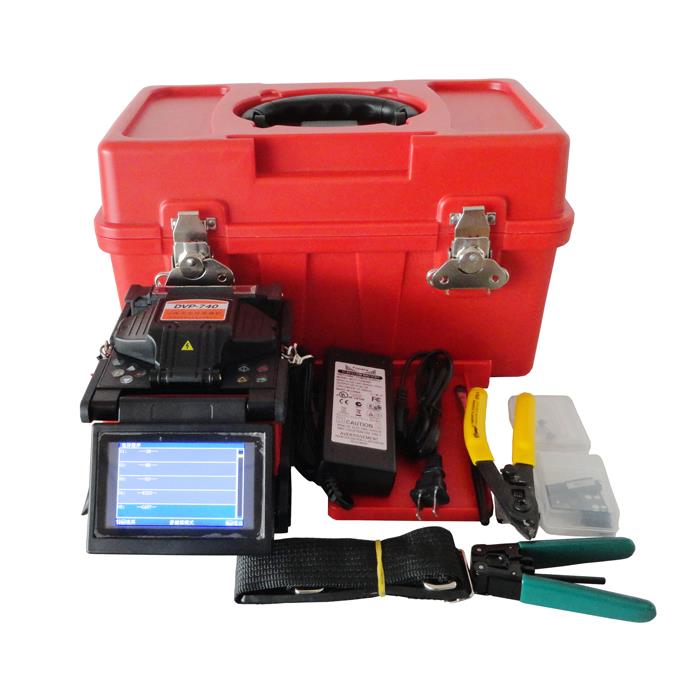

Standard Equipment:
| Key | Description | Quantity |
| 1 | AV6471 optical fibre fusion splicer | 1 |
| 2 | AC power adapter | 1 |
| 3 | AC current cable | 1 |
| 4 | Standby electrode | 1 |
| 5 | Blower brush | 1 |
| 6 | Bottle with siphon | 1 |
| 7 | Fibre bracket | 1 |
| 8 | User manual | 1 |
| 9 | Luxury tote kit | 1 |
Optional Equipment:
| Key | Description | Remark |
| 1 | Fibre Cleaver | AV33012 |
| 2 | Li-Ion battery | 11.1V/10Ah |
