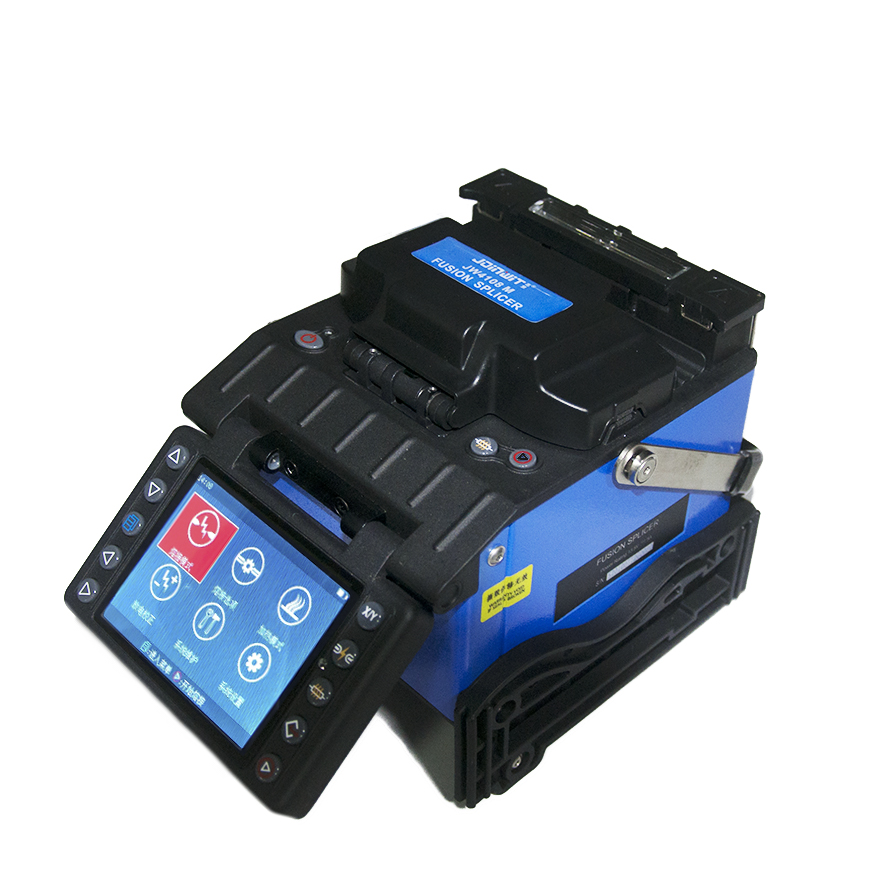

JW4108M Optical Fusion Splicer

Model

Fusion
Splicer

Splicing
Type

SM, MM,
DS, NZDS

Splicing
Loss

0.02dB(SM),0.01dB(MM),0.04dB(DS/NZDS)

Return
Loss

60dB

Splicing
Time

≤9s

Heat
Time

≤35s

Cleaved
Length

8-16mm

Optical
fiber Alignment

precise,
core and cladding alignment

Optical
Fiber Diameter

Cladding Diameter 80-150um, Coating diameter 100-1000um

Cutting
length

Coating
layer 250 below: 8-16 mm;

The
coating layer is 250- 1000 meters: 16 mm

Heat-Shrinkable
T bush

60mm, 40mm and
a series of miniature casing

Tension
test

Standard
2N (optional)

Optical
fiber fixture

3 in 1 fixture. For bare optical fiber, jumper
wire, covered wire,
Optional function SC connector etc.

Amplification

≥200
times (X/Y axis display)

Display

3.5-inch TFT color LCD display, content can be
flipped to
facilitate two-way operation

External
Interface

USB
interface for data download and software update

Welding
mode

53 sets of factory mode, 40 sets of user mode

Heating
mode

11 sets
of factory mode, 24 sets of user mode

Continuous
loss storage

The built-in memory holds 4000 latest
connection results

Built-in
Battery

Continuous
welding and heating not less than 300 times
(typical environment)

Power
Supply

Built-in lithium battery 11.1v power supply;
Independent charger, charging time ≤3.5 hours.

Power
supply adapter, external adapter

(input ac100-240v 50/60hz, output dc13.5v /
4.8a)

Operating Temperature

Temperature: -10-+ 50°C,
humidity:

Working altitude: 0-5000m, maximum wind speed: 15m/s

Built-in Flooding Light
