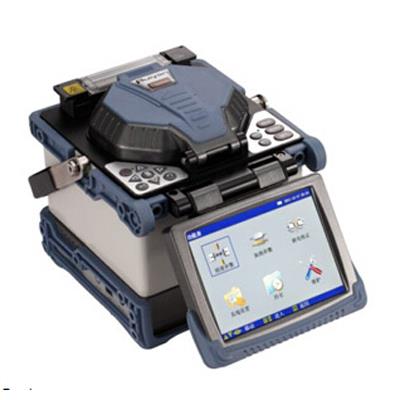

RY-F600 Fusion Splicer
Digital fusion splicer with automatic focus function Fiber core can be display clearly Single X or Y view and X & Y view simultaneously.
Features:
Digital fusion splicer with automatic focus function
Fiber core can be display clearly
Single X or Y view and X & Y view simultaneously
Auto detect cleaved endface fault
Display fiber cleaved and offset angle
Display core and clad offset
5.1 inch TFT color LCD monitor with clear digital image display
USB & VGA interface
Software upgrade via USB interface
Specifications:
| Model | RY-F600 |
| Applicable fibers | SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) |
| Fiber cleaved length | 10 -16mm (Coating diameter |
| Fiber diameter | Cladding diameter:80 -150um , Coating diameter:100 -1000um |
| Auto focusing | Available |
| Fiber aligning method | Core aligning, clad aligning, manual aligning |
| Average splice loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB( NZDS) |
| Splicing time | Typical 9 sec,with standard SM fiber |
| Heating time | Typical 36 sec |
| Applicable sleeves | 60mm, 40mm and a series of micro sleeves |
| Tension test | 2N(option) |
| Electrode life | 5000 |
| Battery capacity | Typical 400 cycles (splice and heat) |
| Monitor | 5.1 inch TFT color monitor |
| Terminal | USB 1.1 and VGA , software upgrade via USB interface |
| Operating condition | 0 - 5000m above sea level, 0 - 95%RH and -10-50oCC, respectively, Max. wind velocity of 15m/s |
| Splicing mode | Auto ,normal |
| Fiber cleaved angle threshold set | 0.1 - 10.0 oC , 0.1oCstep |
| Power supply | Li-battery 11.8V , AC100-240V DC12.6V/5.0A |
| Dimension | L169*W152*H155mm |
| weight | 2.4kg 2.9kg(battery) |
