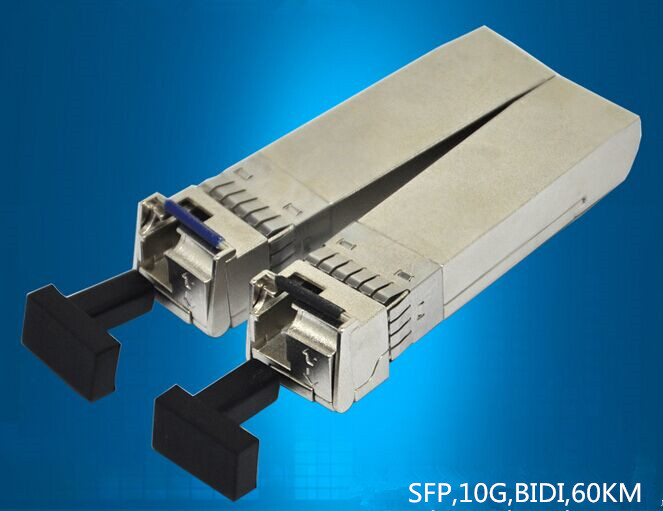

Cisco 60km bidi wdm SFP-10G-BX60U-I/SFP-10G-BX60D-I 10G SFP+ 1270nm-TX/1330nm-RX DOM Fiber Optic Transceiver
BIDI SFP+ transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Features:
One Fiber Bi-Di SFP+ Optical Transceiver, Bidi WDM SFP+
Up to 10.3 Gbps Bi-directional Data Links
Fully Compliant with SFP+ MSA
Compliant to IEEE 802.3ae 10GBASE-BX
SFF-8472 Digital Diagnostic Function
Simplex LC Connector
1330TX/1270RX and 1270TX/1330RX
Distance Up to 10, 20, 40 km
Only Required +3.3 V Power Supply
RoHS Compliant
-5 to 70C Operating
Application:
10GBASE-BX at 10.3125 Gb/s
10GBASE-BX at 9.953 Gb/s
1000 Base-LX Ethernet
8XFC at 8.5Gbps
4XFC at 4.25Gpbs
2XFC at 2.125Gpbs1xFC at 1.0625Gbps
