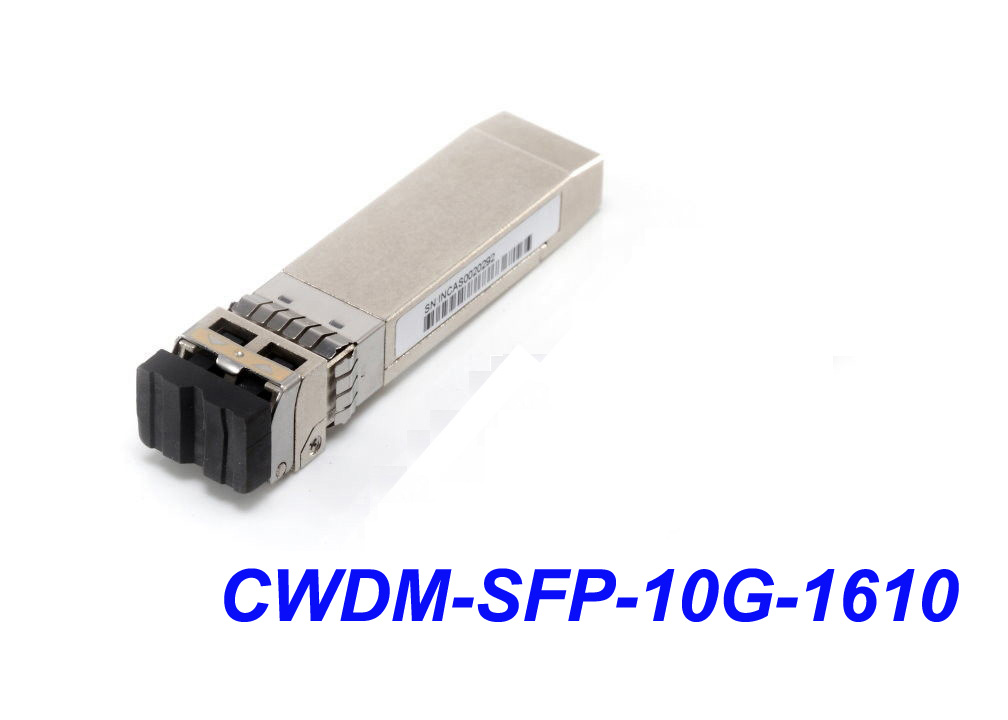

Customized 10G CWDM SFP+ 1270/1310/1330/1350/1470/1490/1550/1610 20km to 120KM DOM Fiber Optic Transceiver
Description
sfiberoptic CWDM SFP+ transceiver is small form factor pluggable module for bi-directional serial optical data communications such as IEEE 802.3ae 10GBASE-LR/LW/ER/ZR. It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are 18 center wavelengths available from 1270 nm to 1610 nm, with each step 20 nm. A guaranteed minimum optical link budget of 14 dB is offered. The transmitter section uses a CWDM multiple quantum well DFB/EML laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.SFP-10G-CWDM-DWDMBIDI CWDM SFP+ special CWDM SFP+, TX and RX with the same wavelength. It comes with pigtail LC/APC or SC/APC coming out from the transceiver port. AT present available waves 1270-1330, if you need other waves, please, contact with us.
Features:
Up to 10.5 Gb/s Bi-directional Data Links
Can be used with single fiber CWDM system or dual fiber CWDM system
10Gb Ethernet
2G/4G/8G/10G Fibre Channel compliance
Complaint to SFP+ MSA
Compliant to IEEE 802.3ae 10GBASE
Maximum Link Length of 80 km at 10.3125Gb/s
Uncooled 18-λ CWDM DFB/cooled EML LD: from 1270 nm to 1610 nm
Power Budget up to 10dB, 14dB, 16dB, 23 dB
SFF-8472 Digital Diagnostic Function
AC/AC Coupling according to MSA
Single +3.3 V Power Supply
RoHS 6/6 Compliant
Class 1 Laser International Safety Standard IEC-60825 CompliantPackage
Fiber Type
Data Rate Range
Wavelength
Optical Components
Distance Range
Case Temperature range
Application
CWDM SFP+ LR, CWDM SFP+ ER, CWDM SFP+ ZR, BIDI CWDM SFP+ LR:
BIDI SFP+
SMF
9.95-11.1G
1270/1290/1310/1330nm
DFB/PIN
9dB
0-70
SFP+
SMF
9.95-11.1G
1270/1290/1310/1330nm
DFB/PIN
10dB
0-70
Eth,10GFC
SFP+
SMF
9.95-11.1G
1270/1290/1310/1330nm
DFB/PIN
14dB
0-70
Eth,10GFC
SFP+
SMF
9.95-11.1G
1270/1290/1310/1330nm
DFB/APD
23dB
0-70
Eth,10GFC
SFP+
SMF
9.95-11.1G
1350-1610nm
DFB/PIN
10dB
0-70
Eth,10GFC
SFP+
SMF
9.95-11.1G
1470-1610nm
EML/PIN
14dB
0-70
Eth,10GFC
SFP+
SMF
9.95-11.1G
1470-1610nm
EML/APD
23dB
0-70
Eth,10GFC
SDH SONET CWDM SFP+ with CDR:
SFP+
SMF
9.95-11.1G
1270/1290/1310/1330nm
DFB/PIN
10dB
0-70
Eth,SDH,10GFC
SFP+
SMF
9.95-11.1G
1270/1290/1310/1330nm
DFB/PIN
14dB
0-70
Eth,SDH,10GFC
SFP+
SMF
9.95-11.1G
1270/1290/1310/1330nm
DFB/APD
23dB
0-70
Eth,SDH,10GFC
SFP+
SMF
9.95-11.1G
1350-1610nm
DFB/PIN
10dB
0-70
Eth,SDH,10GFC
SFP+
SMF
9.95-11.1G
1470-1610nm
EML/PIN
14dB
0-70
Eth,SDH,10GFC
SFP+
SMF
9.95-11.1G
1470-1610nm
EML/APD
23dB
0-70
Eth,SDH,10GFC
8G Fiber Channel CWDM SFP+:
SFP+
SMF
8G
CWDM
DFB/PIN
10dB
0-70
