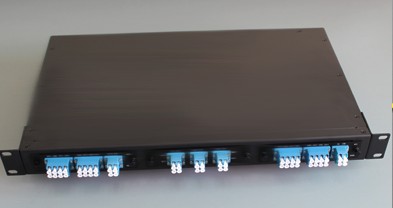

CWDM Rack, contain 3pcs LGX Module
| Features |
|
| Application |
|
Performance Index
| Items | Parameter | ||
| Operating Wavelength (nm) | 1270-1610/1271-1611 | ||
| Center Wavelength Accuracy (nm) | ± 0.5 | ||
| Channel Space (nm) | 20 | ||
| Channel Passband (@-0.5dB bandwidth)(nm) | >13 | ||
| IL (dB) | Add/Drop Ch. | < 1.6 | |
| Express Ch. | < 2.0 | ||
| Add/Drop Channel Ripple (dB) | < 0.3 | ||
| Add/Drop Isolation (dB) | Adjacent Channel | N/A | >30 |
| Non-Adjacent Channel | N/A | >40 | |
| Express Channel Isolation (dB ) | >25 | ||
| IL Temperature Sensitivity (dB/℃) | <0.003 | ||
| Wavelength Temperature Shifting (nm/℃) | <0.002 | ||
| Polarization Dependent Loss (dB) | <0.10 | ||
| Polarization Mode Dispersion (ps) | <0.1 | ||
| Directivity (dB) | >50 | ||
| RL (dB) | >45 | ||
| Maximum Optical Power (mw) | 300 | ||
| Operating Temperature (℃) | 0 - +70 | ||
| Storage Temperature (℃) | -40 - +85 | ||
| Size (mm) | L430 x W250 x H43 | ||
Ordering Information
| CWDM-M | xx | xx | xx | xx | x | x |
| Port Configuration | Wavelength | Package Type | Fiber Typoe | Fiber Lebgth | Connector 连接头 | |
| WDM | 01=1ch | 27=1270nm | PS=100*80*10 | 9=900um loose tube | 10=1.0m | 0=None |
| M=Module | 02=2ch | 31=1310nm | PL=140*115*18 | 2=2.0mm loose tube | 15=1.5m | 1=FC/UPC |
| R=Rack | 04=4ch | 48=1480nm | LX=LGX box metal | 3=3.0mm loose tube | 20=2.0m | 2=FC/APC |
| 49=1490nm | 19=19”1U | 3=SC/UPC | ||||
| 4=SC/APC | ||||||
| 5=LC/UPC | ||||||
| 6=LC/APC | ||||||
| xx= customized | xx= customized | xx= customized | x= customized | x= customized |
