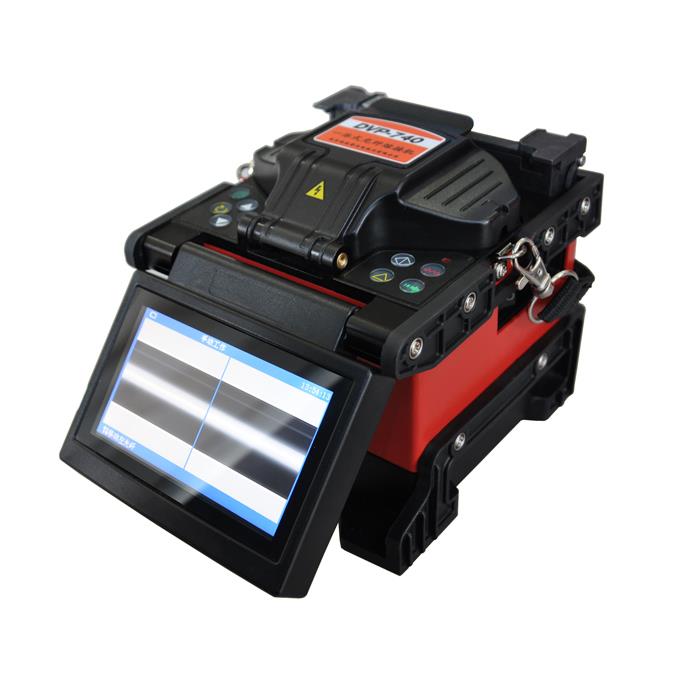

Mini FTTx DVP-740 Fusion Splicer
Features:
l Compact & Light weight
l Applied for Fibers, Cables and SOC (splice- on connector)
l Integrated Holder Design
l Fully Automatic, Semi-automatic and Manual Operation
l Shockproof, Drop resistance
l Power saving Function
l 4.3 inch Color LCD monitor
lUSB&DC interface
Specifications:
| Applicable fibers | SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector. |
| Fiber cleaved length | 8-22mm |
| Average splice loss | 0.02dB(SM)、0.01dB(MM)、0.04dB(DS)、0.04dB(NZDS) |
| Return loss | ≥60dB |
| Tension test | 2.0N(200gf)(Standard) |
| Protection sleeve length | 20mm, 40mm, 60mm |
| Splice Program | 5 groups of preset programs, 75 group of manual setting |
| Language | English, Chinese, Russian, Spanish, Portuguese. |
| Environment conditions | -25-＋50℃ (operation temperature), 0-95%RH (humidity), 0-5000m (altitude) |
| Storage environment | -40- +80℃ (temperature) , 0-95％RH (humidity) |
| Power supply | AC adaptor： 85-260V input voltage Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat |
| Dimensions/Weight | 142（D）x122（W）x138（H）mm/1.95kg |
STANDARD PACKAGE
Fusion Splicer, Fiber Cleaver, Drop Cable Stripper, Connector holder, Heater Device for Connector, Spare Electrodes, Charger, Cooling Tray, Manual Instruction, Carry Box/ Bag.
