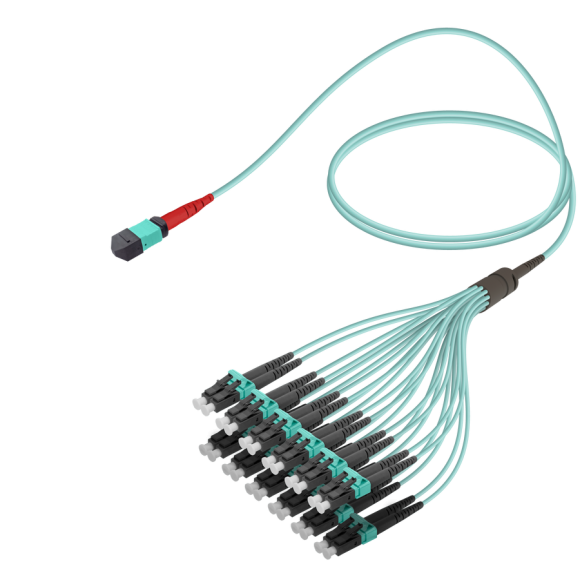

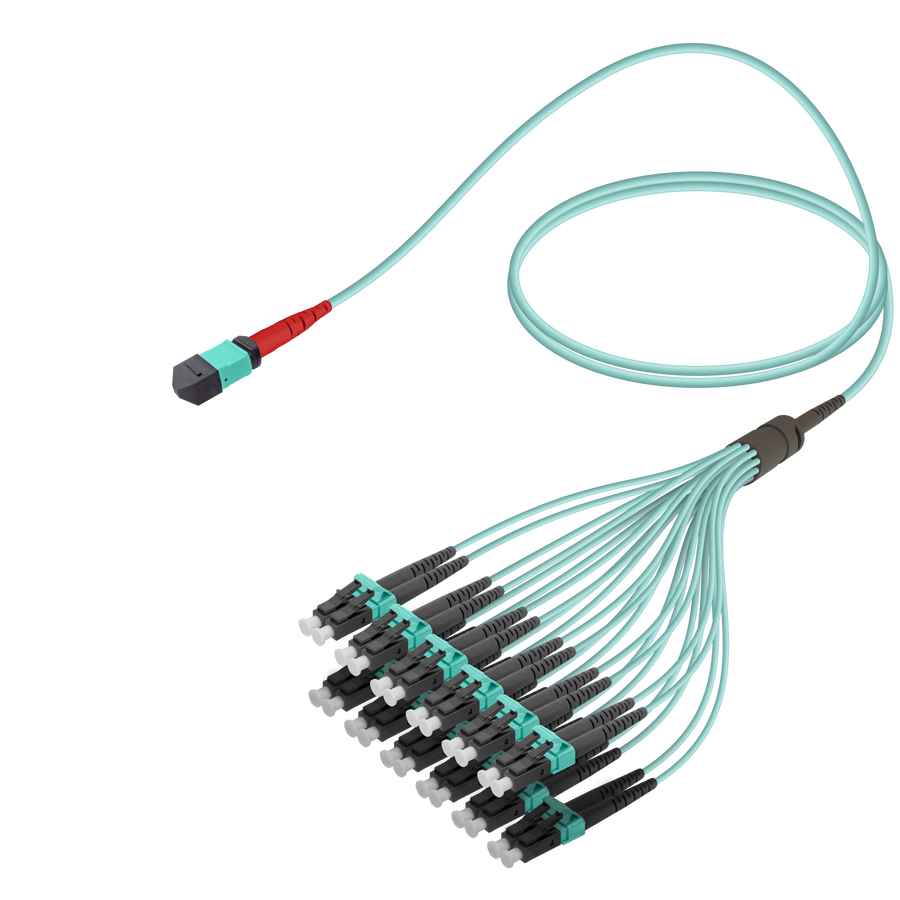

This MTP to LC fanout assembly has one Female Base-24 MTP connector on one side and 12 LC/UPC Duplex connectors on the other, and they are connected by 24 Multi-mode 1.8mm OM3 fiber cords that have 24 fibers with 50um core diameter and 125um cladding diameter, and they are bonded within a 3.0mm main cord.
LC means “Lucent Connector” and it has 1.25mm diameter ceramic ferrule. The UPC ferrule means its surface is ultra polished for ultra physical contact. The Elite MTP connector is a high performance version of the MPO (Multi-fiber Push On) connector and it is designed for better mechanical and optical performance. MTP connectors can terminate 8, 12 or 24 fibers in a single connector, and provide a great ‘space advantage’ especially in high density data centers. MTP Male connectors have two alignment pins; and MTP Female connectors have two pin slots in response.
Features
- Lower Insertion Loss & Higher Performance
- Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942
- Low IL and stable signal transmission ensuring your network safety
- High-quality MTP connectors and guaranteed by 3D interferometer
- 100% factory tested
Applications
- QSFP to SFP+ Connection
- QSFP+ to SFP+ Connection
- PSM4 to SFP+ Connection
- 40GE to 10GE Interconnection
- 400G to 100G Interconnection
Specifications
| Insertion Loss (IEC 61300-3-4-Method-B) | MTP≤0,35dB (avg: 0,1dB); LC≤0,3dB |
| Return Loss (IEC 61300-3-6-Method-B) | MTP: ≥60dB; LC: UPC≥50dB APC≥60dB |
| Durability | 100 mating cycles |
| Flammability | UL94 V-0 |
| Operating Temperature | -10 C to +70 C |
| Cable Diameter | 3.0 mm |
| MTP Connector Compliance | IEC 61754-7, TIA 604-5, RoHS |
| LC Connector Compliance | IEC 61754-20, TIA 604-10-A, RoHS |
Fiber Structure for Transceiver Modules
| TRANSCEIVER | FORM FACTOR | CONNECTOR | FIBER COUNT | FIBER TYPE | |
| 100G | CFP/CFP2/CPAK | SR10 / XSR10 | 24F MTP (MPO) | 20 | OM3/OM4 |
| SR4 | CPAK | 12F MTP (MPO) | 12 | OM3/OM4 | |
| SR4 / XSR4 | QSFP28 | 12F MTP (MPO) | 8 | OM3/OM4 | |
| PSM4 | QSFP28 | 12F MTP (MPO) | 8 | OS2 | |
| CWDM4 | QSFP28 | LC | 2 | OS2 | |
| LRL4 | CFP2/CPAK/QSFP28 | LC | 2 | OS2 | |
| SWDM4 | QSFP28 | LC | 2 | OM3/OM4 | |
| SR-BD | QSFP28 | LC | 2 | OM3/OM4 | |
| 40G | SR4 | QSFP+ | 12F MTP (MPO) | 8 | OM3/OM4 |
| 40G-C/X/ESR4 | QSFP+ | 12F MTP (MPO) | 8 | OM3/OM4 | |
| BIDI | QSFP+ | LC | 2 | OM3/OM4 | |
| LX4 | QSFP+ | LC | 2 | OM3/OM4 | |
| UNIV | QSFP+ | LC | 2 | OM3/OM4, OS2 | |
| LR4 / LRL4 / IR4 | QSFP+ | LC | 2 | OS2 | |
| SWDM4 | QSFP+ | LC | 2 | OM3/OM4 | |
| PLRL4 / PLR4 | QSFP+ | 12F MTP (MPO) | 8 | OS2 | |
| 4x10G | IR / LR | QSFP+ | 12F MTP (MPO) | 8 | OS2 |
| 10x10G | LR | CPAK | 24F MTP (MPO) | 20 | OS2 |
| 25G | SR | SFP28 | LC | 2 | OM3/OM4 |
| LR | SFP28 | LC | 2 | OM3/OM4 | |
| 10G | SR | SFP+ | LC | 2 | OM3/OM4 |
| LR | SFP+ | LC | 2 | OM3/OM4 | |
| 1G | SX | SFP | LC | 2 | OM3/OM4 |
| LX | SFP | LC | 2 | OS2 | |
