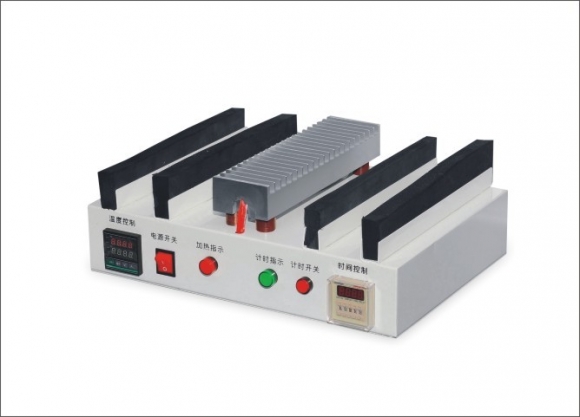

Fiber optic Connector Horizontal heating curing Oven 100B Fiber optic heating Oven is to heating the fiber optic fiber and epoxy glue to be join together . There are two types of heat oven . one kind of heating connector , another for heating the ferrule .
Fiber Optic Epoxy Curing Oven is used for heating Epoxy for all kinds of fiber optic connectors, like SC, FC, ST, LC, MU, MPO, etc. in fiber optic patchcord production line. It has Liquid Crystal Display (LCD) and friendly interface.
1.100B fiber curing oven is used to cure various types of fiber optical connectors, such as FC, SC, LC, MU, MTRJ ST MPO etc.
2. 96 pcs connectors can be cured at one time.
3. Use high precision temperature control system. Temperature adjustable from 0-160.C with tolerance of 土2.C
4. Indication of time and temperate control is available.
5. Fixture is exchangeable. Operation is easy_ It is proper for various connectors with epoxy glue.
6. Cores and pates can be customized
- Voltage AC220-240V
- Frequency 50/60Hz
- Power 1100w
- Temperature precision 土2.C
- Temperature Control Type Electrical Type
- Size 150mm x 280mm x 440mm
- Total Weight 15Kg
