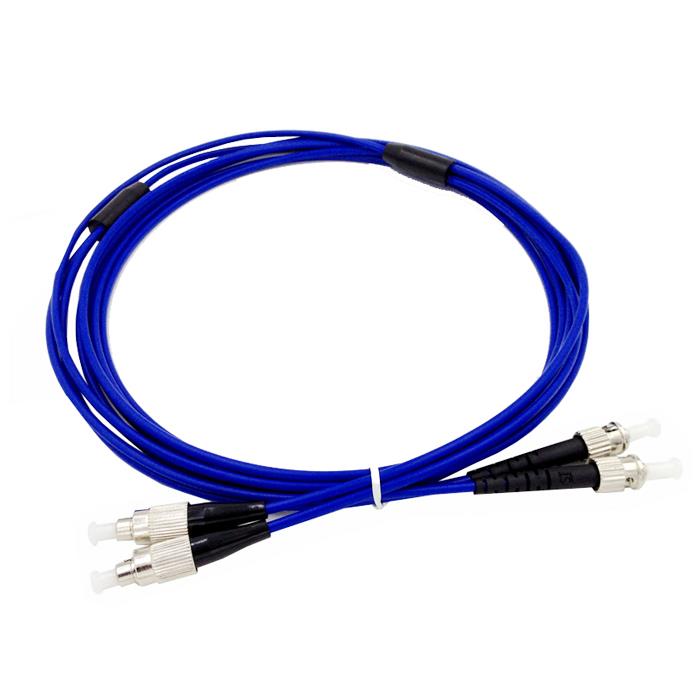

FC/UPC-ST/UPC Singlemode Duplex Fiber Optical Armored patch cables
Armored Patch Cable as the name implies, there is an helical stainless steel tape over a buffered fiber surrounded by a layer of aramid and stainless steel mesh with an outer jacket to better protect the cable work well in data center rooms and harsh environments. The singlemode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss before shipment, this is very costs effective for your network.
The singlemode cables work with both VCSEL laser and LED sources, it is generally used in the following areas:
Broadband Network
Optical Passive Network PON
FTTx, lCATV, lLAN and WAN
Military&Industry Harsh Environments

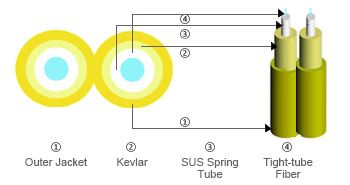

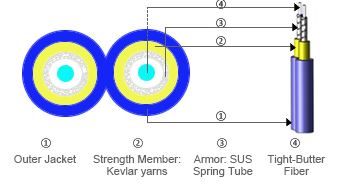

The difference between Standard cable and Armored cable
| Duplex – Standard Cable (Two armored tubes, one core in one tube) | Duplex – Armored Cable (Two armored tubes, one core in one tube) |
 Simplex – Standard Cable |  Armored Cable |
The default fiber diameter for the cable is 3.0mm, if you’d like to customize other types as 0.9mm, 2.0mm, please contact [email protected]
(The diameter refers to the thickness of the cable, the size is able to match the corresponding equipment port)
Specification:
| Specification | Unit | FC, SC, LC,ST, MU,MT-RJ,E2000 | |||
Single-mode & Multi-mode | |||||
UPC & APC | |||||
Insertion loss | dB | ≤0.3 | |||
Return loss | dB | ≥50 | |||
Wavelength | nm | 850, 1310, 1510 | |||
Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
Operating temperature | °C | -40-75 | -40-75 | -40-75 | -40-75 |
Storage temperature | °C | -45-85 | -45-85 | -45-85 | -45-85 |
Cable diameter | mm | 3.0,2.0,0.9 | 3.0,2.0,0.9 | 3.0,2.0,0.9 | 3.0,2.0,0.9 |
sfiberoptic.Com is one of the largest and best st/upc-fc/upc singlemode duplex armored fiber optic patch cords manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized st/upc-fc/upc singlemode duplex armored fiber optic patch cords in stock with our factory. Also, free sample is also available if necessary.
