Singlemode LC/APC-SC/APC Simplex Armored Fiber Patch Cable
Armored Patch Cable as the name implies, there is an helical stainless steel tape over a buffered fiber surrounded by a layer of aramid and stainless steel mesh with an outer jacket to better protect the cable work well in data center rooms and harsh environments. The singlemode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss before shipment, this is very costs effective for your network.
The singlemode cables work with both VCSEL laser and LED sources, it is generally used in the following areas:
Broadband Network
Optical Passive Network PON
FTTx, lCATV, lLAN and WAN
Military&Industry Harsh Environments
Warm Tips:
The default fiber diameter for the cable is 3.0mm, if you’d like to customize other types as 0.9mm, 2.0mm, please contact with [email protected]
(The diameter refers to the thickness of the cable, the size is able to match the corresponding equipment port)

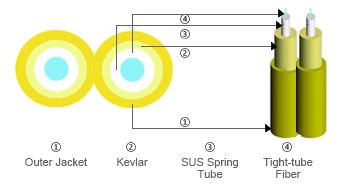

Below picture show the difference between standard cable and armored cable:
| Simplex – Standard Cable (One armored tube, one core in the tube) | Simplex – Armored Cable (One armored tube, one core in the tube) |
 Simplex – Standard Cable |  Armored Cable |
Specification:
| Specification | Unit | FC, SC, LC,ST, MU,MT-RJ,E2000 | |||
Single-mode & Multi-mode | |||||
UPC & APC | |||||
Insertion loss | dB | ≤0.3 | |||
Return loss | dB | ≥50 | |||
Wavelength | nm | 850, 1310, 1510 | |||
Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
Operating temperature | °C | -40-75 | -40-75 | -40-75 | -40-75 |
Storage temperature | °C | -45-85 | -45-85 | -45-85 | -45-85 |
Cable diameter | mm | 3.0,2.0,0.9 | 3.0,2.0,0.9 | 3.0,2.0,0.9 | 3.0,2.0,0.9 |
sfiberoptic.Com is one of the largest and best sc/apc singlemode simplex armored fiber optic cables manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized sc/apc singlemode simplex armored fiber optic cables in stock with our factory. Also, free sample is also available if necessary.
Hot Tags: SC/APC singlemode simplex armored fiber optic cables manufacturers, suppliers, factory, wholesale, customized, buy, bulk, in stock, free sample, fiber optic jumpers with armored jacket>- Customers Reviews
-
