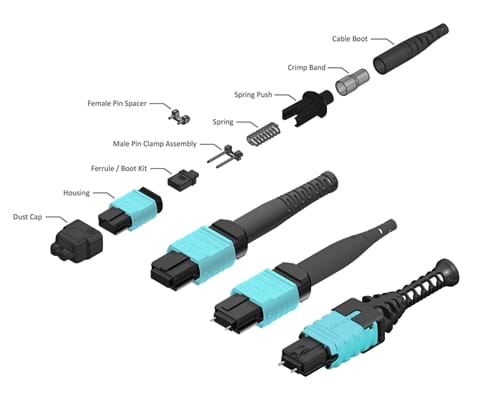

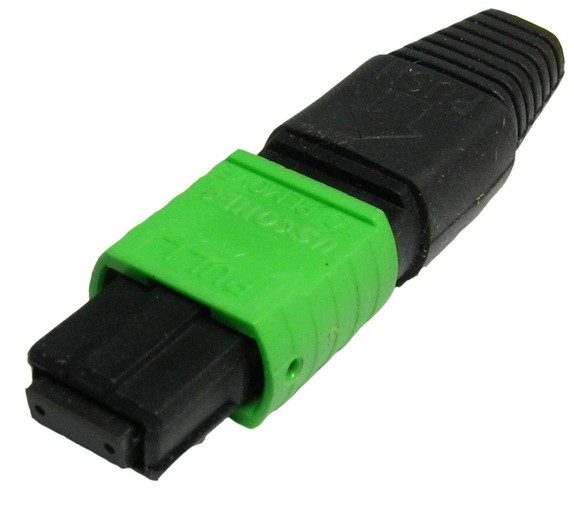

MPO Fiber Optic Connector Kit

MPO Connector provide reliable high performance interconnects of up to 32 bers in a small footprint.MPO Fiber Optic Connector Kit utilize the precision molded NTT compatible ferrule which connects four to 32 fibers using bare ribbon or ruggedized ribbon cable.So MTP/MPO connectors are widely used in High-Density And Multi-Fiber Interconnect Applications.

MPO connectors meet IEC 1754-7 and TIA/EIA 604-5 standards.

AVAILABILITY of MPO connectors

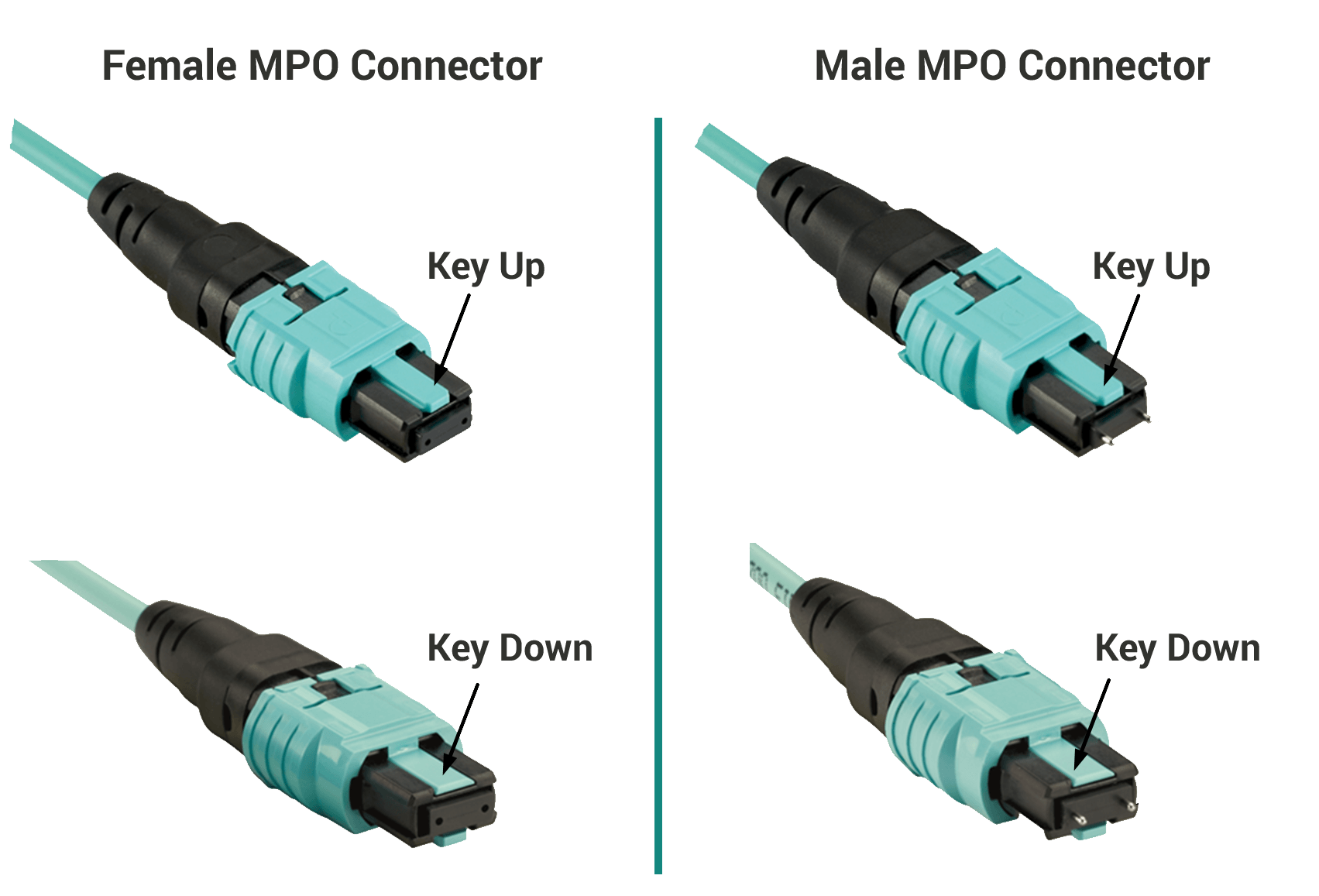

Male MPO connectors and female MPO connectors

single mode and multimoge MPO connectors

MPO connector specification

The difference between MTP connector and MPO connectors

MPO is Multiple-Fibre Push-On connector while MTP connector is simply tunned MPO connector with better optical and mechanical performance. MTP connector is designed by US Conec Ltd.,

What are the advantages of MTP connector

Removable connector housing – possibility to change the gender of connector even after assembly. Better physical contact – done by special spring design and superior design of guide pins.

Is MTP connector compatible with MPO connector/adapter

MTP connectors are fully compatible with MPO installations.

MTP/MPO cable

MTP/MPO cables are used in Ribbon type multi fiber assemblies. there are several fiberglass connections in one MTP/MPO cable .

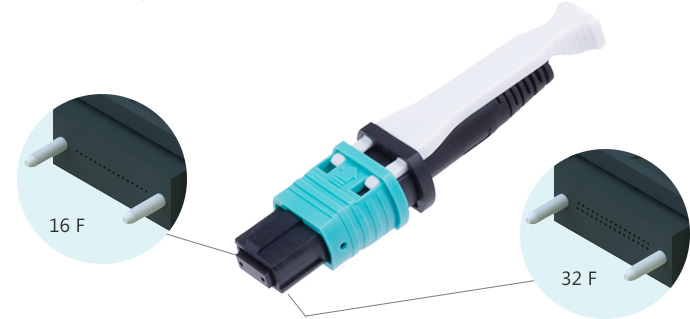

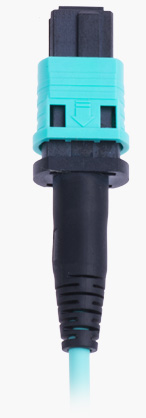

MPO 16C & 32C connector

MPO connector comes with multifiber applies to high density in data center or telecommunication systems. It depends on the high precision metal guide pin and the high precision ferrule pin hole to ensure the optical alignment. It’s comes with SM, MM,MMLL,16F,32F, high force spring for your choice.

Low insertion loss of MPO connectors deliver the performance and reliability needed intoday’s demanding high-speed broadband and data networks, which is available for 400G high speed tranmission.

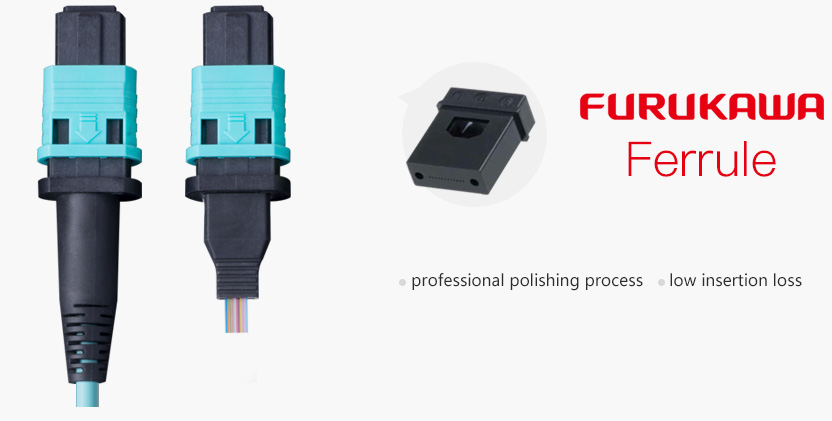

• Excellent Stability

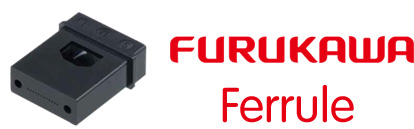

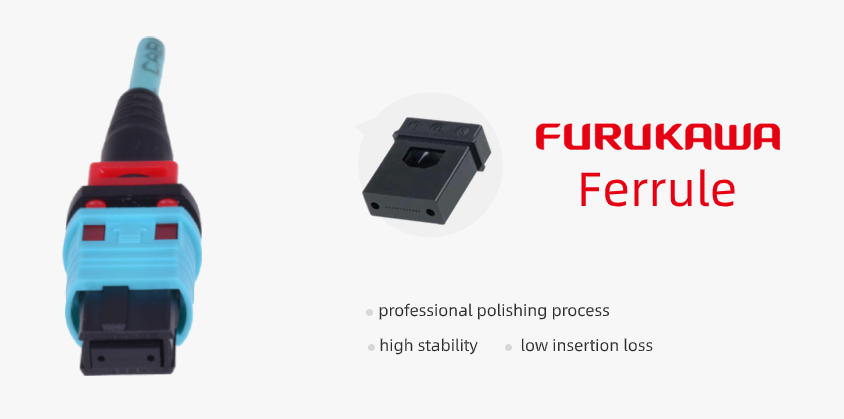

  The FURUKAWA ferrule imported from
  Japan and professional polishing process
  ensure high stability and low insertion loss
  of the connector.

•

  professional polishing process

  high stability|low insertion loss

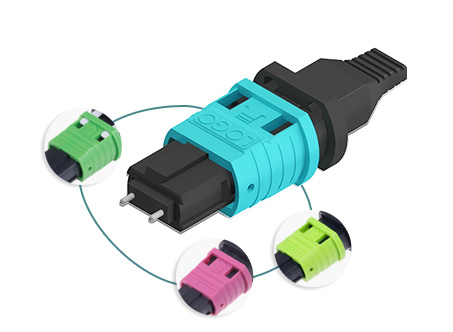

Patented push-pull Tab MPO connectors

Patented push-pull tab design (Utility model patent ,Patent No:ZL 2017 2 1394556.9) provides quick and easy connection, and is also well-suited for high-density, high-traffic applications.

Compliant to International Standards

IEC 61754-7 and GR-1435 complaint; RoHS/REACH and UL94-V0 inflammability grade complaint.

Offer OEM/ODM MPO connectors

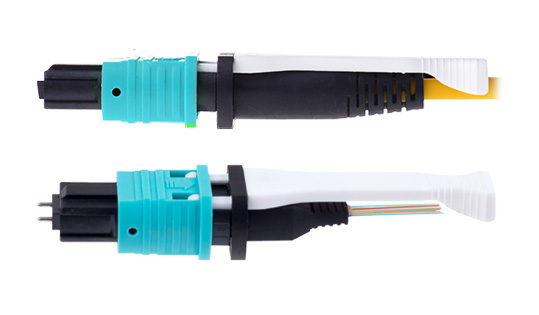

Various MPO connectors to meet your requirements.Applies to 3.6mm round cable and 16C/32C Ribbon fiber.

3.6mm round cable

16C/32C Ribbon fiber

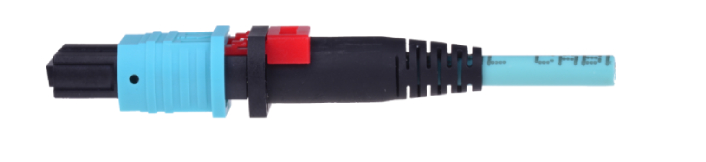

MPO lockable connector Unique lockable design

The MPO lockable connector is assembled with a buckle to be locked on the optical module or adapter to avoid unexpected releasing and reduce the chance of getting dusty on the connector’s surface.

The lockable function effectively avoids unexpected releasing and reduces the chance of getting dusty on the ferrule end face.

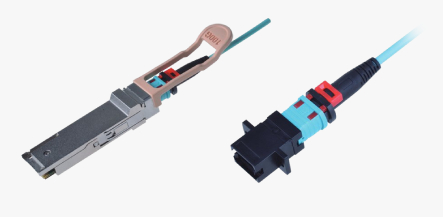

Suitable for optical module and adapter

The connector is assembled with a buckle to be locked on an optical module or adapter which avoids the connector from getting dusty.

Unique designed MPO lock accessory

There is an unique designed buckle on the original MPO connector to be used as an optional accessory. Without using any tool, it can be easily unlocked.

Excellent stability and low insertion loss

The FURUKAWA ferrule imported from Japan and professional polishing process ensure high stability and low insertion loss of the connector.

Compliant to international standards to ensure safe and stable performance

The product meets the design requirements of IEC61754-7 and GR-1435, while conforming to RoHS/REACH and UL94-V0.

UL94-V0GR-1435IEC 61754-7

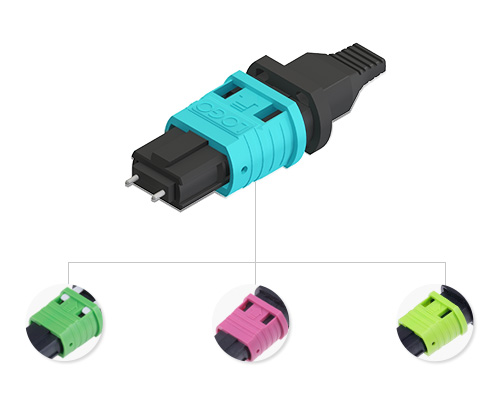

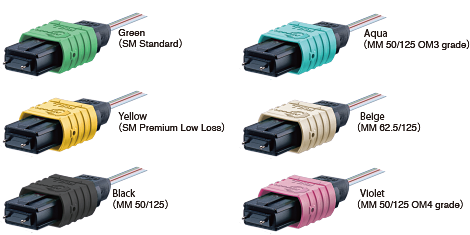

Multiple choices

There are a variety of choices on fiber core numbers, colors and cable types.

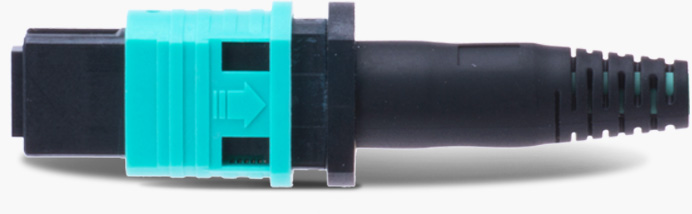

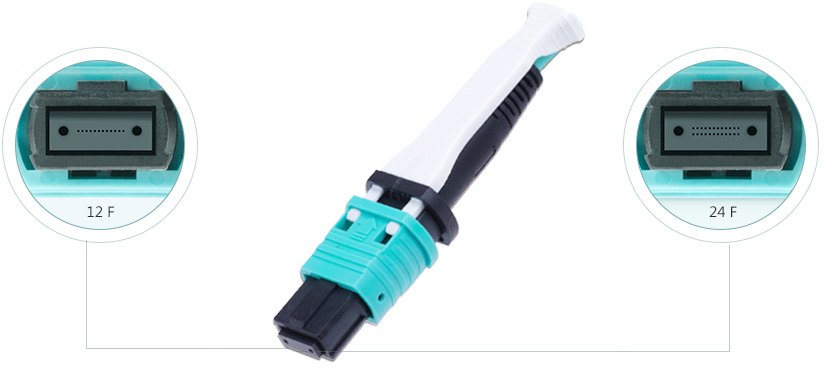

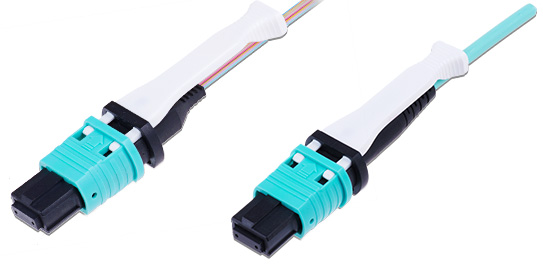

MPO 12C&24C connector Compact Design

MPO connector comes with multifiber applies to high density in data center or telecommunication systems. It depends on the high precision metal guide pin and the high precision ferrule pin hole to ensure the optical alignment. It’s comes with SM,SMLL,MM,MMLL,8F,12F, 24F,regular force spring, high force spring for your choice.

Compact design, up to 24 fiber ribbons，applies to high density in data center or telecommunication systems.

Excellent Stability

The FURUKAWA ferrule imported from Japan and professional polishing process ensure high stability and low insertion loss of the connector.

Patented push-pull Tab

Patented push-pull tab design(Utility model patent ,Patent No:ZL 2017 2 1394556.9) provides quick and easy connection, and is also well-suited for high-density, high-traffic applications.

Compliant to International Standards

IEC 61754-7 and GR-1435 complaint; RoHS/REACH and UL94-V0 inflammability grade complaint.

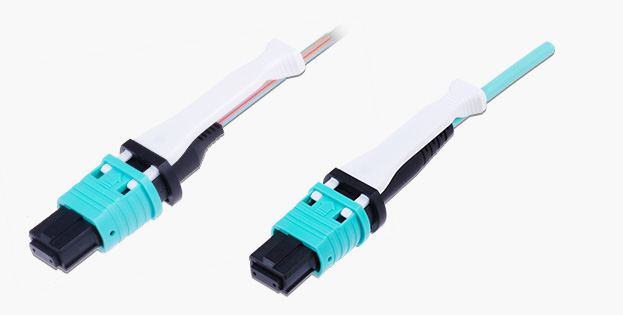

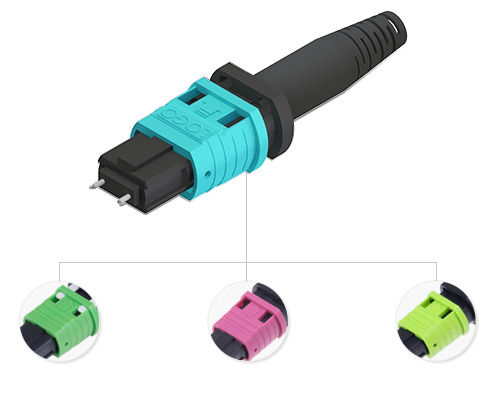

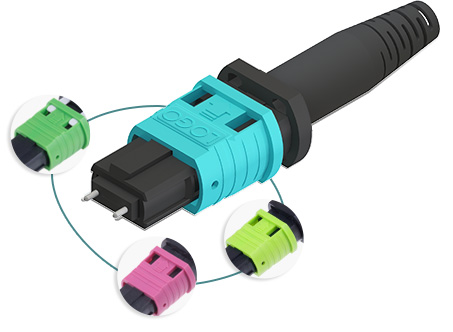

A Variety of Choices

Applies to 3.0/3.6mm round cable and 12C/24C Ribbon fiber.

3.0/3.6mm round cable

12C/24C Ribbon fiber

MPO connectors application

CATV, and Multimedia
Active device interface
Telecommunication networks
Gigabit Ethernet
Interconnection for O/E modules
Data processing networks
Industrial and medical
Premise installations
Optical switch interframe connection
Asynchronous Transmission Mode (ATM)

FEATURES of MPO connector

Low insertion loss and back reflection loss

IEC 61754-7 Compliant

Precision molded MT ferrule

Telcordia GR-1435-CORE compliant

Polishing does not require diamond film

High precision guide pins for exact alignment

Compact design, up to 24 fiber ribbon
