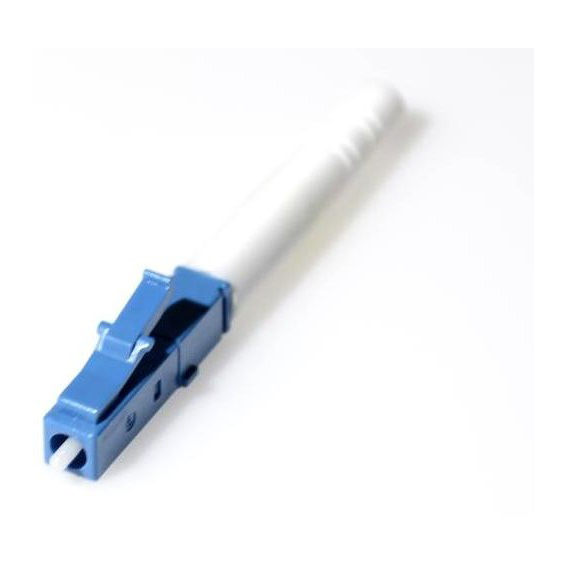

LC/UPC SM Connector

LC/UPC SM Connector

US$0.01

( Order Today, Ship before 10/09/2025 )
  • Description
  • Reviews
  • FAQs
LC/UPC SM Connector is a small form factor connector that uses a 1.25 mm ferrule, half the size of the SC. Otherwise, it’s a standard ceramic ferrule connector, easily terminated with any adhesive. Good performance, highly favored for singlemode.Single Mode fiber optic connectors for LC applications. Each fiber optic connector is functionally tested before shipping and is covered by a lifetime warranty.Product Specification
Adapter TypeLCFiber CountSimplex/Duplex
Fiber ModeSinglemode/MultimodeBoot Size2.0mm/0.9mm/3.0mm
Insertion loss0.20dBReturn loss>55dB (UPC)
≥60dB (APC)

Key Features

Low insertion loss Corrosion resistant body Precision mechanical dimension Meets Telecordia-GR-326-CORE specifications Ultra low back reflection One Piece with pre-domed ceramic ferrule is designed for easy assembly For 3.0mm, 2.0mm jacket or 900um buffer ROHS compliant

Applications

Telecommunication LAN & WAN Broadband CATV Network FTTX

LC/UPC SM Connector

Application field

1.Optical fiber communication systems engineering

2.Fiber optic data communication network

3.Fiber CATV engineering 4.Other optical technology tests

Features

1.The style is diverse, the interface is complete

2.Low insertion loss and added loss

3.Height of attenuation

4.High back loss, small volume, light weight

5.High stability, high reliability Mechanical performance: IEC 874-20.

Specification

Applicable connector type.LC/UPC
Optical fiber typeSM
Test the wavelength1310nm-1550nm
Insertion lossTypical value≤0.15,maximum≤0.30
Return Loss≥50dB
Insert core diameter∮1.25mm
Insert core parameterAperture::125.5+1/-0um,Concentricity:≤1.0um
Durability1000 times plug
Suitable for optical cable diameter∮2.0mm,∮3.0mm,
Working temperature-20℃to +70℃
Storage temperature-40℃to +85℃
