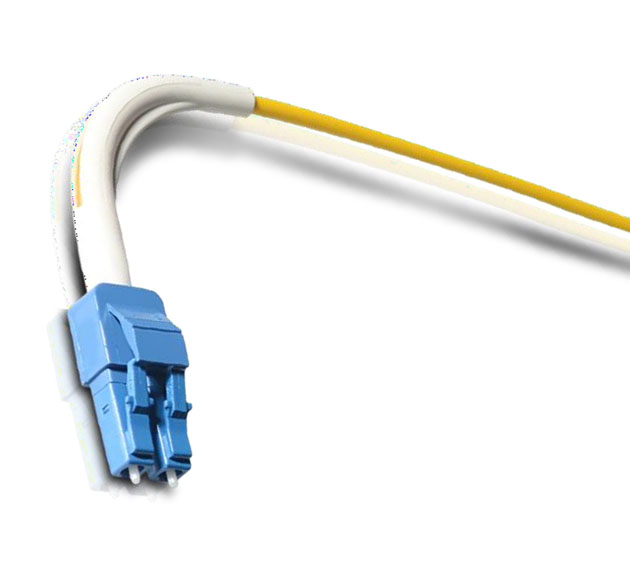

LC Uniboot 90 Degree Bent
LC Uniboot 90 Degree Bent design allows one cable to carry both fibers, reducing cable congestion when routing, and is suitable to be used in high-density fiber patching in data centers which need space saving and reduce cable management troubles like Data Centers,Local Area Networks,High-Density Applications,Interconnects,oss-connects . Reverse-polarity design allows for quick and easy polarity conversion without exposing the fibers or needing any tools.
LC Uniboot 90 Degree BentApplication
- Data Centers
- Local Area Networks
- High-Density Applications
- Interconnects
- oss-connects
specification
- Uniboot with a Single Housing
- Low insertion loss and added loss.
- Height of attenuation
- High back loss, small volume, light
- End-face geometry and quality superior than IEC and Telcordia standards
- LSZH, OFNP, OFNR cable
- Mechanical performance: IEC 61754-20 standard.
- RoHS and REACH materials compliant.
Connector Types
| Type | Reference | Note | |
| LC | IEC 61754-20 | Single mode | UPC: Blue connectors , White boots |
| Multimode | UPC: Grey or Aqua Connectors , White boots | ||

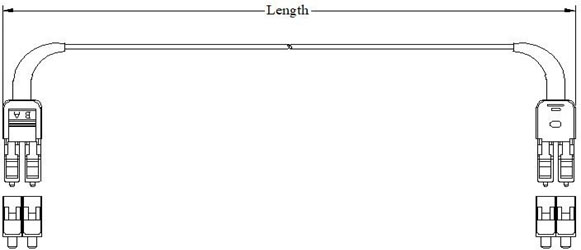

Dimensional Diagrams
1.LC Uniboot (90 Degree Bent) 3.0mm patchcord
LC Uniboot 90 Degree BentPatch cord versions
| Jumper tolerance requirement | |
| Overall length (L) （M） | length of tolerance（CM） |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |

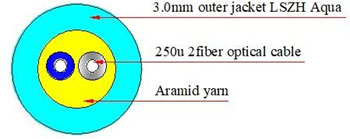

Cable Structure
LC Uniboot 90 Degree BentCable Parameters
| Fiber account |
OD(mm) | Nominal Weight (kg/km) | Max.tensile Strength(N) | Max.Crush Resistance (N/100mm) | Min.Bending Radius(mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| 2 | 3.0±0.15 | 7.5 | 150 | 80 | 500 | 150 | 20D | 10D |
Optical Characteristics
| Item | Parameter | Reference | |
| Single mode | Multimode | ||
| Insertion loss | Typical value≤0.15dB ; Maximum≤0.30 | Typical value≤0.15dB ; Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥ 50dB (UPC) | ≥30dB (UPC) | IEC 61300-3-6 |
End-Face Geometry
| Item | UPC (Ref: IEC 61755-3-1) | APC (Ref: IEC 61755-3-2) |
| Radius of curvature (mm) | 7 to 25 | 5 to 12 |
| Fiber height (nm) | -100 to 100 | -100 to 100 |
| Apex offset (um) | 0 to 50 | 0 to 50 |
| APC angle (°) | / | 8° ±0.2° |
| Key error (°) | / | 0.2° max |
End-Face Qualty (SM)
| Zone | Range (um) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None |
IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
End-Face Qualty (MM)
| Zone | Range (um) | Scratches | Defects | Reference |
| A: Core | 0 to 65 | None | None |
IEC 61300-3-35:2015 |
| B: Cladding | 65 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Mechanical Characteristics
| Test | Conditions | Reference |
| Endurance | 500 matings | IEC 61300-2-2 |
| Vibration | Frequency: 10 to 55Hz, Amplitude: 0.75mm | IEC 61300-2-1 |
| Cable retention | 100N (patch cable); 5N (pigtail) | IEC 61300-2-4 |
| Strength of coupling mechanism | 80N for 2 to 3mm cable | IEC 61300-2-6 |
| Cable torsion | 15N for 2 to 3mm cable | IEC 61300-2-5 |
| Fall | 10 drops, 1m drop height | IEC 61300-2-12 |
| Static lateral load | 1N for 1h (patch cable); 0.2N for 5min (pigtail) | IEC 61300-2-42 |
| Cold | -25°C, 96h duration | IEC 61300-2-17 |
| Dry heat | +70°C, 96h duration | IEC 61300-2-18 |
| Change of temperature | -25°C to +70°C, 12 cycles | IEC 61300-2-22 |
| Humidity | +40°C at 93%, 96h duration | IEC 61300-2-19 |
