SC Fiber Optic Connector

SC Fiber Optic Connector stands for Subscriber Connector. SC connector offers excellent packing density, and its push-pull design resists fiber end face contact damage.SC connector are inexpensive, trouble-free, and robust. SC connectors give precise positioning via their ceramic ferrules. The square, snap-in connector latches with a simple push-pull motion and is keyed. SC optical connector has a 2.5mm ferrule and molded housing for shielding. it has a 1000 mating cycles and have an insertion loss of 0.25 dB.

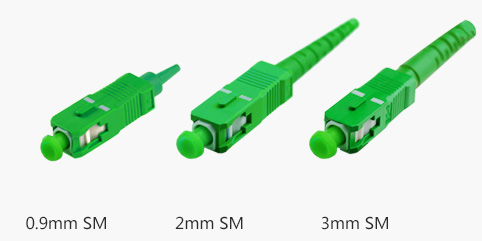

SC Fiber Optic Connector SingleMode Simplex

---

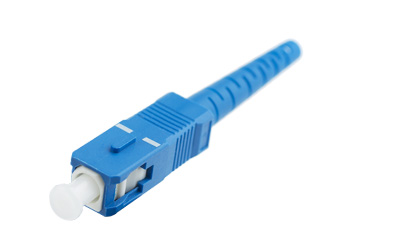

SC Simplex Connector

The SC simplex fiber optic connector has a durable plastic body with a square front profile. Its compact design is ideal for telecommunications closets, premise wiring and other high density applications.

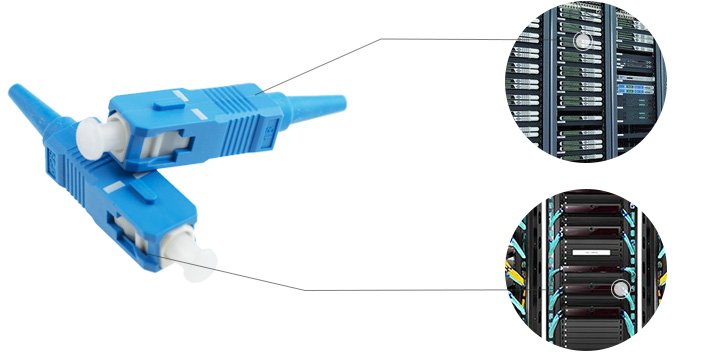

SC Fiber Optic Connector SingleMode Simplex in Network

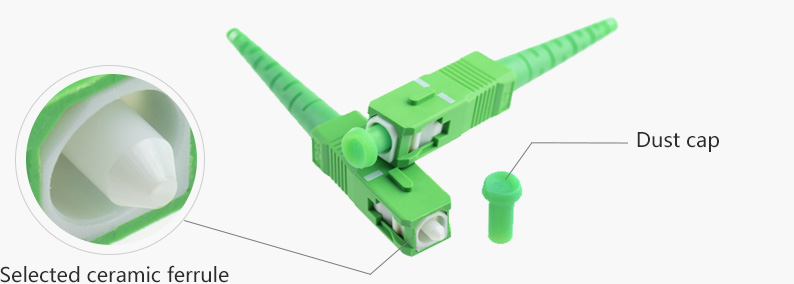

High quality ferrules

SC connectors provide for accurate alignment via the ceramic ferrules and professional polishing technology. Low Insertion Loss(≤0.3dB)， Stable transmission and efficient connection.

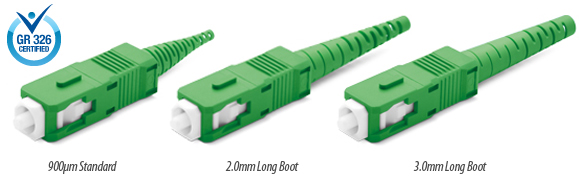

SC Fiber Optic Connector APC SingleMode Simplex in Network

Insertion Loss：≤0.3dB

Insert-pull test：500 time

Compliance with RoHS

Each connector is individually and rigorously tested to ensure the high quality of the products and meet the international quality inspection system.

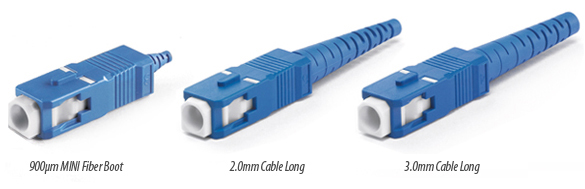

SC-UPC-Singlemode

Various choice

It is available in multimode and singlemode, PC/APC.

SC / APC

SC / PC

Items	Single mode	Multi mode
Insertion Loss	≤0.3dB	≤0.3dB
Return Loss	≥50dB(UPC);≥60dB(APC)	≥30dB
Ceramic ferrule spec	125.5um concentricity deviations:＜1um	127um concentricity deviations:＜3um
Insert-pull test	500 times ＜0.3dB
Operation temperature	-40℃-+85℃
Suitable fiber	PC/APC(9/125um)	PC(50/125um,62.5/125um)

---

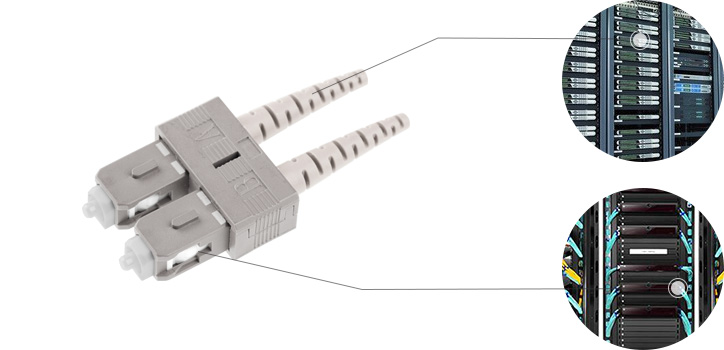

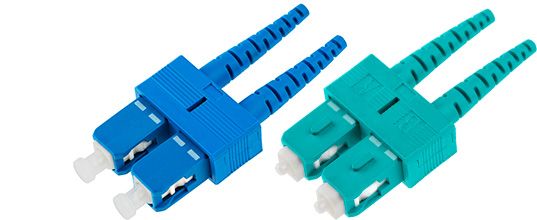

SC Duplex Connector

The SC duplex fiber optic connector has a durable plastic body with a square front profile. Its compact design is ideal for telecommunications closets, premise wiring and other high density applications.

SC Duplex Connector

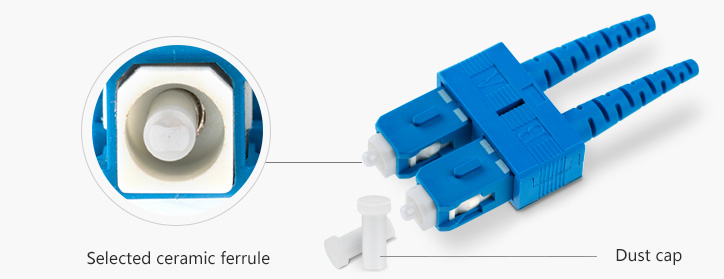

High quality ferrules

SC connectors provide for accurate alignment via the ceramic ferrules and professional polishing technology. Low Insertion Loss≤0.15dB, Stable transmission and efficient connection.

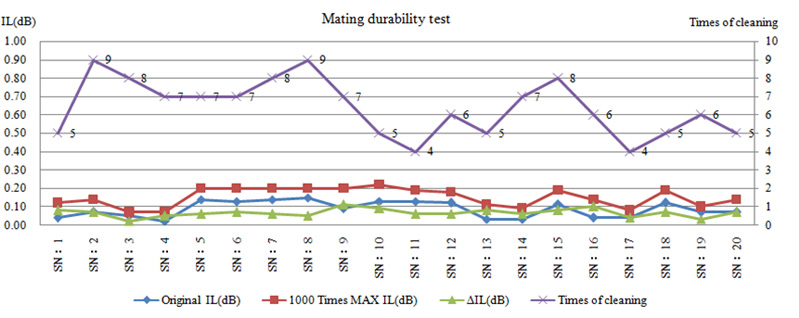

Stable parameter performance

The SC connector meets the working environment of -40-85 °C, with an average of more than 500-1000 insertion and removal tests, with stable performance and reliable quality.

Operating temperature：-40-85℃

Insert-pull test：500-1000 times

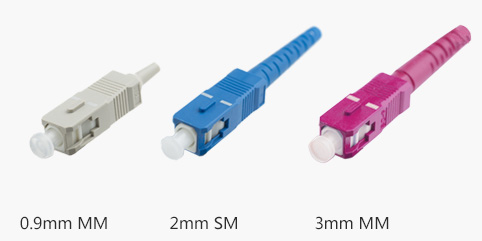

Multiple styles available.

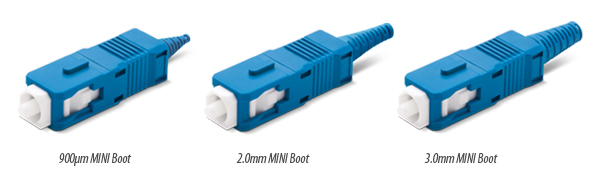

SC duplex fiber optic connectors are available in a variety of colors and boots.

2.0mm Aqua

2.0mm Beige

2.0mm Violet

3.0mm Green

0.9mm Blue

Compliance with international standards

The SC dual-core fiber optic connector can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC61754-4, IEC 61753-1 and other standards.

Item	SC Duplex Optical Fiber Connector
Mode	SM			MM
Suitable fiber	9/125um			50/125um,62.5/125um
Ceramic ferrule spec	125.0-125.5um			126-129um
Ceramic ferrule concentricity	≤1.0um	≤0.5um	≤0.3um	≤3.0um
Insertion loss	≤0.30dB	≤0.20dB	≤0.15dB	≤0.30dB
Return loss	≥50dB(UPC)， ≥60dB(APC)			≥30dB
Insert-pull test	＞500 times，＜0.3dB
Operating temperature	-40℃-+85℃

---

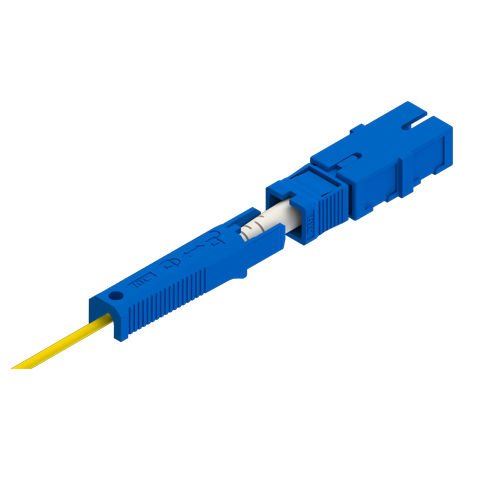

SC Secure Lockable Connector

SC Secure Lockable Connector

Ideal for networks with higher security levels such as military, government and financial; Five different colors/keys available; Can only be removed with matching color key; Applies to 2.0/3.0mm cable; FOCIS-3/ TIA-604-3 and GR326-core compliant; RoHs /REACH and UL94-V0 inflammability grade compliant.

Features:

Ideal for networks with higher security levels such as military, government and financial;

Five different colors/keys available;

Can only be removed with matching color key;

Applies to 2.0/3.0mm cable;

FOCIS-3/ TIA-604-3 and GR326-core reference ;

RoHs /REACH and UL94-V0 inflammability grade compliant;

Compatible with all industry standard SC adapters.

Application:

military network

government network

financial network

Telecom network

Ethernet network

Optical communication equipment

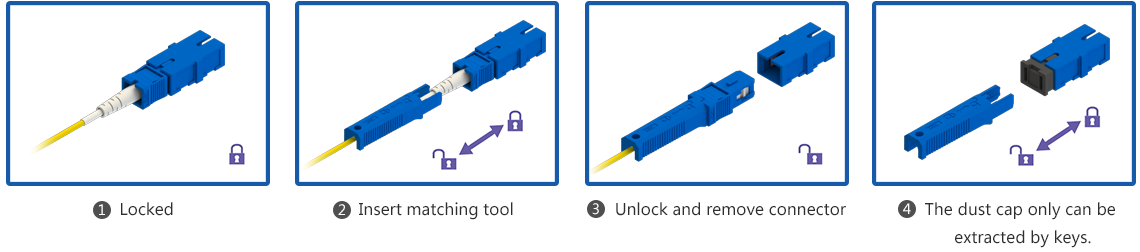

Step：

Items	Single Mode		Multi Mode
Connector Type	UPC	APC	PC
Insertion Loss	≤0.3dB		≤0.3dB
Return Loss	≥50dB(UPC);	≥60dB(APC)	≥30dB
Durability Test	100 times
Operation Temperature	-40℃-+85℃

---

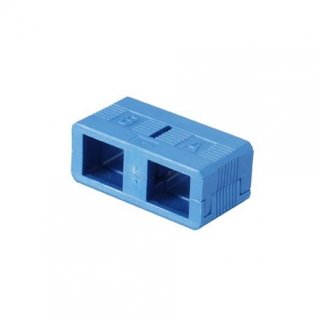

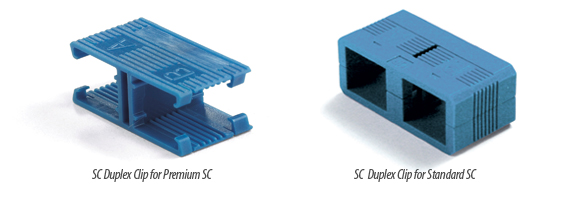

SC Duplex Clip

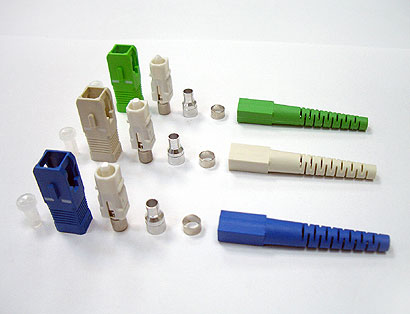

SC Connector Kits

The SC Connector Kit is available for those who prefer to assemble the SC connector from its component parts. Duplex kits come with either vertical or horizontal style housing. Customers may specify between a PVC connector dust cap, or a ferrule dust cap.also offers SC/PC, SC/APC and SC APC Tunable Connectors.

Housing and boots are offered in a variety of standard colors, with custom colors available upon request.

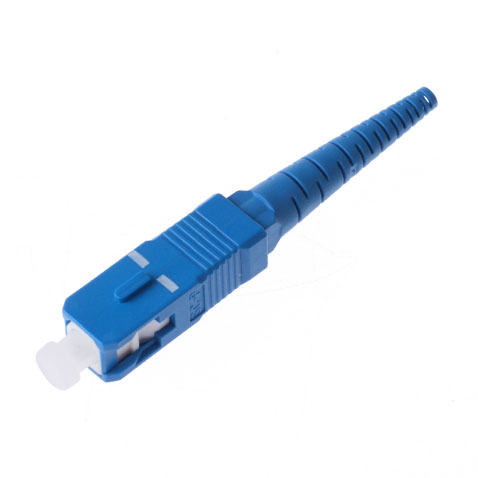

SC UPC Premium Connectors

The Subscription Channel (SC) Connector is known for its locking mechanism which gives an audible click when pushed in or pulled out. This push-pull design prevents rotational misalignment. The SC/PC connector incorporates a Physical Contact (PC) curved polished ferrule end face that greatly reduces backreflection over a ferrule with flat endface.

The SC/PC connector is available in both singlemode and multimode versions, and is fully compatible with NTT-SC hardware. Both singlemode and multimode versions come with a zirconia ceramic ferrule with pre-polished PC profile and convex spherical end. This allows for fast polishing of the fiber and enables the installer to achieve low optical loss* , while ensuring maximum repeatability.

The body is precision molded. Housing and boot are made from UL-rated material. Angled Physical Contact (APC) version is also available for ultra-low back-reflection. an SC Tunable Connector which allows four-position tuning for applications requiring precise fiber alignment.

SC APC Premium Connectors

The Subscription Channel (SC) Connector is known for its locking mechanism which gives an audible click when pushed in or pulled out. This push-pull design prevents rotational misalignment. The SC Angled Physical Contact (APC) connector combines a curved ferrule end face with an 8o angle which virtually eliminates all back reflection even from an unterminated connector.

The SC/PC connector is available in both singlemode and multimode versions, and is fully compatible with NTT-SC/APC hardware. All SC/APC connectors come with a zirconia ceramic ferrule with choice of endface types including standard, step, and cone. These endface types allow for faster polishing, and lower insertion loss and back reflection*, while ensuring maximum repeatability.
The body is precision molded. Housing and boot are made from UL-rated material. offers an SC APC Tunable Connector which allows four-position tuning for applications requiring precise fiber alignment. Physical Contact (PC) version is also available.

Availability of SC connector

SC connector house kits without ferrule are available.
SC/PC and SC/APC are available.
single mode SC connector & multimode SC connector available

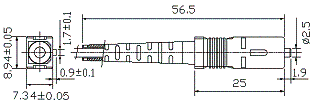

SC connector drawing

SC connector features

Low insertion loss and back reflection loss

Complies with industry standards

Ferrule end surface predomed

UL-rated plastic housing

Boots in a variety of colors

Telcordia style boots

Free-floating ceramic ferrule

SC connector specification

SC connectors SPECIFICATIONS
	Single mode SC connector	Multimode SC connector
Insertion Loss	<0.20dB	<0.25dB
Return Loss	>55 dB (PC) >65 dB (APC)
Durability	<0.20 dB typical change, 1000 matings
Operating Temperature	-40 to + 85C	-40 to + 85C

SC connector application

CATV

Metro

Active device termination

Local Area Networks (LANs)

Data processing networks

Test equipment

Premise installations

Wide Area Networks (WANs)

Telecommunication networks
