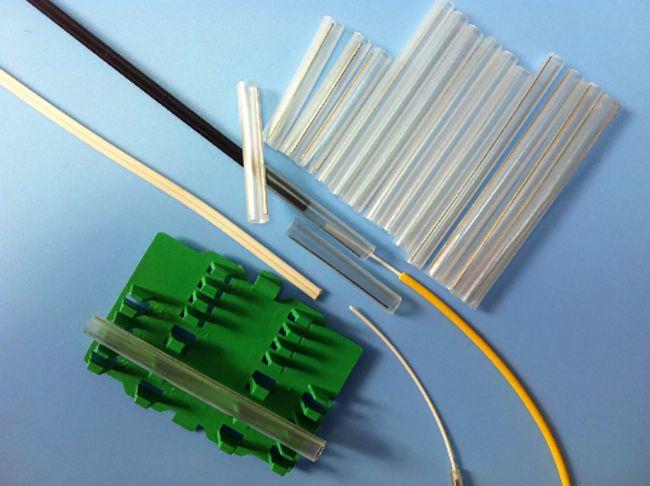

What Is FTTH Drop Cable Fusion Protection Sleeve
Premium quality FNNH drop fiber optic fusion splice protector sleeves, outer diameter after shrinkage 3.2mm , lengths: 60mm,The product tested and positively evaluated by many customers. Stiffness of connection and quickness of assemblyare the basic advantages of this solution.
Overview:

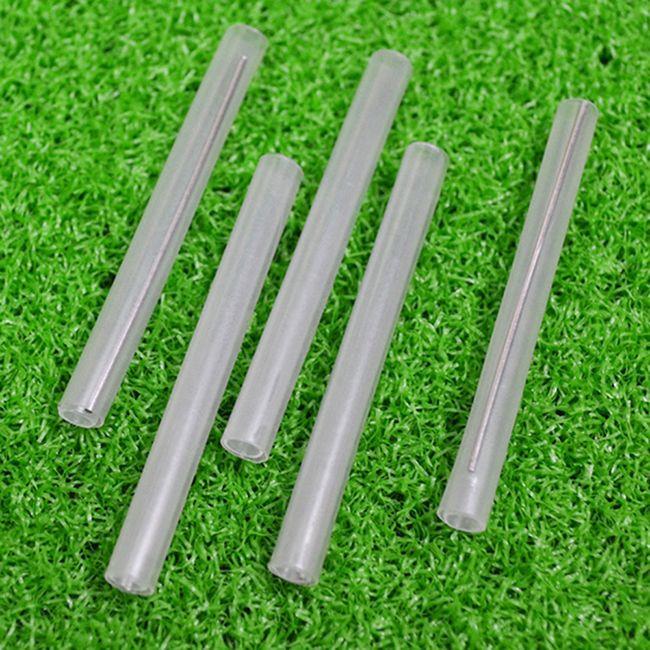

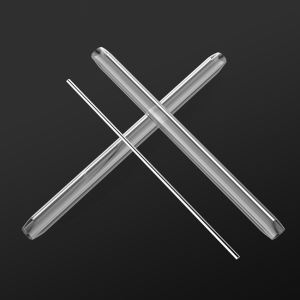

It is consist of high transparent shrink tube and hot melt tube and OD1.0mm stainless steel rod, which is specifically designed for the covered wire fiber optic splice protection element.
Features
No influence on the fiber’s transmission
Airproof configuration keeping the splice point’s good resistance of humidity and temperature
Clear sleeve make it easy to detect splice before shrinkage
Easily use and avoid any damages to the optical fiber during installation
Application for:
Mainly used for covered wire fiber splicing cable connector box, cable terminal box, ODF boxes, broadband network boxes, cable transfer boxes, cable junction box and other communications products.
Technical Parameters:
Type Test Method Data
Working Temperature IEC216 -55 deg -105 deg
Tensile strength ASTM D 2671 18MPa
Elongation at Break ASTM D 2671 700%
Density ISO R1183D 0.94g/cm3
Dielectric Strength IEC243 25KV/mm
Volume Resistance IEC243 1015Ω.cm
Dielectric constant IEC243 2.5
Longitudinal Change ASTM D 2671 ±5%
Eccentricity ASTM D 2671 10%
Application for:
Mainly used for covered wire fiber splicing cable connector box, cable terminal box, ODF boxes, broadband network boxes, cable transfer boxes, cable junction box and other communications products.
