Basic Information
This FTTH Fiber ftth wall outlet 86x86 Faceplate SC LC Optical Socket Panel SP01B is designed to splicing and termination between indoor SC LC fiber optic cable and pigtails. Mainly used for wall mounted type. You can install this Wall Outlet Faceplate with 1 SC Simplex adapter or 1 duplex LC adapters with pigtails.
The indoor 86mm x 86mm type ftth fiber wall outlet employs a compact plug-in design, combines a modern design concept, adopts imported plastic, is of a graceful appearance and applicable for FTTH, FTTO and FTTD, etc., and allows easy use in different installation environments.
The clasp design of the cover has greatly reduced the installation strength. It is very thin and matches with other A86 panels in homes, and also meet the open or concealed cabling for optical cables. Coordinating with FC strip-type optical adaptor, it generates more options in term of fiber interfaces for users, all SC, LC and SC/FC are usable. In addition, the big diameter wrapping post in the box protects radically in an omnibearing way the optical fiber in the box.
Specification
| Suitable Adapters | SC LC ftth wall outlet |
| Material | With fire-proof ABS plastic |
| Weight | 40g |
| Available Cable | Indoor Drop Cable |
| Outlet | 2 Port |
| Installation way | Wall Mount |
| Dimensions | 86mm*86mm*22mm |
| Applications | Wall Mount Distribution Use |
| Compatible Riser Cable Types | Yes |
| Connector Capacity | 1 pcs SC or 2 pcs LC connectors |
| Connector Type | SC LC |
| Drop Cable Connection | Yes |
| Includes Splitters | No |
| Indoor Outdoor | Indoor Cable |
| Location | Wall Mount Usually |
| Location of Use | FTTH FTTB |
| Lock Compatible | Button |
| Number of Terminal Drops | 1 or 2 Cables |
| Number of Trays | No |
| Product Type | Wall Mount Termination Box |
| Solution for | Wall Mount Cabling |
| Splice Capacity | 1 fibers |
| Splitter Capability | Yes |
| Trademark | sfiberoptic or Customized |
| Lead Time | 5 days for 100pcs, 10 days for 800pcs |
| MOQ | 100pcs |
Image Details

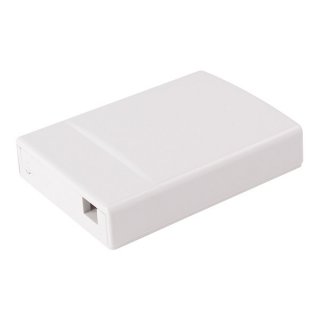

SC LC Mini Fiber Access Termination Box Fiber Optic Wall Outlet Faceplate Socket Panel Enclosure

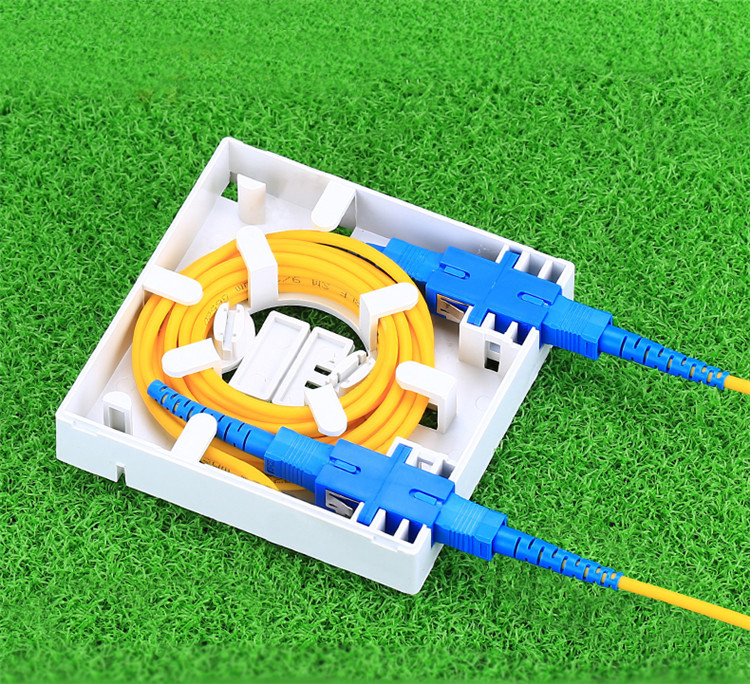

SC LC Mini Fiber Access Termination Box Fiber Optic Wall Outlet Faceplate Socket Panel Enclosure

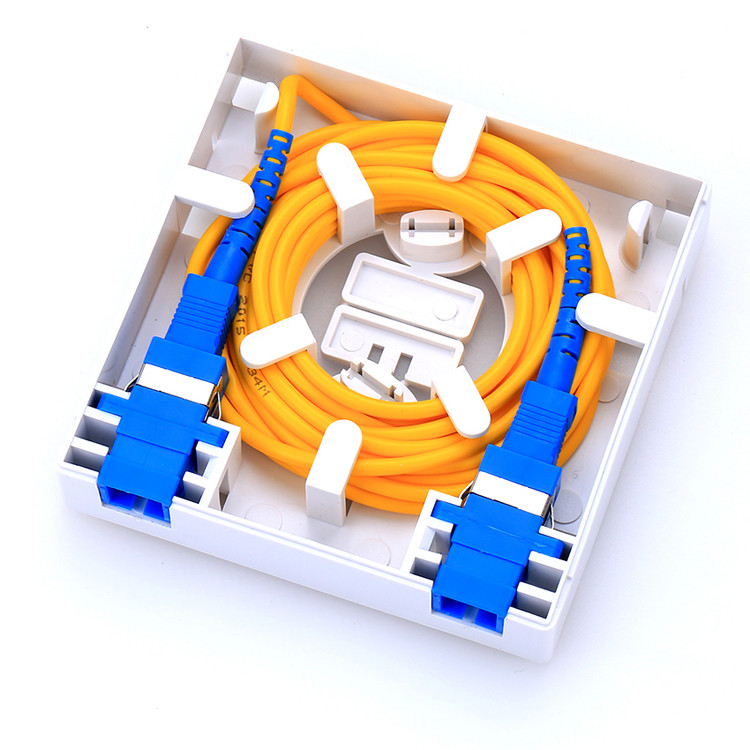

SC LC Mini Fiber Access Termination Box Fiber Optic Wall Outlet Faceplate Socket Panel Enclosure

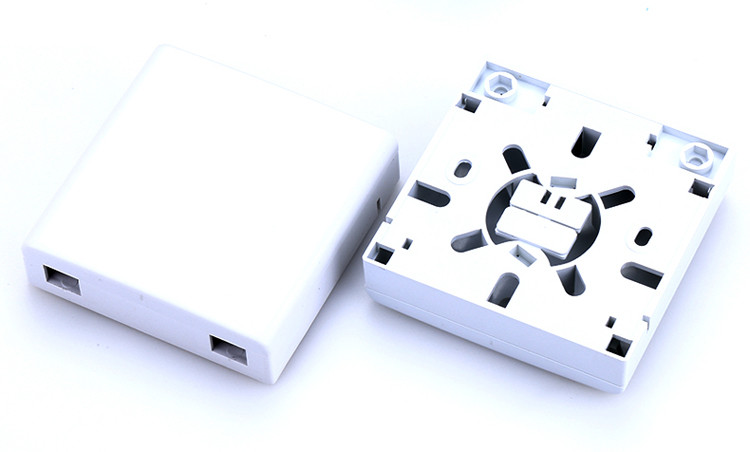

SC LC Mini Fiber Access Termination Box Fiber Optic Wall Outlet Faceplate Socket Panel Enclosure

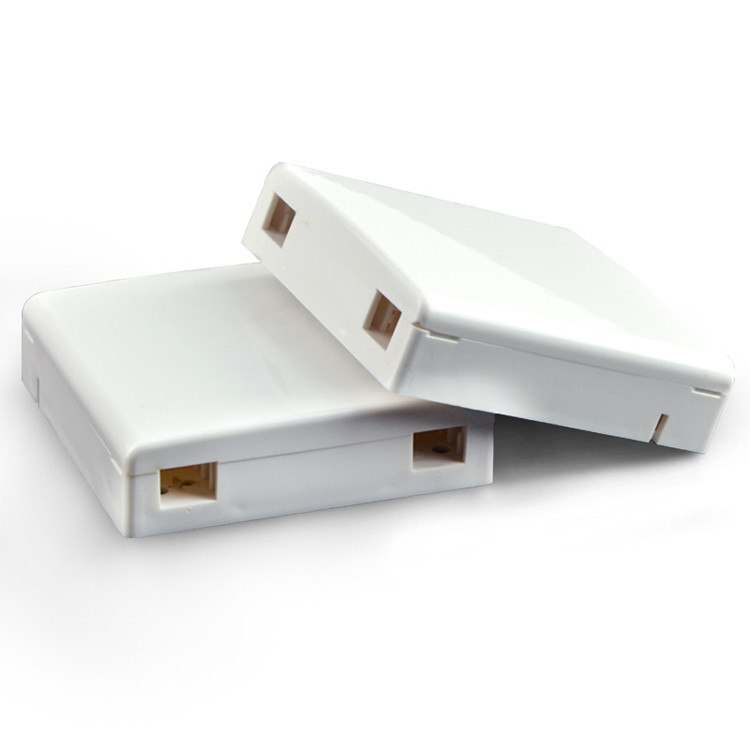

SC LC Mini Fiber Access Termination Box Fiber Optic Wall Outlet Faceplate Socket Panel Enclosure

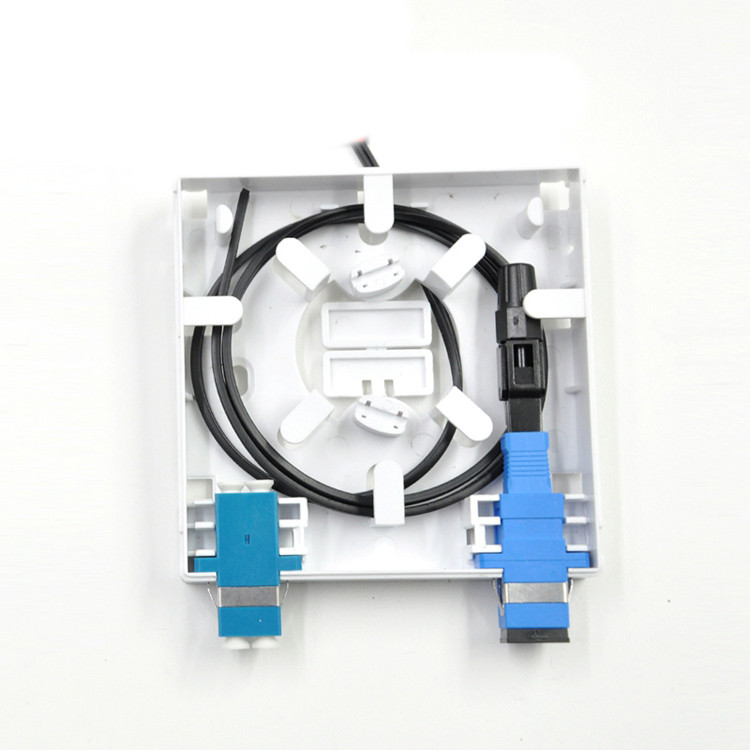

SC LC Mini Fiber Access Termination Box Fiber Optic Wall Outlet Faceplate Socket Panel Enclosure
FAQs
What items are included in this SC LC FC Fiber Wall Outlet Faceplate Socket Panel SP01B

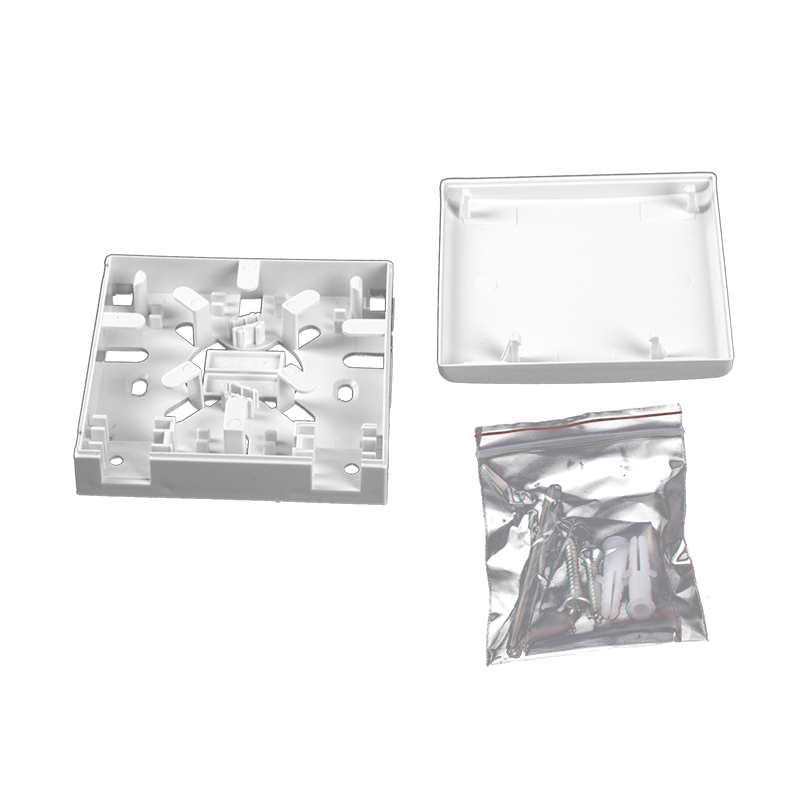

A main parts (cover and base), 2 screws and 2 pcs heat shrinkable sleeves.
What fiber optic pigtails can be installed inside this fiber optic face plate
1pcs 0.9mm or 2.0mm fiber pigtails 0.5m to 1.5m long fiber pigtail is workable.
What fiber optic adapter can be installed inside this fiber optic face plate
usually it is used with SC/UPC or SC/APC fiber adapter
