What is HDMI Over Cat5/6 Extender transmit 1080p with Loop Out and USB 2.0 KVM
The HDMI Over Cat5/6 Extender transmit 1080p with Loop Out and USB 2.0 KVM of HDMI signals long distances over a single CAT5/5e/6 cable, up to 150meters, it supports high resolution up to 1080P, HDMI loop out. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
Long range transmission: up to 150m/492ft over a single CAT6 cable;
Video resolution: up to 1920*[email protected];
Support USB/Keyboard KVM function for remote control
HDMI loop out function: The transmitter with one HDMI local loop out;

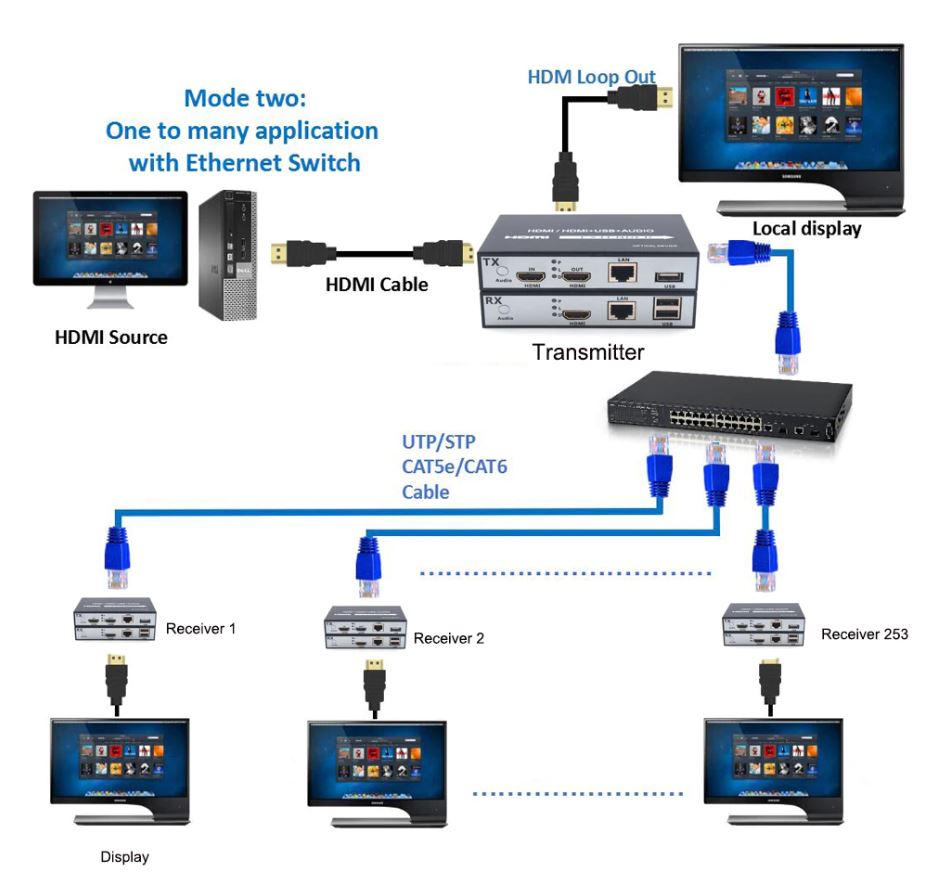

Support daisy chain: one TX to multiple RX(Max: 253pcs RX) application with Ethernet switch/Router;
IEEE-568B: standard 802.3 Ethernet 10/ 100/ 1000Mbps;
Built-in automatic adjustment system: make the image smooth, clear and stable;
Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc; plug and play
Simple to install, plug and play
Specification:
Video:
Standards———-HDMI 1.3; HDCP 1.2
Resolution ——[email protected] max.
Connector—–HDMI-A
Network cable:
Interface—–RJ45
Transmission distance——–CAT5:100 meters,CAT5e:120 meters,CAT6:150 meters
Other:
Power supply—–AC100-240V, DC 5V/2A
Temperature——-Operating: -5℃ - +70℃
Humidity——-Operating: 5% - 90%
Dimension——-127*90*25mm
Warranty——–one year free warranty
Package:
1x HDMI extender transmitter
1 x HDMI extender receiver
2 x Power supply adapter (US/EU/UK/AU standard is available)
1 x User manual

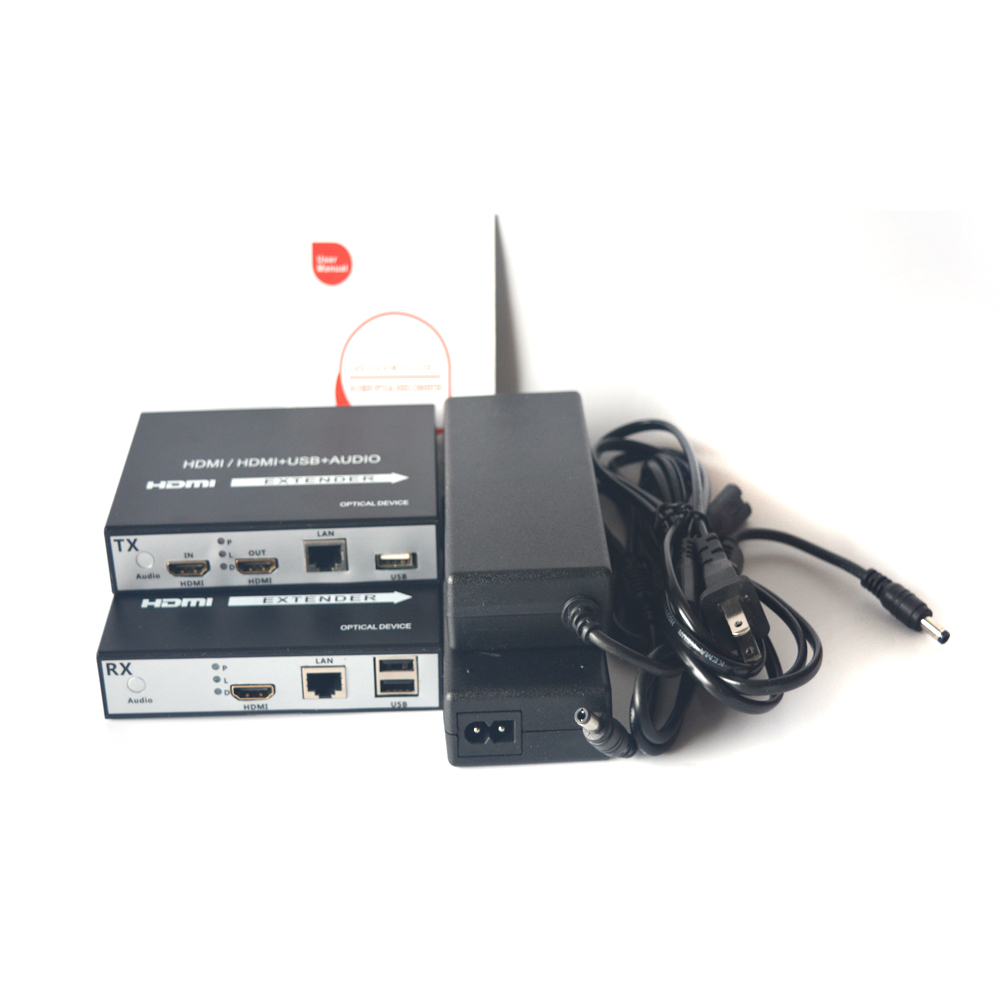

HDMI Over Cat5/6 Extender transmit 1080p with Loop Out and USB 2.0 KVM pack

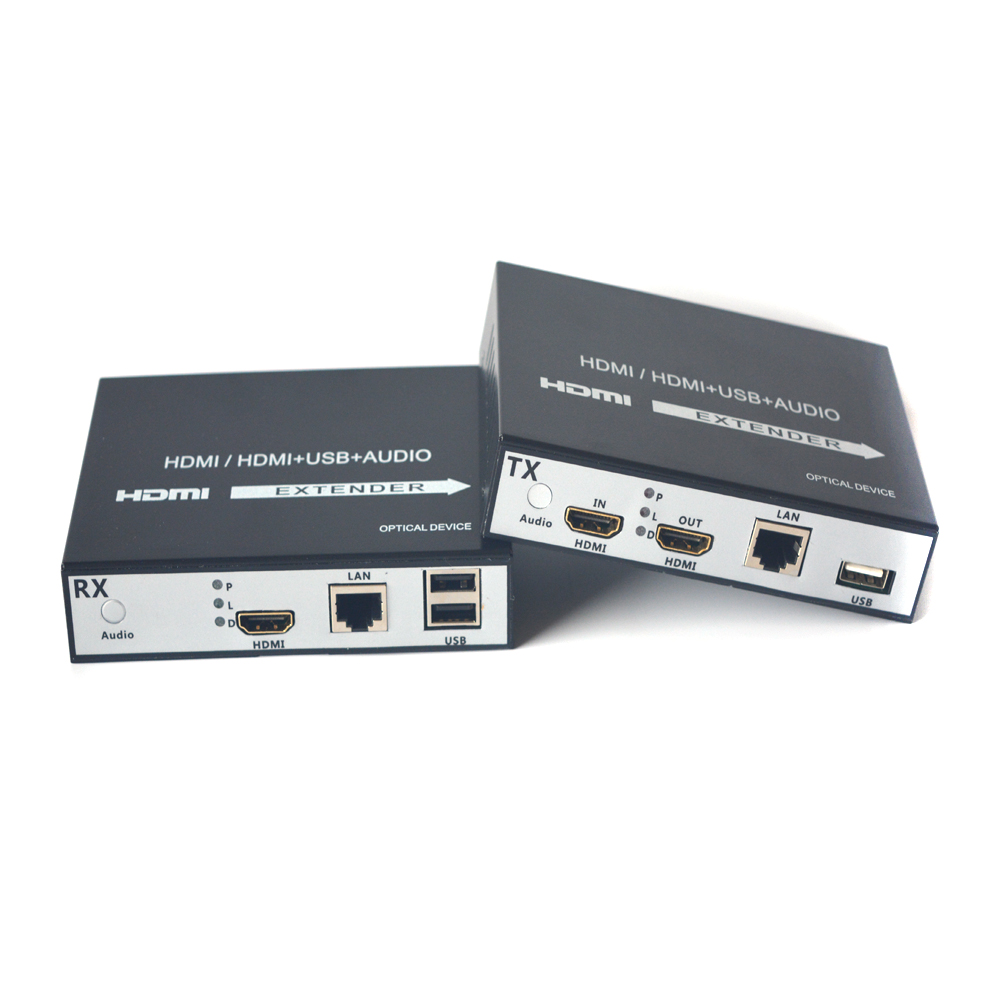

HDMI Over Cat5/6 Extender transmit 1080p with Loop Out and USB 2.0 KVM back earth

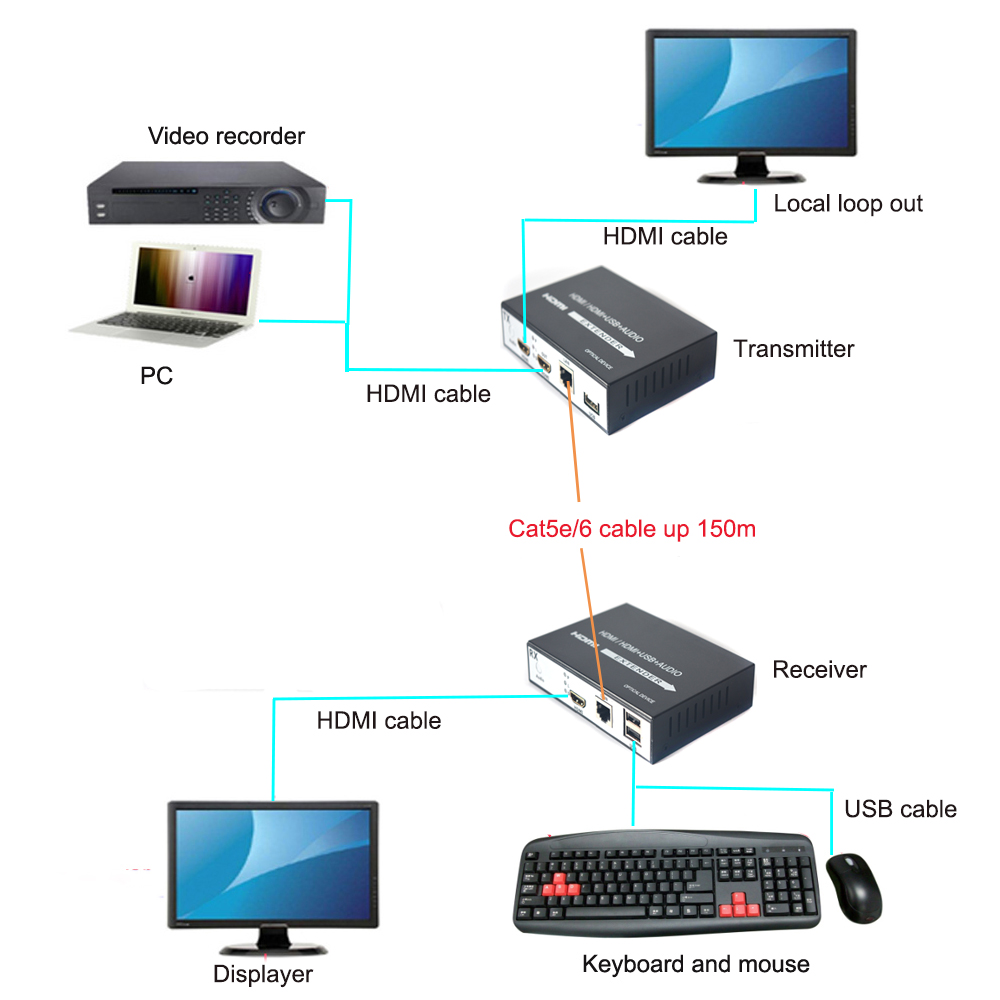

HDMI Over Cat5/6 Extender transmit 1080p with Loop Out and USB 2.0 KVM Diagram 1
