Huawei SFP XG-PON1 ONU-N1&N2a

Huawei SFP XG-PON1 ONU-N1&N2a Product Overview

Huawei SFP XG-PON1 ONU-N1&N2a employs a 1577nm CW mode downlink ADP/TIA receiver operating at 9.95328Gb/s and a 1270nm DFB burst mode uplink transmit-ter operating at 2.48832Gb/s. this module is designed to be backward compatible with legacy G PON systems.

The transceiver requires a single 3.3V power supply.

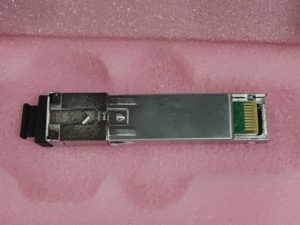

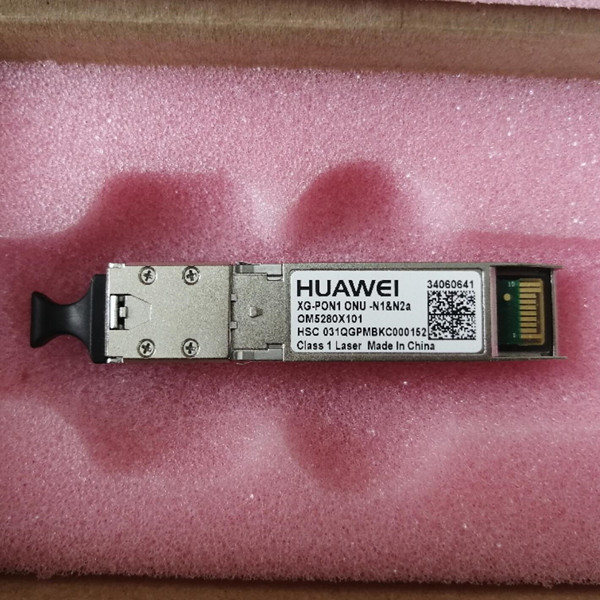

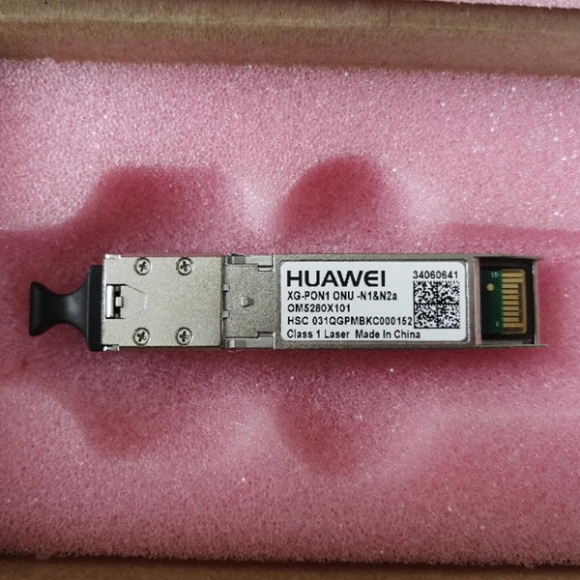

SFP XG-PON1 ONU-N1&N2a Product Picture

Specification

Feature

• Dual Wavelength Single Fiber
• Internal WDM Filter
• Bidirectional Transceiver
• 2x10 SFP+ Die Cast Housing
• SC Optical Receptacle
• Single 3.3V DC Input Voltage
• Downlink CW Mode Receiver
• 95328Gb/s Data Rate
• 1577nm APD/TIA
• LVCML AC Coupled Signal Output
• LVTTL Rx_LOS
• Uplink Burst Mode Transmitter
• 48832Gb/s Data Rate

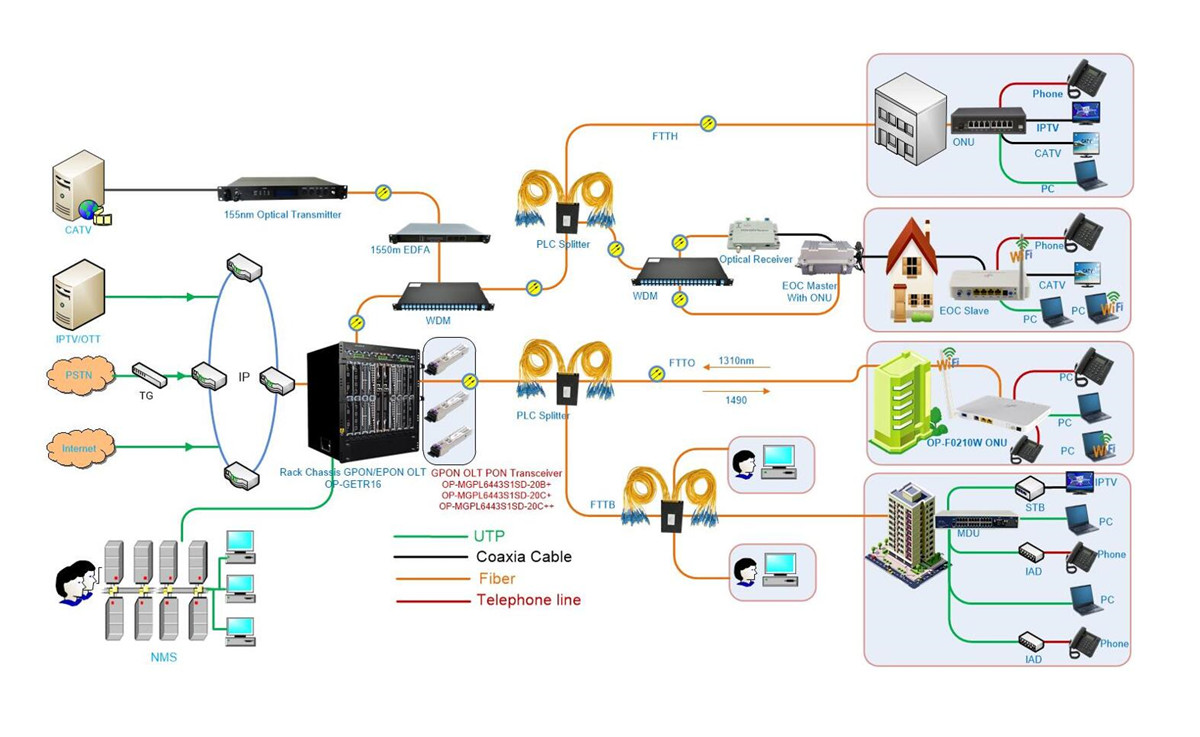

SFP XG-PON1 ONU-N1&N2a Product Application

The small form-factor pluggable (SFP) is a compact, hot-pluggable network interface module used for both telecommunication and data communications applications. An SFP interface on networking hardware is a modular slot for a media-specific transceiver in order to connect a fiber-optic cable or sometimes a copper cable.The advantage of using SFPs compared to fixed interfaces (e.g. modular connectors in Ethernet switches) is that individual ports can be equipped with any suitable type of transceiver as needed.

The form factor and electrical interface are specified by a multi-source agreement (MSA) under the auspices of the Small Form Factor Committee.The SFP replaced the larger GBIC in most applications, and has been referred to as a Mini-GBIC by some vendors.

SFP transceivers exist supporting synchronous optical networking (SONET), Gigabit Ethernet, Fibre Channel, PON, and other communications standards. At introduction, typical speeds were 1 Gbit/s for Ethernet SFPs and up to 4 Gbit/s for Fibre Channel SFP modules.In 2006, SFP+ specification brought speeds up to 10 Gbit/s and the SFP28 iteration is designed for speeds of 25 Gbit/s.

A slightly larger sibling is the four-lane Quad Small Form-factor Pluggable (QSFP). The additional lanes allow for speeds 4 times their corresponding SFP. In 2014, the QSFP28 variant was published allowing speeds up to 100 Gbit/s.In 2019, the closely related QSFP56 was standardized doubling the top speeds to 200 Gbit/s with products already selling from major vendors.There are inexpensive adapters allowing SFP transceivers to be placed in a QSFP port.

Both a SFP-DD,which allows for 100 Gbit/s over two lanes, as well as a QSFP-DD[10] specifications, which allows for 400 Gbit/s over eight lanes, have been published. These use a form factor which is backward compatible to their respective predecessors. An alternative competing solution, the OSFP (Octal Small Format Pluggable) transceiver is also intended for 400 Gbit/s fiber optic links between network equipment via 8 x 50 Gbit/s electrical data lanes.It is slightly larger version than the QSFP formfactor which is capable of handling larger power outputs. The OSFP standard was initially announced on November 15, 2016.Its proponents say a low cost adapter will allow for QSFP module compatibility.
