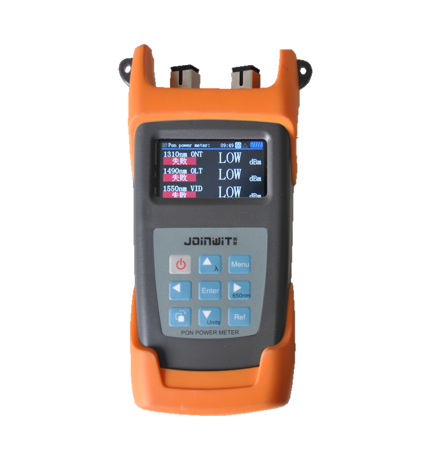

JW3213N PON Optical Power Meter
  • JW3213N PON Optical Power Meter
  • JW3213N PON Optical Power Meter

JW3213N PON Optical Power Meter


( Order Today, Ship before 09/18/2025 )
  • Description
  • Reviews
  • FAQs

What Is JW3213N PON Optical Power Meter price and specification

Features：


  • TFT color screen
  • 10
    minutes Auto-off function can be activated or deactivated, date and time
    setting.
  • Optional
    Chinese/English display.
  • Can test the three wavelengths of 1310, 1490 and 1550nm
    in PON system simultaneously
  • Used in Burst mode measurement of 1310nm upstream.
  • The instrument can set the measuring threshold and calibration
    wavelength
  • Support VFL function
  • Support Optical Power Meter test mode
  • Support for simultaneous measurement and display of experimental voice, data and video signals on the BPON/EPON/GPON
    architecture.

Technical Specifications


MeasurementRange(dBm)


1310 upstream


1490 downstream


1550 downstream


+10--35


+12--40


+25--40


Pass Zone(nm)

1310±50

1490±15

1550±10


Isolation 1310nm(dB)


/


40


40


Isolation 1490nm(dB)

40

/

40


Isolation 1550nm(dB)


40


40


/


Connatural uncertainty(dB)

≤0.5

　

　


wavelength calibration(nm)


1310/1490/1550/1625


Linearity(dB)

0.01


Insertion Loss(dB)


≤1.5


Display

TFT color screen

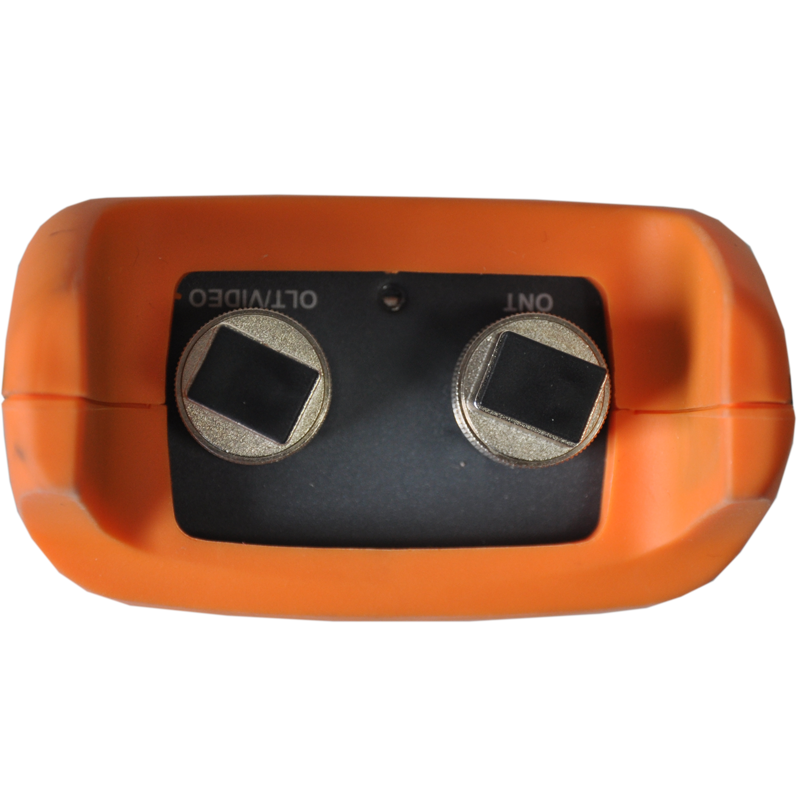

Optical Connector


FC/SC/ST Interchangeable/2.5 universal adapter


Data storage

1000


Power Supply


lithium battery/3pc1.5V battery


Battery Operation time (h)

≥6
