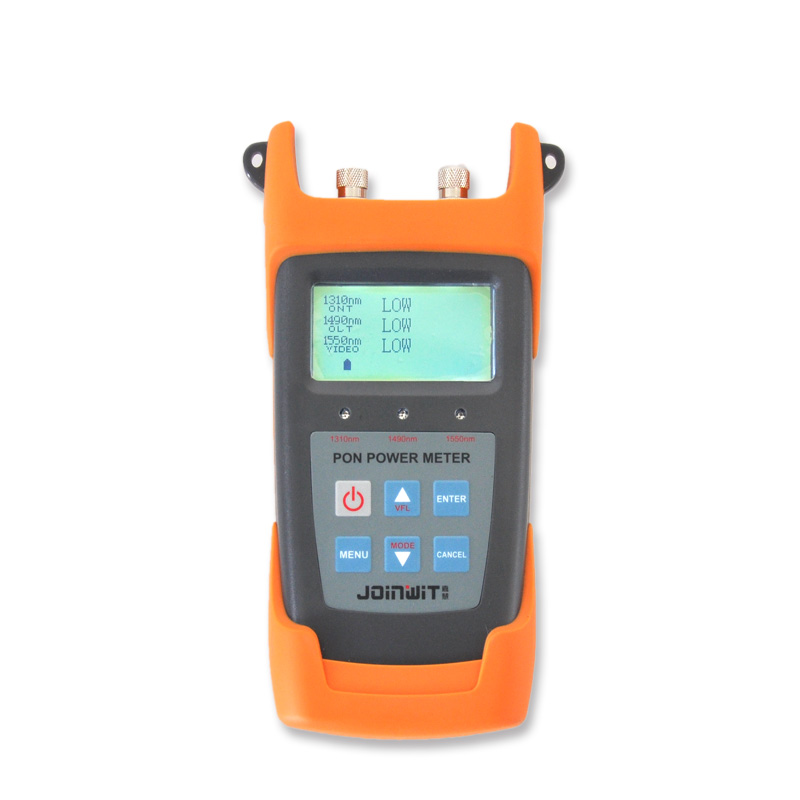

JW3213 PON Optical Power Meter


( Order Today, Ship before 09/18/2025 )
  • Description
  • Reviews
  • FAQs

What Is JW3213 PON Optical Power Meter price and specification

Features

  • It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
  • Providing simultaneous measurement for all three wavelengths on thefiber (1490nm, 1550nm,1310nm )
  • Used in Burst mode measurement of 1310nm upstream.
  • Use the software connect with PC, setting the threshold, data transfer,and calibration the wavelength.
  • Can support Optical power meter function
  • Can support VFL function
  • Lithium battery, AA alkaline, AC adapter, NI-MH battery for power supply

Specifications

PON Optical Power Meter module:

JW3213

JW3213A

JW3213AV

JW3213 AP

1310 upstream measurement

Pass
Zone(nm)

1260nm-1360nm

MeasurementRange(dBm)


-35dBm-+10dBm

Output
power(max)

15dBm

[email protected]/1550(dB)


40dB

Burst mode
measurement error


1490 downstream measurement

Pass
Zone(nm)

1470nm-1505nm

MeasurementRange(dBm)


-35dBm-+10dBm

Output power(max)

15dBm

[email protected]/1550(dB)


40dB

1550 downstream measurement

Pass Zone(nm)


1535nm-1570nm

MeasurementRange(dBm)

-35dBm-+10dBm

Output power(max)


15dBm

[email protected](1310/1490nm)

40dB

Measurement Accuracy

Connatural
uncertainty(dB)

±0.5dB

Linearity(dB)


±0.1dB

Passing
through insertion Loss(dB)


General Information

Detector Type

InGaAs

Optical
Connector


FC/SC/ST
Interchangeable/2.5 universal adapter

Fiber Type

SM 9/125um

Measurement Unit
