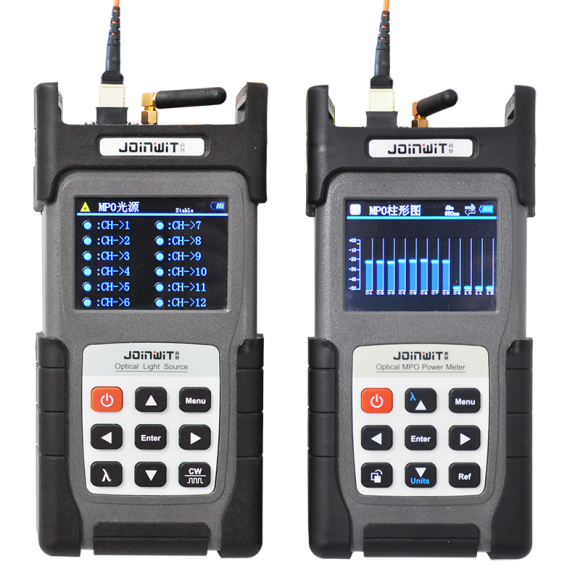

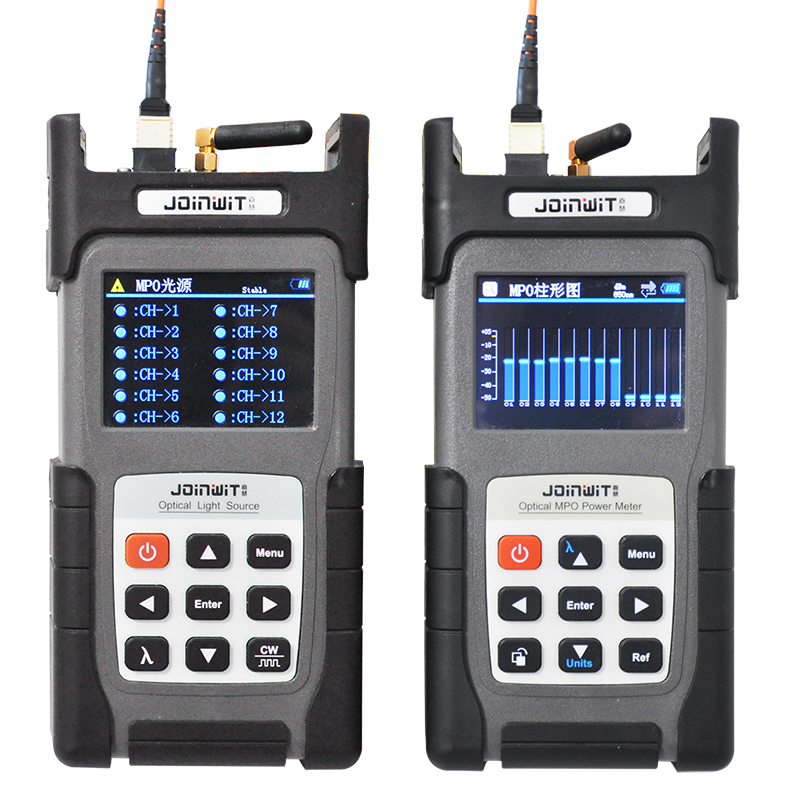

What Is MPO Fiber Tester JW3124 OLS & 3224 OPM price and specification
Features:
- 12, 24, customize channel number
- High resolution and colorful display
- 100 data records
- If five minutes no-operation, the screen will automatically adjust backlight and enters energy-saving mode
- One key switching of four function interfaces (single-channel power, 12-channel power meter MPO line sequence test, histogram interface)
- USB interface can be used to directly copy data to the computer .
- Users can customize the threshold for testing
- Built-in 3500 mAh large-capacity lithium battery that can be used more than 10 hours
- User-friendly – Computer interaction interface and easy to operate
Specifications
3224 MPO Optical Power Meter Specifications:
Detector | InGaAs |
Wavelength Range | 850-1700nm |
Calibration Wavelength | 850/1300or1310/1550nm |
Optical Power Meter Range | +3--50 dBm |
Insertion Loss Accuracy | |
Resolution | 0.01dB |
IL accuracy | ± 0.1dB |
Channel | 12 |
Linearity | ±0.2dB |
Connector | USB |
Interface Type | SM/MM |
Dimension | 20.5*11.5*5.5cm |
Weight | 0.3kg |
3124 MPO Optical Light Source Specifications:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* Delivery Time. |
