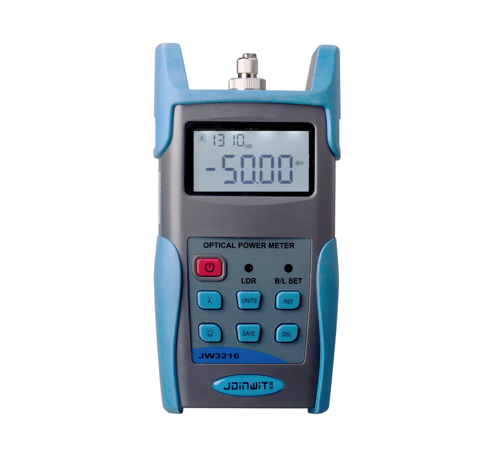

What Is JW3216 Handheld Optical Power Meter price and specification
Features- Wave ID-Automatic
wavelength identification and switching (when used with JW3116 handheld light
source) - Frequency
ID/Tone detection—Automatic frequency identification - Intelligent
backlight control (light intensity can be adjusted properly according to ambient
light, which greatly reduced power consumption) - Data
storage function, up to 1000 test records - USB
communication port for saved testing records download - Reference
power level can be set up and stored - User self-calibration
function - Auto-off
function can be activated or deactivated. - AA alkaline
and AC adapter for power supply - Low battery
indication
Specifications
Model | JW3216A | JW3216C |
Calibrated（nm）wavelength | 850, 1300,1310,1490,1550,1625 | |
Detector type | InGaAs | |
Measurement Range（dBm） | -70-+6 | -50-+26 |
Uncertainty (dB) | ±0.15（3.5%） | |
linearity (dB) | ±0.02 | |
Display resolution(dB) | 0.01 | |
Frequency ID（Hz） | 270，330，1K，2K | |
Wave ID（nm） | 1310，1490，1550，1625 | |
Date storage capacity | 1000 | |
Communication Port | USB | |
Optical Connector type | FC,SC,ST interchangeable | |
Alkaline battery | 3*AA，1.5V | |
Power Supply Adaptor(V) | 8.4 | |
Battery Operating time (h) | 200 | |
Operation Temperature(℃) | -10-+60 | |
Storage Temperature(℃) | -25-+70 | |
Dimension | 23.5*16*8cm | |
Weight | 0.75kg | |
