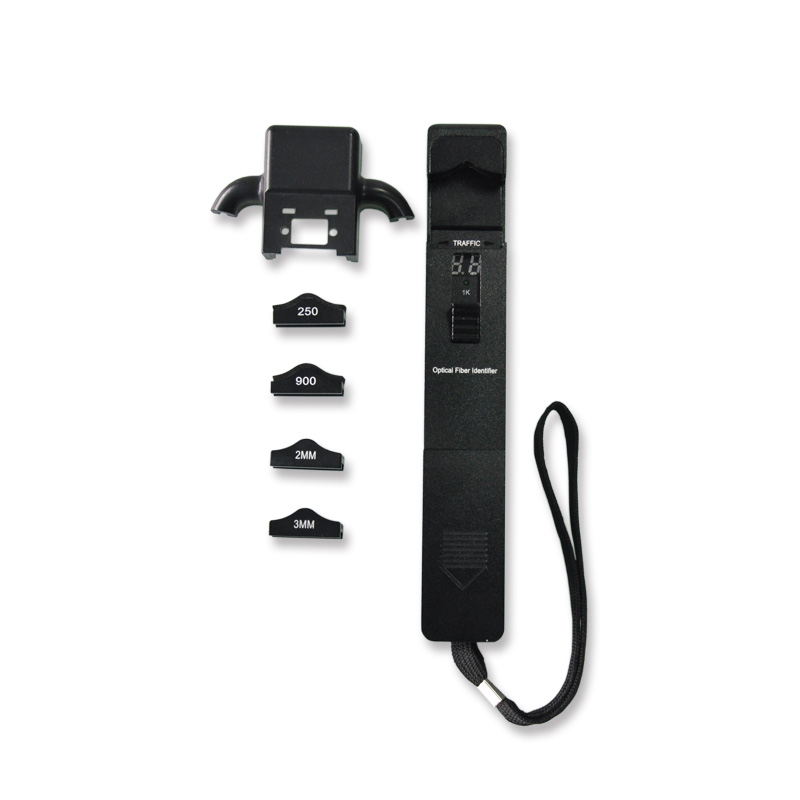

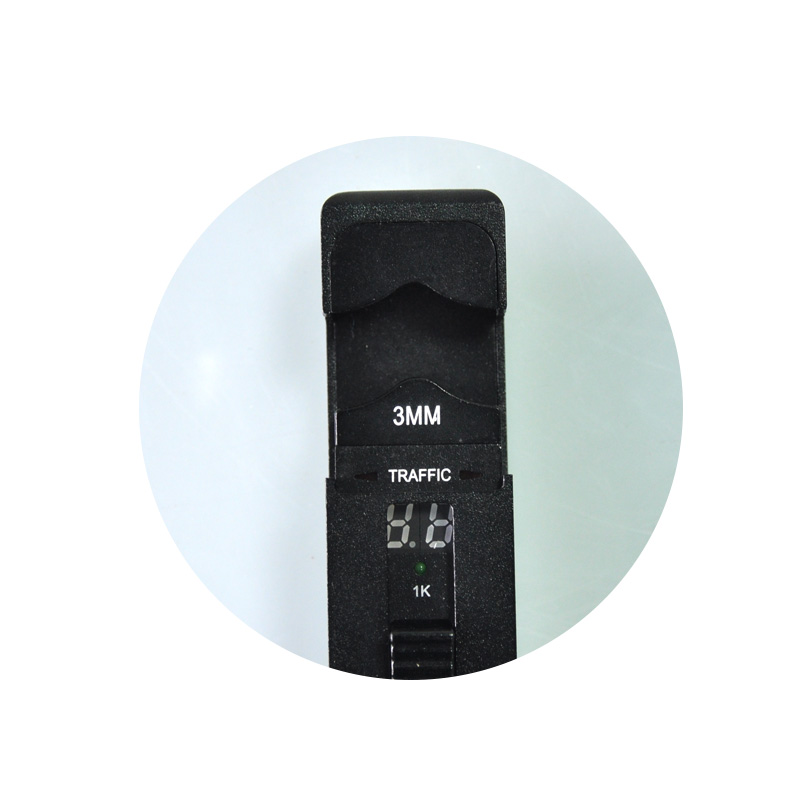

JW3306B Handheld Optical Fiber Identifier
  • JW3306B Handheld Optical Fiber Identifier
  • JW3306B Handheld Optical Fiber Identifier

JW3306B Handheld Optical Fiber Identifier


( Order Today, Ship before 09/18/2025 )
  • Description
  • Reviews
  • FAQs

What Is JW3306B Handheld Optical Fiber Identifier price and specification


Features

  • Easy-to-use with “ONE KEY” operation.
  • Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
  • Displays the relative core power
  • More accurate test with Sunshade
  • Easy-to-replace adaptors
  • Durable metal housing and quality construction
  • Lower power indication

Specifications


Type


JW3306B


Identified
Wavelength Range


800-1700 nm


Identified
Signal Type


CW,
270Hz±5%,1kHz±5%,2kHz±5%


Detector
Type


1mm InGaAs 2pcs


Adapter
Type


0.25
(Applicable for Bare Fiber), 0.9 (Applicable for 0.9 Cable
)


2.0 (Applicable for 2.0 Cable ), 3.0 (Applicable for 3.0 Cable )


Signal
Direction


Left &
Right LED


Singe
Direction Test Range


(dBm,
CW/0.9mm bare fiber)


-46-10(1310nm)


-50-10(1550nm)


Signal
Power Test Range


(dBm,
CW/0.9mm bare fiber)


-50-+10


Signal
Frequency Display (Hz)


270, 1k,
2k


Frequency
Test Range


(dBm, Average
Value)


0.9, 2.0, 3.0


-30-0
(270Hz,1KHz)


-25-0
(2KHz)



0.25


-25-0 (270Hz,1KHz)


-20-0
(2KHz)


Insertion
Loss(dB, Typical Value)


0.8 (1310nm)


2.5
(1550nm)


Alkaline
Battery(V)


9


Operating
Temperature(℃)


-10-+60
