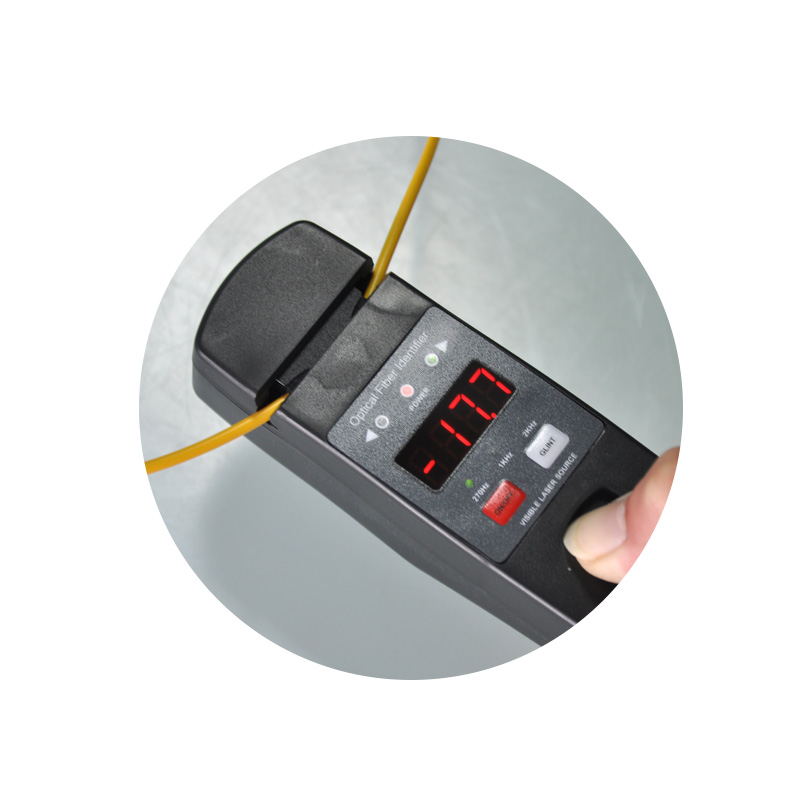

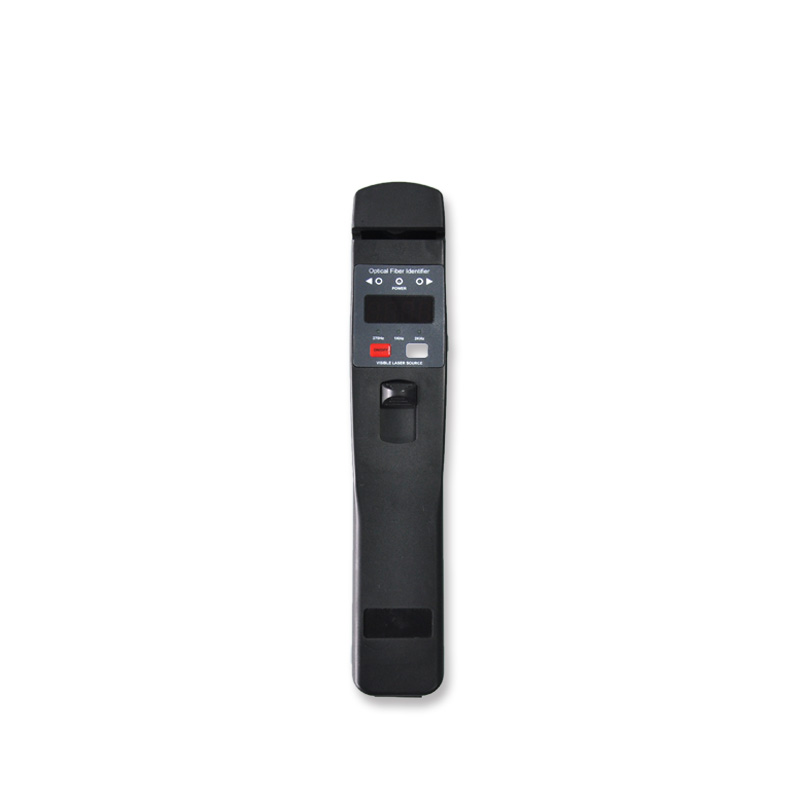

JW3306D Handheld Optical Fiber Identifier
  • JW3306D Handheld Optical Fiber Identifier
  • JW3306D Handheld Optical Fiber Identifier

JW3306D Handheld Optical Fiber Identifier


( Order Today, Ship before 09/18/2025 )
  • Description
  • Reviews
  • FAQs

What Is JW3306D Handheld Optical Fiber Identifier price and specification


Features

  • Indicate the signal directions and power in fiber;
  • Indicate the signal presence or absence(Live or dark fiber);
  • Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning;
  • Displays the relative core power ;
  • Easy-to-replace adaptors;
  • Lower power indication;
  • Build in VFL function.

Specifications


Type


JW3306D


Identified
Wavelength Range


750-1700 nm


Insertion
Loss


1.0dB


Fiber Type


< 3mm Fiber


Identified
Signal Type


270Hz/1KHz/2KHz


Display
Type


LED


Detector
Type


1mm InGaAs


Minimum
detection power


-35dBm(1550nm)


-30dBm(1310nm)


Center
Wavelength


650nm


Output
Power


10mW


Alkaline
Battery


2*AA


Battery
Life


> 60H


Operating
Temperature


0-+50℃


Storage
Temperature


-20-+60℃


Dimension


25.5*8*5.5cm


Weight


0.3kg
