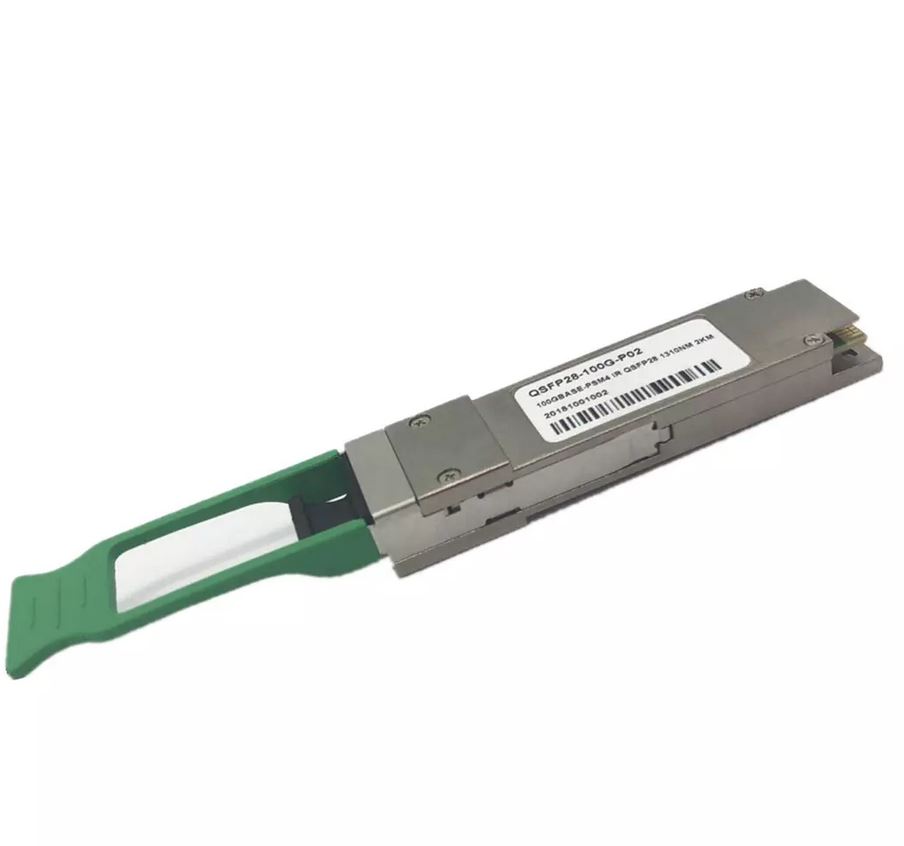

QSFP28 100G PSM4 IR 1310nm 2km Transceiver

QSFP28 100G PSM4 IR 1310nm 2km Transceiver


( Order Today, Ship before 09/18/2025 )
  • Description
  • Reviews
  • FAQs

What Is QSFP28 100G PSM4 IR 1310nm 2km Optical Transceiver Module

QSFP28 100G PSM4 IR 1310nm 2km Optical Transceiver Module is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 Transceiver for 100G Ethernet Applications.

The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 26Gbps operation for an aggregate data rate of 104Gbps 2km using single mode fiber. These modules are designed to operate over single mode fiber systems using 1310nm DFB laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP28 module receptacle.

QSFP28 PSM4 is one kind of parallel transceiver which provides increased port density and total system cost savings.

Product Features

1.Four-channel full-duplex transceiver modules

2.Transmission data rate up to 26Gbit/s per channel

3.Up to 2km transmission of single mode fiber

4.Low power consumption <3.5W

5.Operating case temperature 0℃ to70℃

6.3.3V power supply voltage

7.RoHS 6 compliant

8.Hot Pluggable QSFP28 form factor

9.Single MPO connector receptacle

10.Built-in digital diagnostic function

Applications

1.100G Ethernet

2.Proprietary High Speed

3.Interconnections

4.Data center

QSFP28 100G PSM4 IR 1310nm 2km Optical Transceiver Module

Regulatory Compliance

Feature Standard Performance
Electromagnetic Interference (EMI)FCC Part 15 Class B

EN 55022:2010, Class B

Compatible with

standards

Electromagnetic susceptibility (EMS)EN 55024:2010Compatible with

standards

Laser Eye SafetyFDA 21CFR 1040.10 and 1040.11

EN60950, EN (IEC) 60825-1,2

Compatible with Class I

laser product

Absolute Maximum Ratings

The operation in excess of any absolute maximum ratings might cause permanent damage to this module.

Parameter Symbol Min Max Unit Notes
Storage TemperatureTS-4085degC
Operating Case TemperatureTOP070degC
Power Supply VoltageVCC-0.33.6V
Relative Humidity (non-condensation)RH085%
Input VoltageVin-0.3Vcc+0.3V

Recommended Operating Conditions and Power Supply Requirements

Parameter Symbol Min Typical Max Unit Notes
Operating Case TemperatureTOP070degCOperating Case Temperature
Power Supply VoltageVCC3.1353.33.465VPower Supply Voltage
Power Consumption3.5WPower Consumption
Data RateDR25.78125GbpsData Rate
Data Speed Tolerance DR-100+100ppmData Speed Tolerance
Link Distance with G.652D02kmLink Distance with G.652

Electrical Characteristics

Parameter Test Point Min Typical Max Unit Notes
Differential input impedanceZin90100110ohm
Differential Output impedanceZout90100110ohm
Differential input voltage amplitudeΔVin3001100mVp-p
Differential output voltage amplitudeΔVout300800mVp-p
Input Logic Level HighVIH2.0VCCV
Input Logic Level LowVIL00.8V
Output Logic Level HighVOHVCC-0.5VCCV
Output Logic Level LowVOL00.4V

Optical Characteristics

Parameter Symbol Min Typical Max Unit Notes
Transmitter
Center WavelengthλC129513101325nm1
RMS Spectral Widthλrms3.5nm1
Average Launch Power, each lanePAVG-3-0.5+2.3dBm
Optical Modulation Amplitude (OMA)POMA-5-0.5+2.5dBm1
Difference in Launch Power between

any two lanes

Ptx,diff

5.0

dB

Launch Power in OMA minus

Transmitter and Dispersion Penalty

(TDP), each Lane

OMA-TDP

-2.3

dBm

1

Rise/Fall TimeTr/Tf30ps
Extinction RatioER3.5dB
Relative Intensity NoiseRin-128dB/Hz
Optical Return Loss ToleranceTOL11.9dB
Transmitter ReflectanceRT-12dB
Transmitter Eye Mask MarginEMM10%2
Center WavelengthλC129013101330nm
Damage ThresholdTHd+3dBm
Overload, each laneOVL+2dBm
Receiver Sensitivity in OMA, each LaneSEN-8.6dBm3
Signal Loss Assert ThresholdLOSA-30dBm
Signal Loss Deassert ThresholdLOSD-15dBm
LOS HysteresisLOSH0.56dB
Optical Return LossORL-12dBm

Notes:

1. Transmitter wavelength, RMS spectral width and power need to meet the OMA minus TDP specs to guarantee link performance.

2. The eye diagram is tested with 1000 waveform.

3. Measured with conformance test signal at receiver input for BER = 1×10-12.

Digital Diagnostic Functions

The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.

Parameter Symbol Min Max Unit Notes

Temperature monitor absolute error

DMI_Temp

-3

3

degC

Over operating

temp

Supply voltage monitor absolute error

DMI _VCC

-0.1

0.1

V

Full operating

range

Channel RX power monitor absolute errorDMI_RX-33dBPer channel
Channel Bias current monitorDMI_Ibias-10%10%mAPer channel

Temperature monitor absolute error

DMI_Temp

-3

3

degC

Over operating

temp
