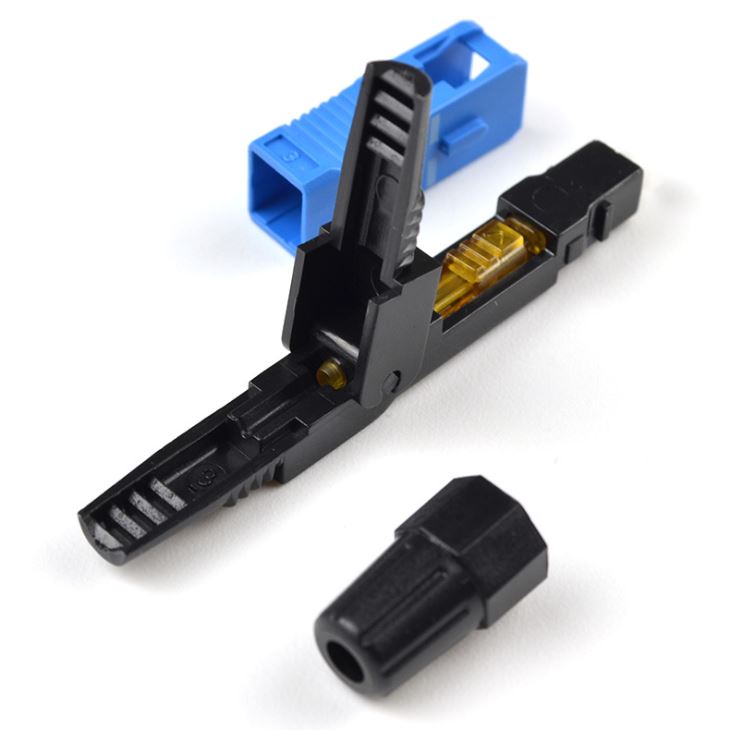

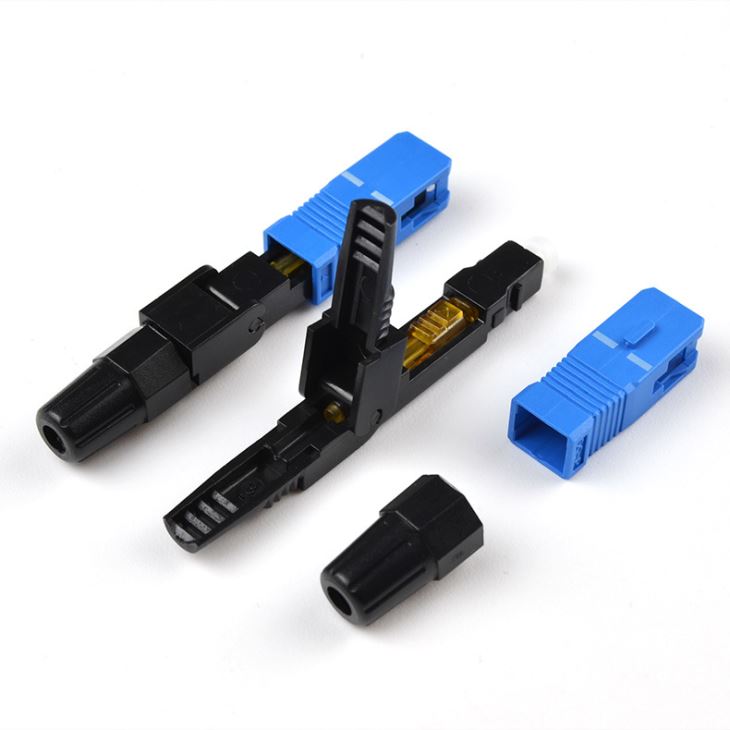

SC/UPC Singlemode 3.0mm Pre-polished Ferrule Field Assembly Connector
SC/UPC Singlemode 3.0Mm Pre-polished Ferrule Field Assembly Connector The Field Assembly Connector products have been factory-polished, eliminating the need for any polishing materials, thereby enabling the preparation and termination of optical fibres in a fraction of the time of other conventional methods. The connector also uses V-groove mechanical splice principals and therefore the use of an epoxy is not required for the termination of the connector. This Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field.
Assembly of the SC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed. Just Strip the buffer, cleave and clean the fiber and then insert the fiber into the Fast Connector.Installation takes just minutes and couldn’t be easier.
The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers. Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules.
Applications:
Fiber Optic Communication System and Telecommunication networks
Fiber Optic Data Transmission
CATV network
Optical Access Network
Fiber to the Subscriber (FTTX) applications
Optical Cable Interconnection
Maintenance or emergency restoration of fiber networks
Repair/Replacement requirements
Fiber Optic Equipment
Features:
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.3dB Max 0.5dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-CORE
Specifications:
| Parameters | Specifications | |
| Connector Type | SC/LC/FC | |
| Dimension | 50mm | |
| Cable Diameters | 0.9/2.0/3.0mm | |
| Fiber Mode | SM/MM | |
| Grinding end-face | UPC/APC | |
| Insertion Loss | UPC | APC |
| ≤0.5dB | ≤0.5dB | |
| Return Loss | UPC | APC |
| ≥45dB | ≥50dB | |
| Tension Test | ≥100N | |
| Operating Temperature | -40℃-+75℃ | |
Quality Certification:
- Good Anti-electromagnetic interference (EMI)
- Good Electromagnetic compatibility (EMC) which is in accordance with FCC Part15.
- Meets ISO9001, TUV, CE, FCC, CAS, UL and RoHS certificates
SC Fast Connector Installation | |
 1. Arrange for a FAOC to assemble |  2. Insert screw cap into optical cable. |
 3. Strip the coating of optical cable over 40mm. |  4.Mark the point of 22mm length on the 900 buffer using a rule on the polybag. |
 5. Strip the coating of 900 250 from the end of 900 to the point of 22mm marked about 18mm and clean the fiber using the alcohol and gauze. |  6. Cut off the fiber at the length of 13mm using optical fiber cleaver |
 7. Insert optical cable into the fiber guide on the boot. when it is checked the bending of cable as above stop inserting |  8. And maintaining the cable bending with right hand push the connecting holder forward to the end and fix the fiber |
 9. Take the boot cover down connect the screw cap with boot by turning it and make the coating & strength member yarn fix |  10. Turn the protrusion of housing toward the bottom and unite it to the body |
 A.Pull out the housing and then separate them by turning the screw cap |  B. Pull the fiber connecting holder in reverse with procedure 8. And then, pull out the cable and reassemble. |
