Huawei XGHD 10G Service Board Product Overview

Huawei XGHD 10G Service Board is 8 port 10G GPON interface board, and it works with the 10G GPON ONT (Optical Network Terminal) device to implement 10G GPON service access. The MA5800 series of OLT is the latest and the most advanced OLT platform in the industry. It is designed to support continuing growth in bandwidth demand, wire-line and wireless access convergence, and migration toward SDN. The industry’s first 40 Gbit/s-capacity Next-Generation Optical Line Terminal (NG-OLT). Huawei’s SmartAX MA5800 multiple-service access module employs a distributed architecture to support ultra-broadband, Fixed Mobile Convergence (FMC) services, and smart capabilities, such as SDN-based virtualization.

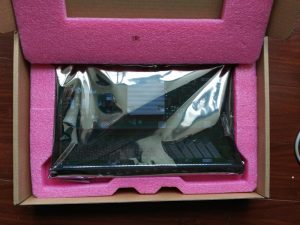

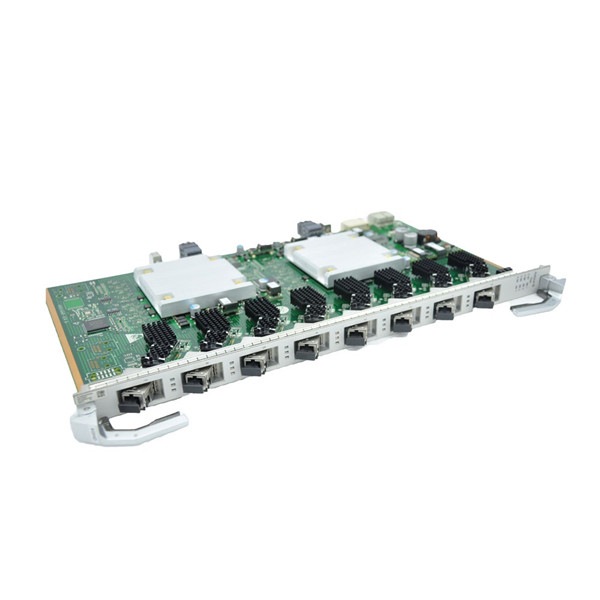

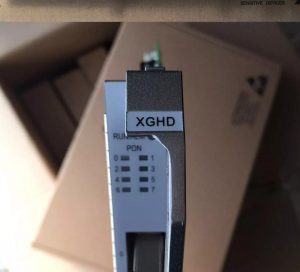

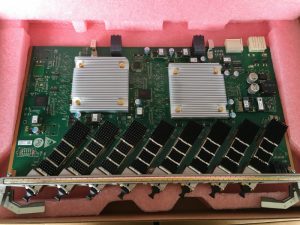

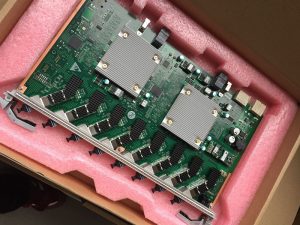

Huawei XGHD 10G Service Board Product Picture

Product Specifications

BrandHuawei
ModelXGHD
Port quantity8 XG-PON
MAX Split ratio 1: 256
Rate modeasymmetric rate mode
Forwarding Rate80 Gbit/s
Maximum differential fibre distance (km)40
Maximum Number of Service Flows Supported by the Board16368
Maximum Number of MAC address Supported by the Board131072
Available DBA bandwidth (based on single port) (kbit/s)1238784
Number of T-CONT supported by each GPON port1024
Number of ONUs supported by a GPON port128
Number of GEM ports supported by each board16384
Number of GEM ports supported by each GPON port3872
Number of service ports supported by each GEM port8184
Minimum bandwidth supported by a T-CONT1 Mbit/s (in the minimum delay mode)
128 kbit/s (in the maximum bandwidth usage mode)
Working temperature-40℃-+65℃
Maximum Power waste61w
Dimensions (W x D x H) mm23 x 237 x 396

Product Feature

  • Supports 8 10G GPON SFP interfaces
  • Supports a maximum of 1: 128 split ratio
  • Support single-fibre bidirectional optical module
  • Support RSSI detection and optical module illumination control
  • Shaping that supports ONU granularity
  • Support temperature query and high-temperature alarm
  • Support high-temperature automatic shutdown protection
  • Support upstream and downstream FEC
  • Support Type B/Type C protection
  • Supported maximum transmission distance of 40km
  • Support rogue ONT detection

Huawei More Service Board

GPBD8GPON Port (SFP Optical Module:Class B+,C+,C++), Version 802/805/806/807
GPBH8GPON Port (SFP Optical Module:Class B+,C+,C++),Version 806/807
EPBD8EPON Port (SFP Optical Module:PX20+), Version 802/808/809
EPSD8EPON Port (SFP Optical Module:PX20+),
GPFD16GPON Port (SFP Optical Module:Class B+,C+,C++),
EPFD16EPON Port (SFP Optical Module:PX20+),
XGBD8*10G GPON Port (SFP Optical Module:XGPON N1/XGPON N2),
XEBD8*10G EPON Port (SFP Optical Module:10GEPON PRX30/10GEPON PR30),
GPHF16 GPON Port (SFP Optical Module:Class B+,C+,C++),
GPSF16 GPON Port (SFP Optical Module:Class B+,C+,C++),
GPLF16 GPON Port (SFP Optical Module:Class B+,C+,C++),
EPHF16 EPON Port (SFP Optical Module:PX20+),
XEHD8 10G EPON Port (SFP Optical Module:PX30 PRX30),
XELD8 10G EPON Port (SFP Optical Module:PX30 PRX30),
XGHD8 XG-PON Port (SFP Optical Module:XGPON N1),
XGLD8 XG-PON Port (SFP Optical Module:XGPON N1),
XGLF16 XG-PON Port (SFP Optical Module:XGPON N1),
XGSF16 XG-PON Port (SFP Optical Module:XGPON N1),

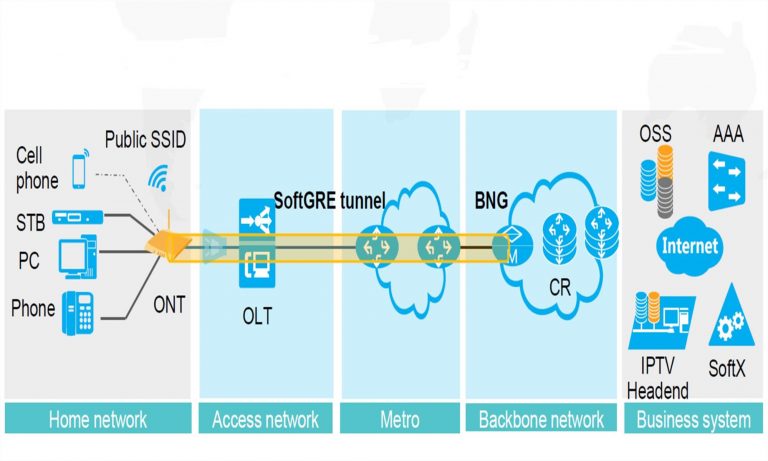

Huawei XGHD 10G Service Board Product Topology

Huawei XGHD 10G Service Board Product Topology
