Huawei W2PSA0580 Power Module Product Overview
Huawei W2PSA0580 Power Module is 580W AC PoE power module for S6720-32C-PWH-SI-AC、S6720-32C-PWH-SI、S6720-56C-PWH-SI-AC、S6720-56C-PWH-SI.
The S6720-EI series of enhanced 10-Gigabit switches are the highest-performance box switches in the industry. They support rich business features, complete security control strategies, and rich QoS. They can be used in data centers, server access and campus network cores.
The S6720-LI series of 10 Gigabit switches (hereinafter referred to as S6720-LI) is a new generation of streamlined all 10 Gigabit box switches independently developed by Huawei, which can be used for 10 Gigabit access in campus networks and data centers. S6720-LI provides full wire-speed 10 Gigabit access interfaces and 40GE uplink interfaces. At the same time, S6720-LI supports rich business features, complete security control strategies, and rich QoS features to meet the scalability and reliability of the park and data center , Manageability, security and many other challenges.

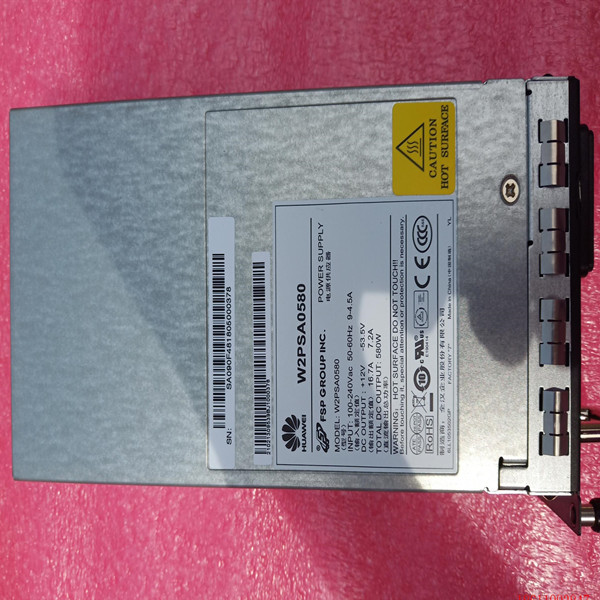

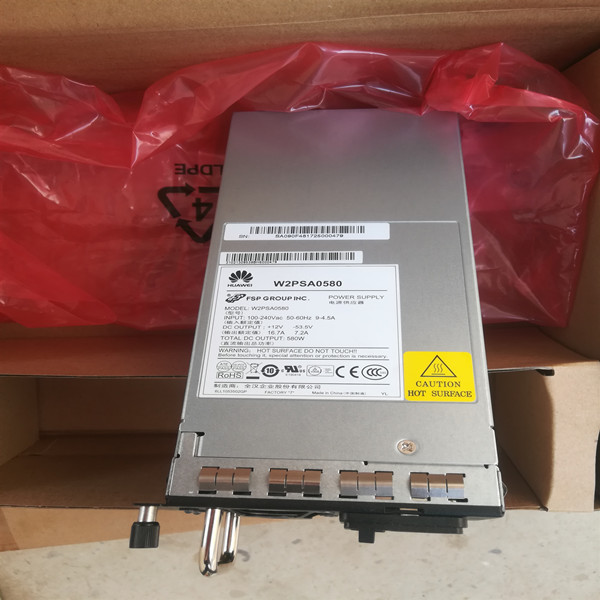

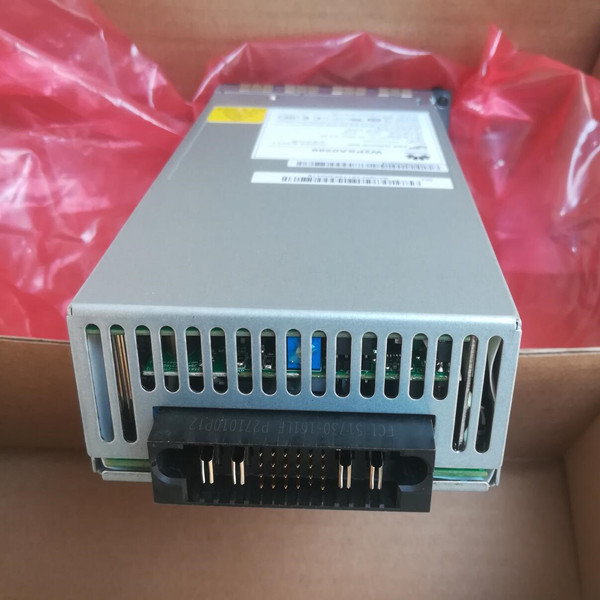

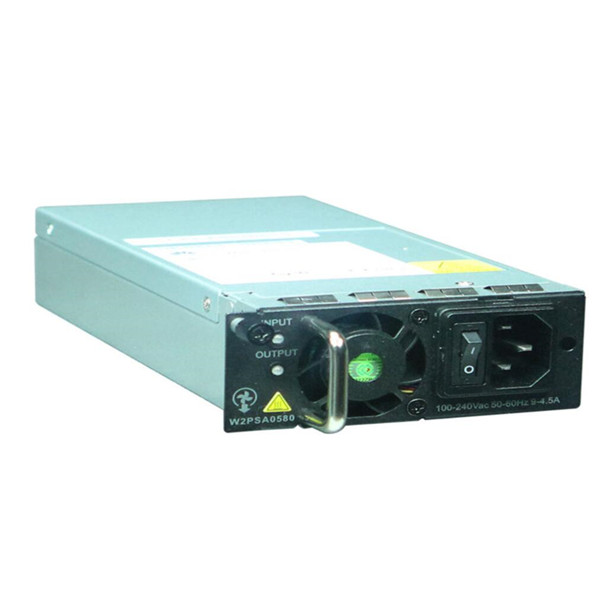

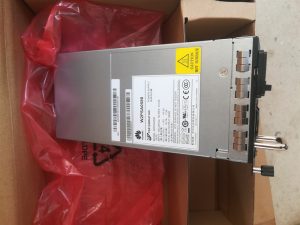

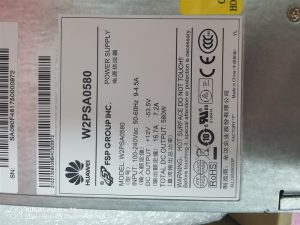

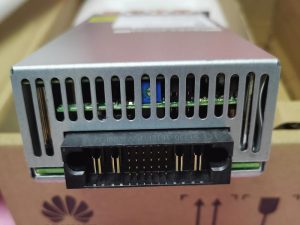

Huawei W2PSA0580 Power Module Product Picture
Product Specification
| Item | Description |
| Brand | Huawei |
| Part number | 2130953 |
| Model | W2PSA0580 |
| Dimensions (H x W x D) | 40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.) |
| Weight | |
| Rated input voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum input voltage range | 90 V AC to 290 V AC, 47 Hz to 63 Hz |
| Input current | 9 A to 4.5 A |
| Maximum output current | +12 V: 16.66 A |
| -53.5 V: 7.11 A | |
| Maximum output power | PoE: 369.6 W |
| Total: 580 W |
Product Feature
- Hot swapping
Supported
- PoE power supply
Provide a maximum of 369.6 W PoE power.
- Input protection
Input overcurrent and undervoltage protection is provided.
- Output protection
Output overvoltage, overcurrent, and short-circuit protection is provided.
- Overtemperature protection
When the temperature of the power module exceeds a specified threshold (75°C), the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.

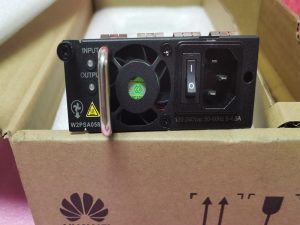

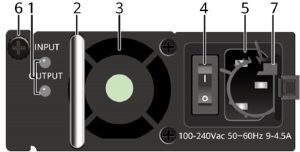

Huawei Power Module Product Panel
| 1. Power status indicator | 2. Handle | 3. Fan | 4. Switch |
| 5. AC power socket | 6. Captive screw | 7. AC power cable locking strap | – |
Huawei Power Module Product and More Power Unit
150W AC power module (ES0W2PSA0150)
150W DC power module (ES0W2PSD0150)
170W AC power module (W0PSA1701)
170W DC power module (ES5M0PSD1700)
260W DC power supply module (PDC260S12-DL)
300W AC power module (PAC300S12-CL)
350W DC power module (PDC-350WA-B)
500W DC power module (LS6W2PSD0500)
600W AC power module (PAC-600WA-B)
600W AC power module (PAC600S12-CB)
500W AC power module (W0PSA5000)
580W AC PoE Power Module (W2PSA0580)
650W DC PoE power module (PDC-650WA-BE)
1000W AC PoE power module (PAC1000D5412)
1000W DC power module (PDC1000S12-DB)
1150W AC PoE power module (W2PSA1150)
870W PoE power module (LS5W2PSA0870, 15A rectifier module)

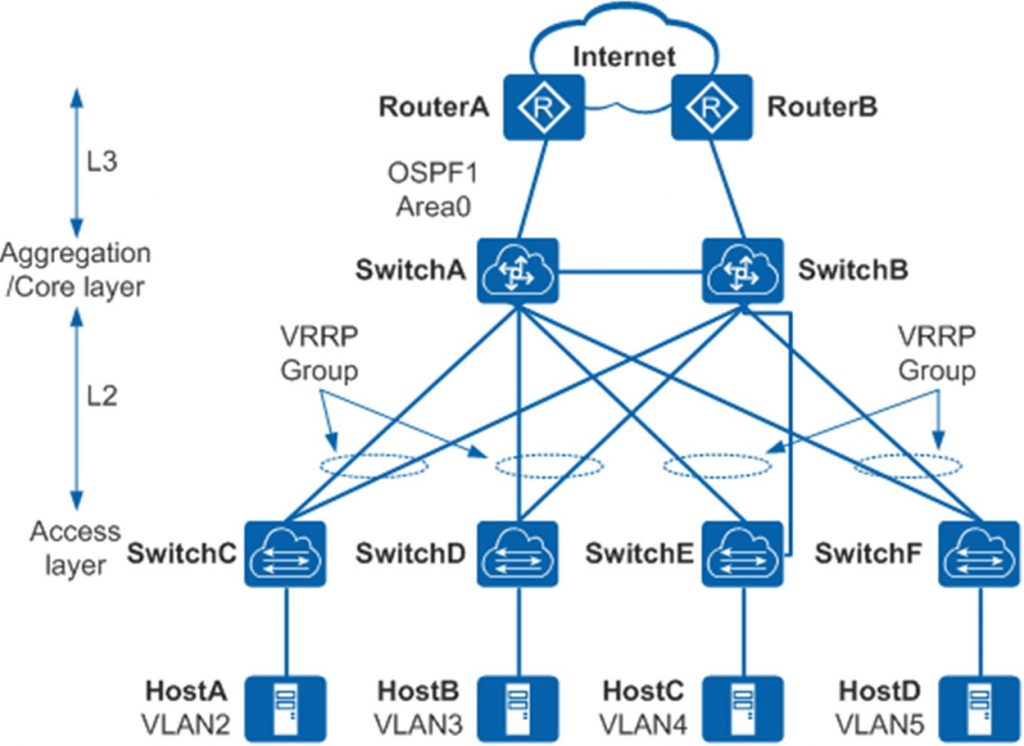

Huawei W2PSA0580 Power Module Product Application
Huawei W2PSA0580 Power Module Product Applicationwiki
