Huawei W2PSA1150 Power Module Product Overview
Huawei W2PSA1150 Power Module is 1150 W AC PoE Power Module for S6720-32C-PWH-SI, S6720-52X-PWH-SI, S6720-56C-PWH-SI
S6700/S6720/S6730 Series are High-performance, super-reliable 10 GE switches with comprehensive Quality of Service and security capabilities, ideal for use as access switches in large-scale data centers and core switches in campus networks.
Advanced switching architecture and line-card buffering ensure smooth, sustained performance; Huawei’s intelligent iStack virtualization technology enables both easy management and expandability. Tight integration with Huawei’s eSight NMS for efficient provisioning, reconfiguring, and administration.
S6700 Series switches are available in 24-port and 48-port S6700-EI models, for resilient IPv4 and smooth migration to IPv6 networking.

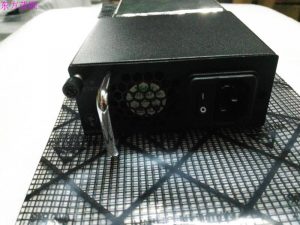

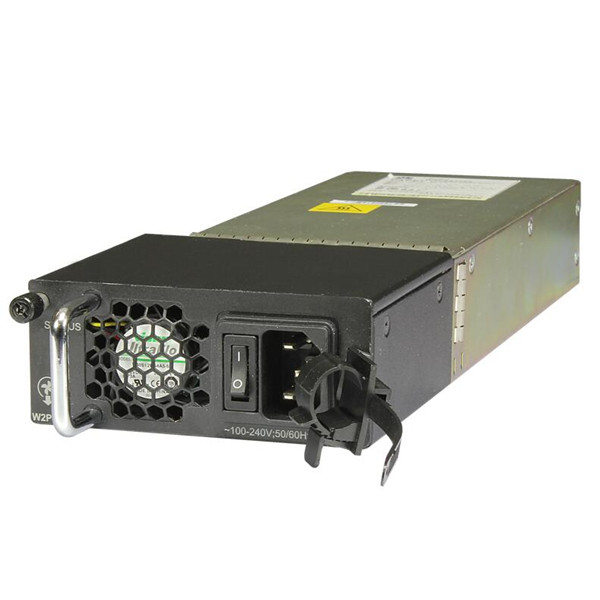

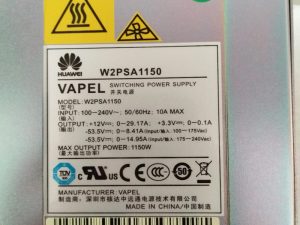

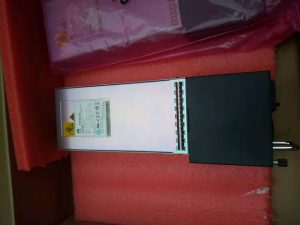

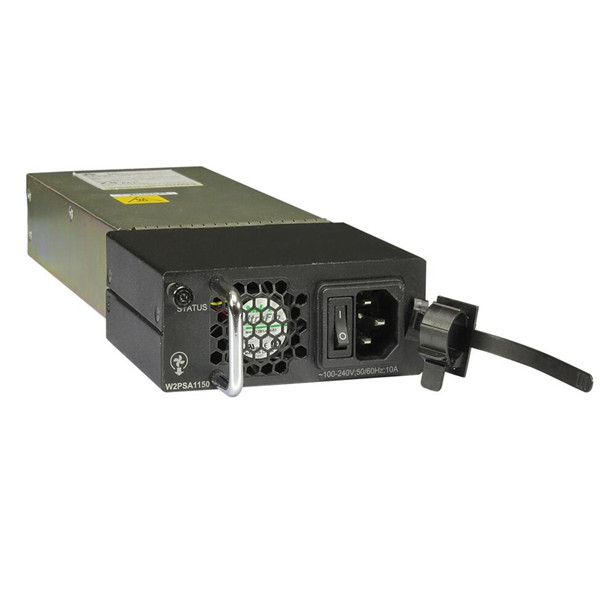

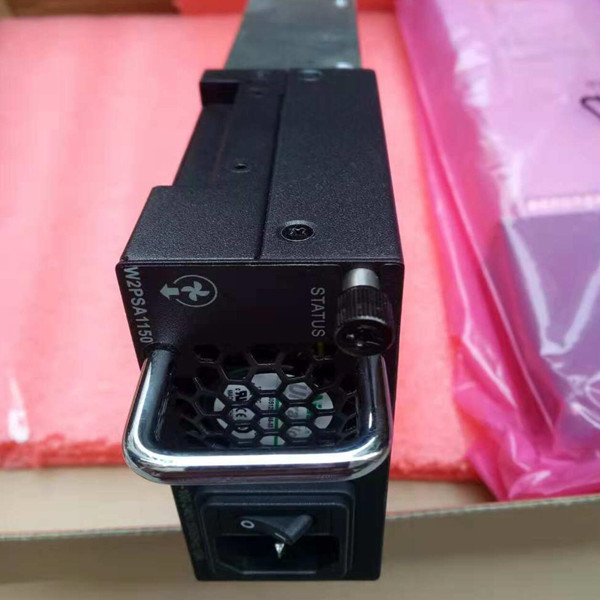

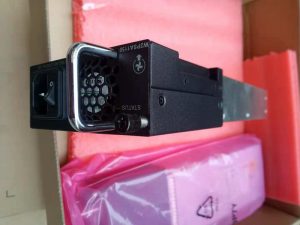

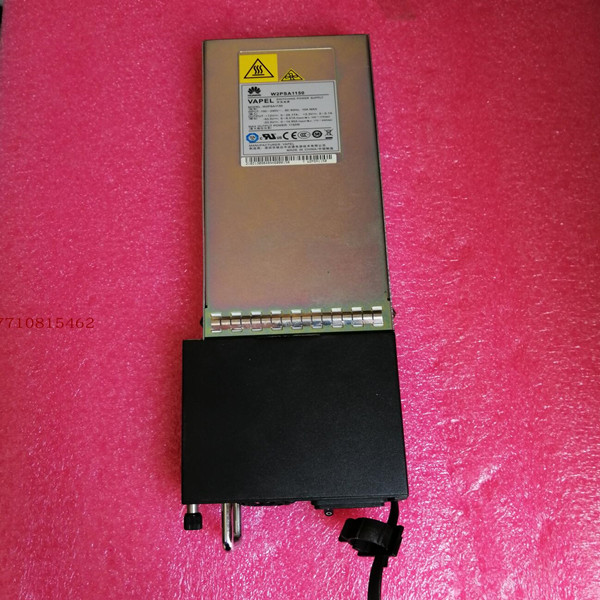

Huawei W2PSA1150 Power Module Product Picture
Huawei W2PSA1150 Power Module Product Specification
| Item | Description |
| Brand | Huawei |
| Part number | 2130984 |
| Model | W2PSA1150 |
| Dimensions (H x W x D) | 41.4 mm x 100.0 mm x 281.0 mm (1.63 in. x 3.9 in. x 11.1 in.) |
| Weight | |
| Rated input voltage | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum input voltage | 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Input current | 10:00 AM |
| Maximum output current | +12 V: 29.17 A |
| -53.5 V: 14.95 A | |
| Maximum output power | PoE: 785.4 W (220 V)/446.6 W (110 V) |
| Total: 1150 W (220 V)/800 W (110 V) |
Product Feature
- PoE power supply
Provide a maximum of 785.4 W PoE power.
- Input protection
Provide protection against input overcurrent and input undervoltage.
- Output protection
Provide protection against output overvoltage, output overcurrent, and output short-circuit.
- Overtemperature protection
When the temperature of the power module exceeds a specified threshold (70°C), the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.

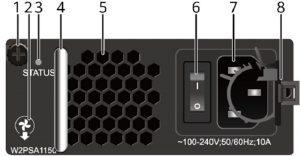

Product Panel
- Captive screw
- Airflow flag (air out)
- Indicator
- Handle
- Fan
- Power switch
- AC power socket
- AC power cable locking strap
Huawei Power Module Product and More Power Unit
150W AC power module (ES0W2PSA0150)
150W DC power module (ES0W2PSD0150)
170W AC power module (W0PSA1701)
170W DC power module (ES5M0PSD1700)
260W DC power supply module (PDC260S12-DL)
300W AC power module (PAC300S12-CL)
350W DC power module (PDC-350WA-B)
500W DC power module (LS6W2PSD0500)
600W AC power module (PAC-600WA-B)
600W AC power module (PAC600S12-CB)
500W AC power module (W0PSA5000)
580W AC PoE Power Module (W2PSA0580)
650W DC PoE power module (PDC-650WA-BE)
1000W AC PoE power module (PAC1000D5412)
1000W DC power module (PDC1000S12-DB)
1150W AC PoE power module (W2PSA1150)
870W PoE power module (LS5W2PSA0870, 15A rectifier module)

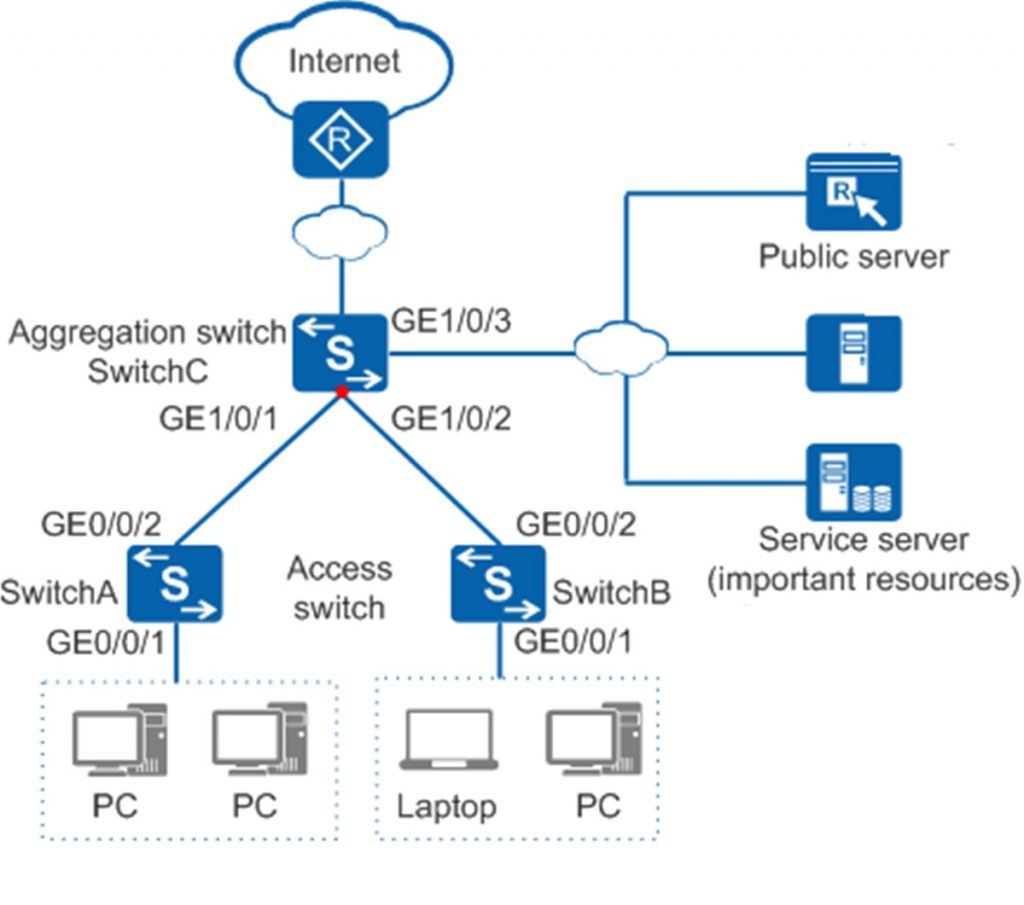

Huawei W2PSA1150 Power Module Product Application
