Huawei XGSF Service Board Product Overview
Huawei XGSF Service Board is a 16-port XG-PON interface board. It works together with the optical network unit (ONU) to provide XG-PON access services. This board is used for Huawei MA5800 Series OLT equipment.
Huawei OLT MA5800 optical access network is an access network that uses light as the transmission medium, instead of copper wire, for access to every household. The optical access network is composed of OLT (Optical Line Terminal) and ONU (Optical Network Unit, optical network unit) and ODN (Optical Distribution Network, optical distribution network) three parts; among them OLT and ONU are the core components of the optical access network. The core component of optical access network

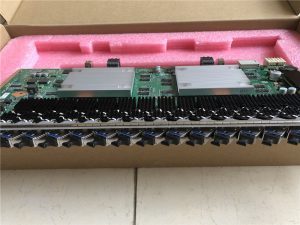

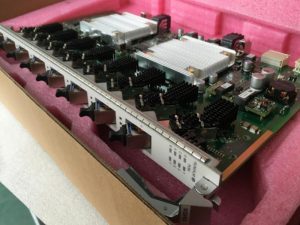

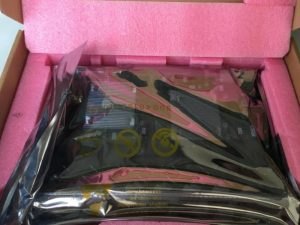

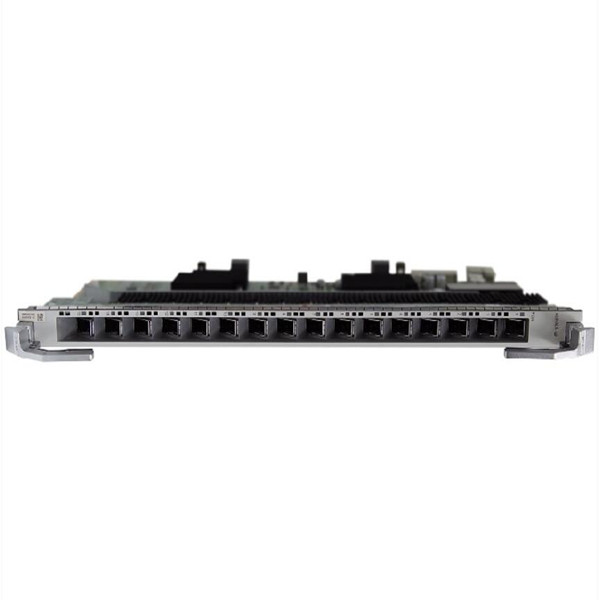

Huawei XGSF Service Board Product Picture

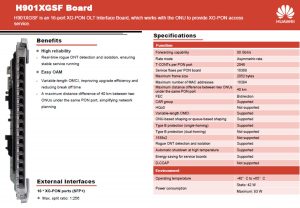

Huawei XGSF Service Board Product Specification
| Brand | Huawei |
| Model | XGSF |
| Port | 16 |
| Type | N2a Module:One-fiber bidirectional optical module, N2a |
| N1 Module: One-fiber bi-directional optical module, N1 | |
| Operating Wavelength | N2a/N1 Module: |
| Tx: 1577nm | |
| Rx: 1270nm | |
| Encapsulation Type | SFP+ |
| Port Rate | N2a/N1 Module: |
| Tx: 9.953 Gbit/s | |
| Rx: 2.488 Gbit/s | |
| Minimun Output Optical Power | N2a Module: 4 dBm |
| N1 Module: 2 dBm | |
| Maximum Output Optical Power | N2a Module: 8 dBm |
| N1 Module: 6 dBm | |
| Maximum Receiver Sensitivity | N2a Module: -29.5 dBm |
| N1 Module: -27.5 dBm | |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power | N2a Module: -9 dBm |
| N1 Module: -7 dBm | |
| Extinction Ratio | N2a/N1 Module: 8.2 dB |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption | Static: 42 W; Maximum: 83 W |
| Operating temperature | -40°C to +65°C |
Huawei XGSF Service Board Product Feature
- High Density,energy Saving,low power consumption,support 2048 access users
- Manual shutdown of idle PON port to avoid power waste
- Supporting the maximum distance difference between two ONUs and PON ports under the same PON port
- 40 km,simplified network planning
- Intelligent Management Channel
- Level 4 HQoS to Improve User Experience
- 9216 Jumbo frame,greatly improving transmission efficiency
- Easy to operate and maintain
- Real-time hooligans ONU detection and isolation to ensure stable operation of service
- Variable Length OMCI to Improve Upgrade Efficiency and Shorten Business Interruption Time
Huawei XGSF Service Board and More Service Boards
| GPBD | 8GPON Port (SFP Optical Module:Class B+,C+,C++), Version 802/805/806/807 |
| GPBH | 8GPON Port (SFP Optical Module:Class B+,C+,C++),Version 806/807 |
| EPBD | 8EPON Port (SFP Optical Module:PX20+), Version 802/808/809 |
| EPSD | 8EPON Port (SFP Optical Module:PX20+), |
| GPFD | 16GPON Port (SFP Optical Module:Class B+,C+,C++), |
| EPFD | 16EPON Port (SFP Optical Module:PX20+), |
| XGBD | 8*10G GPON Port (SFP Optical Module:XGPON N1/XGPON N2), |
| XEBD | 8*10G EPON Port (SFP Optical Module:10GEPON PRX30/10GEPON PR30), |
| GPHF | 16 GPON Port (SFP Optical Module:Class B+,C+,C++), |
| GPSF | 16 GPON Port (SFP Optical Module:Class B+,C+,C++), |
| GPLF | 16 GPON Port (SFP Optical Module:Class B+,C+,C++), |
| EPHF | 16 EPON Port (SFP Optical Module:PX20+), |
| XEHD | 8 10G EPON Port (SFP Optical Module:PX30 PRX30), |
| XELD | 8 10G EPON Port (SFP Optical Module:PX30 PRX30), |
| XGHD | 8 XG-PON Port (SFP Optical Module:XGPON N1), |
| XGLD | 8 XG-PON Port (SFP Optical Module:XGPON N1), |
| XGLF | 16 XG-PON Port (SFP Optical Module:XGPON N1), |
| XGSF | 16 XG-PON Port (SFP Optical Module:XGPON N1), |
| , |

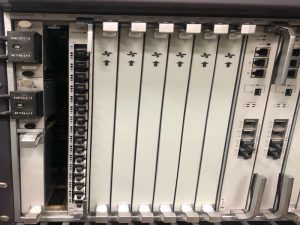

Huawei H901XGSF Service Board Huawei XGSF Service Board FOR MA5800 OLTHuawei XGSF Service Board Product Application

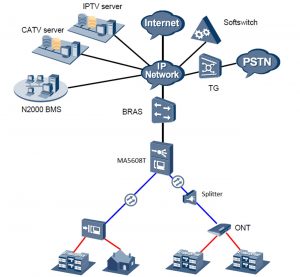

Huawei XGSF Service Board MA5608T SERIES OLT Diagram
