Huawei XEHD 10G Service Board Product Overview
Huawei XEHD 10G Service Board is 8-port 10G EPON interface board. Huawei proposes an innovative 10GPON solution, relying on the industry’s only distributed architecture OLT product MA5800, combined with the industry’s higher density 10GPON board and GPON & 10GPON united board, supporting innovative 10GPON terminal products, providing a better 4K/8K video experience. At the same time, it will simplify network engineering, reduce network construction costs, support smooth evolution, and help operators rapidly deploy Gigabit services.

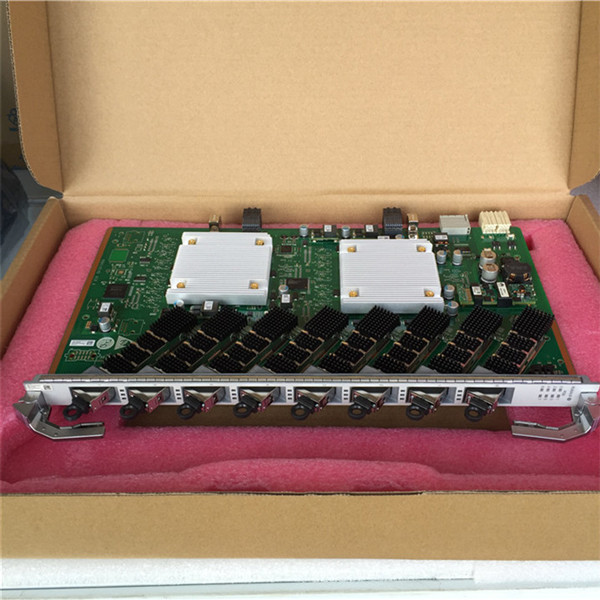

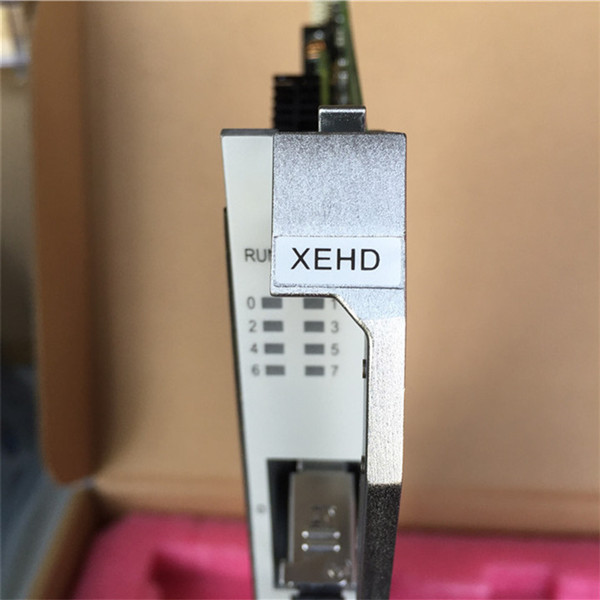

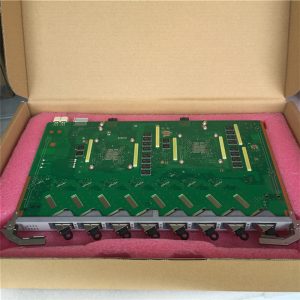

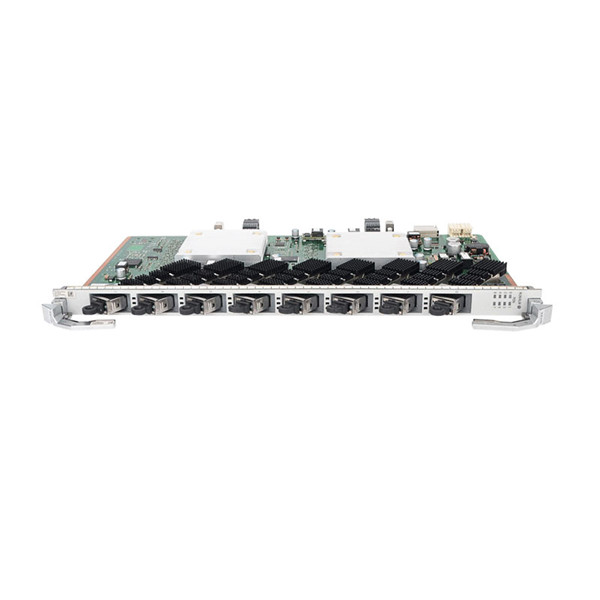

Huawei XEHD 10G Service Board Product Picture
Product Specifications
| Brand | Huawei |
| Model | XEHD |
| Port quantity | 8 XE-PON |
| MAX Split ratio | 1: 256 |
| Rate mode | asymmetric rate mode |
| Forwarding Rate | 80 Gbit/s |
| Maximum differential fibre distance (km) | 40 |
| Maximum Number of Service Flows Supported by the Board | 16368 |
| Maximum Number of MAC address Supported by the Board | 131072 |
| Available DBA bandwidth (based on single port) (kbit/s) | 1238784 |
| Number of T-CONT supported by each GPON port | 1024 |
| Number of ONUs supported by a GPON port | 128 |
| Number of GEM ports supported by each board | 16384 |
| Number of GEM ports supported by each GPON port | 3872 |
| Number of service ports supported by each GEM port | 8184 |
| Minimum bandwidth supported by a T-CONT | 1 Mbit/s (in the minimum delay mode) |
| 128 kbit/s (in the maximum bandwidth usage mode) | |
| Working temperature | -40℃-+65℃ |
| Maximum Power waste | 61w |
| Dimensions (W x D x H) mm | 23 x 237 x 396 |
Product Features

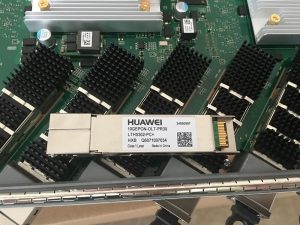

- Supports 8 10G EPON SFP interfaces
- Support single fibre bi-directional 10G EPON OLT optical module
- Supports up to 1: 128 splitting ratio. (Note: The actual splitting ratio depends on the optical module type and fiber distance.)
- support query optical module parameters: temperature, bias current, voltage, receive optical power, send optical power.
- Supports RSSI detection
- Supports optical module lighting control
- Support temperature query and high-temperature alarm
- Support high-temperature automatic shutdown
- Supports up and down rate symmetry mode and asymmetric rate mode
- Supports Type B single home protection

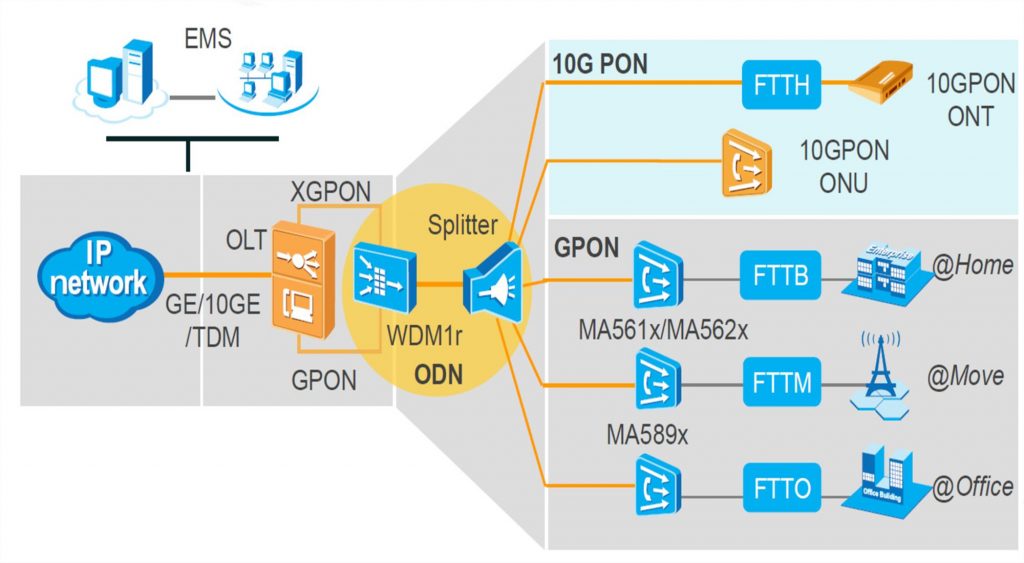

Huawei XEHD 10G Service Board Product Topology
Huawei XEHD 10G Service Board Product TopologyHuawei More Service Board
| GPBD | 8GPON Port (SFP Optical Module:Class B+,C+,C++), Version 802/805/806/807 |
| GPBH | 8GPON Port (SFP Optical Module:Class B+,C+,C++),Version 806/807 |
| EPBD | 8EPON Port (SFP Optical Module:PX20+), Version 802/808/809 |
| EPSD | 8EPON Port (SFP Optical Module:PX20+), |
| GPFD | 16GPON Port (SFP Optical Module:Class B+,C+,C++), |
| EPFD | 16EPON Port (SFP Optical Module:PX20+), |

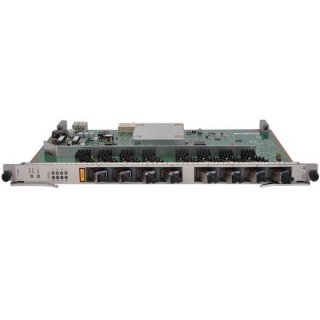

| XGBD | 8*10G GPON Port (SFP Optical Module:XGPON N1/XGPON N2), |
| XEBD | 8*10G EPON Port (SFP Optical Module:10GEPON PRX30/10GEPON PR30), |
| GPHF | 16 GPON Port (SFP Optical Module:Class B+,C+,C++), |
| GPSF | 16 GPON Port (SFP Optical Module:Class B+,C+,C++), |
| GPLF | 16 GPON Port (SFP Optical Module:Class B+,C+,C++), |
| EPHF | 16 EPON Port (SFP Optical Module:PX20+), |
| XEHD | 8 10G EPON Port (SFP Optical Module:PX30 PRX30), |
| XELD | 8 10G EPON Port (SFP Optical Module:PX30 PRX30), |
| XGHD | 8 XG-PON Port (SFP Optical Module:XGPON N1), |
| XGLD | 8 XG-PON Port (SFP Optical Module:XGPON N1), |
| XGLF | 16 XG-PON Port (SFP Optical Module:XGPON N1), |
| XGSF | 16 XG-PON Port (SFP Optical Module:XGPON N1), |
