Huawei XGHDE Interface Board Product Overview
Huawei XGHDE Interface Board is 8-port Advanced XG-PON OLT Interface Board for Huawei SmartAX EA5800 Series
Huawei SmartAX EA5800 series support Service board or upstream interface board slots: 1 to 8, 11 to 19. Huawei SmartAX EA5800 series multiservice access device is positioned as the next-generation OLT for NG-PONWith virtual access technology. it provides a unified carrying platform for multiple services over one fibre network, such as broadband, wireless, video, and monitoring. The EA5800 provides GPON, XG-PON, XGS-PON, P2P GE, and 10GE access, and supports POL, FTTH, FTTB, and FTTC network construction modes. Therefore, it simplifies network architecture and reduces OPEX.

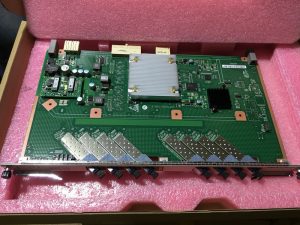

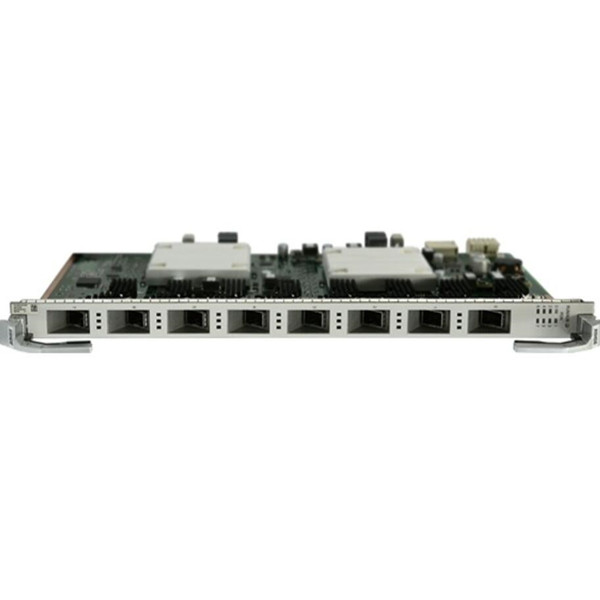

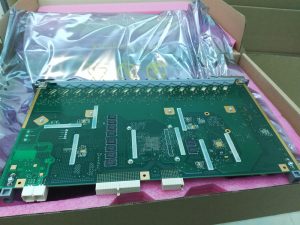

Huawei XGHDE Interface Board Product Picture
Product Specification
| Model | Huawei | |
| Specification | H901XGHDE | H901TWEDE |
| Port quantity | 8 | 8 |
| Forwarding capability | 80 Gbit/s | 80 Gbit/s |
| Rate mode | Asymmetric rate | Supports 2 modes: |
| Asymmetric | ||
| Symmetric | ||
| Port rate | Upstream: 2.488 Gbit/s | Upstream: 9.953/2.488 Gbit/s |
| Downstream: 9.953 Gbit/s | Downstream: 9.953 Gbit/s | |
| Maximum split ratio | 0.219444444 | 0.086111111 |
| T-CONTs per PON port | 2048 | 2048 |
| Service flows per PON board | 16376 | 16376 |
| MAC address table size | 131072 | 131072 |
| Maximum distance difference between 2 ONUs under the same PON port | 40 km | 40 km |
| Supported ONU rates | 10G/2.5G (downstream rate/upstream rate) | 10G/2.5G (downstream rate/upstream rate) |
| 10G/10G (downstream rate/upstream rate) | ||
| FEC | Bidirectional | Bidirectional |
| PON ISSU | Yes | No |
| Type B protection (dual-homing) | Yes | No |
| CAR group | Yes | |
| HQoS | Yes | |
| Variable-length OMCI | Yes | |
| ONU-based or queue-based shaping | Yes | |
| Type B protection (single-homing) | Yes | |
| Rogue ONT detection and isolation | Yes | |
| Automatic shutdown at high temperature | Yes | |
| Energy conservation for service boards | Yes | |
Product Feature
- Support 8 XG-PON SFP interfaces
- Support a maximum of 1:256 split ratio
- Support single-fibre bidirectional optical module
- Support optical module illumination control
- Shaping that supports ONU granularity
- Support temperature query and high-temperature alarm
- Support high-temperature automatic shutdown protection
- Support for uplink and downlink FEC
- Support Type B protection
- Support rogue ONT detection
Huawei XGHDE Interface Board and More Service Board
| H901XGHDE | 8-port Advanced XG-PON OLT Interface Board |
| H901OGHK | 48-port Advanced GE/FE Optical Interface Board |
| H901OXHD | 8-port Advanced 10GE Optical Interface Board |
| H902OXHD | 8-port Advanced 10GE Optical Interface Board |
| H901GPSF | 16-port GPON OLT Interface Board |
| H901OXEG | 24 port Aggregationed 10GE/GE Optical Interface Board |
| H901TWEDE | 8-port Enhanced XGS-PON OLT Interface Board |
| H901XSHF | 16-port XGS-PON OLT Interface Board |
| H902GPHF | 16-port GPON OLT Interface Board |

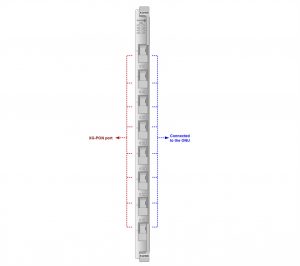

Huawei XGHDE Interface Board Product Panel

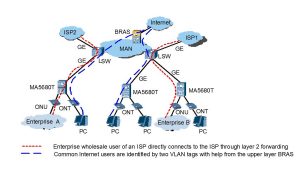

Huawei XGHDE Interface Board Product Application
