Huawei X1CA Uplink Board Product Overview
Huawei X1CA Uplink Board is 1 channel 10GE 10 Gigabit XFP optical interface uplink board and Huawei X2CS uplink board is 2-port 10GE optical card for Huawei MA5680 Series MA5680T supports GPON, 10G GPON, EPON, 10G EPON, and P2P access. At the same time, it can be used as a convergent OLT to support converged access to FTTB/FTTC/DSLAM.MA5683T is a medium-sized OLT that supports GPON, 10G GPON, EPON, 10G EPON, and P2P access. It can lower the OLT location to a community or street, reducing ODN backbone fibre consumption, reducing ODN deployment cost and difficulty, and reducing CO. Room occupancy.

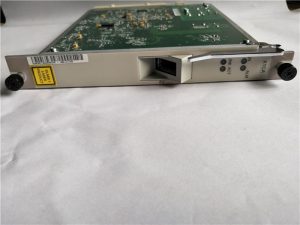

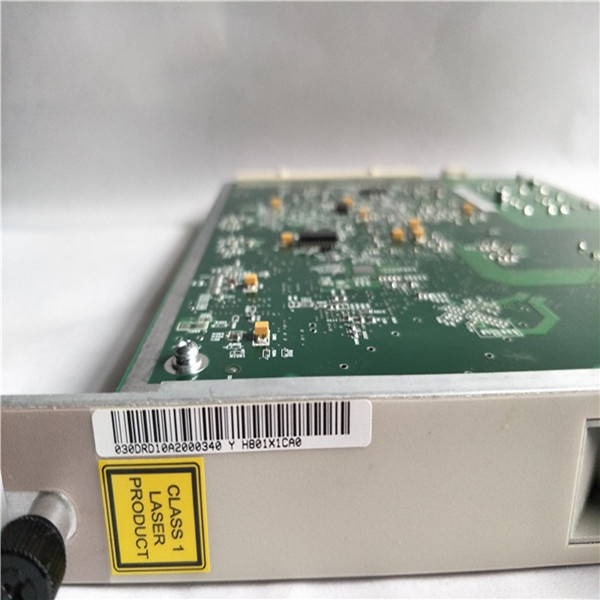

Huawei X1CA Uplink Board Product Picture
Product Specifications
| Brand | Huawei |
| Model | X1CA |
| Port | 1*10GE Uplink Ports |
| Pluggable Module | XSP |
| Corresponding Control Board | SCUF/SCUN/SCUL/SCUH |
| Dimensions (mm) | 25.40 (W) x 237.00 (D) x 197.20 (H) |
| Power Consumption | Static: 17.6 W |
| Maximum: 18 W | |
| Maximum Frame Size | 2052 bytes. After jumbo frame function is enabled, a maximum of 9216 bytes can be supported |
| Operating temperature | -25°C to +65°C |
Product Feature
- The interface module provides one 10GE external interfaces.
- The synchronous Ethernet clock module extracts the clock signal from the 10GE signal and synchronizes it to the 8K clock of the main control board.
- The power module provides working power for each functional module in the board.
- The control module is used to report the status information of the board and the manufacturing information, and provide interface information. In addition, the control module also has the function of managing and alarming the information of each module in the board.
Huawei More Service Board
| Model | MA5680T MA5683T MA5608T |
| Uplink board | H801GICF H801GICG H801GICK |
| Module of uplink board | SFP, SFP(RJ-45), CSSFP, SFP+, XFP |
| Control board | SCUL SCUK/SCUN SCUN |
| EPON Service board | 4ports: H801EPBA, H802EPBC |
| 8ports: H802EPBD, H805EPBD, H806EPBD, H807EPBD, H808EPSD | |
| 16ports: H803EPFD | |
| Module of EPON service board | PX20 PX20+ PX20++ |
| GPON Service board | 4ports: H801GPBC |
| 8ports: H802GPBD, H805GPBD, H806GPBD, H807GPBD, H806GPBH, H807GPBH | |
| 16ports: H801GPFD , H802GPFD , H803GPFD, H805GPFD | |
| Module of GPON Service board | B+ Class c+ Class c++ |
| 10GE Uplink board | H801X1CA H801X2CA H801X2CS |
| 10GE EPON Service board | 8ports: H802 XEBD, H801XEBD |
| 10GE GPON Service board | 8ports: H801 XGBD |

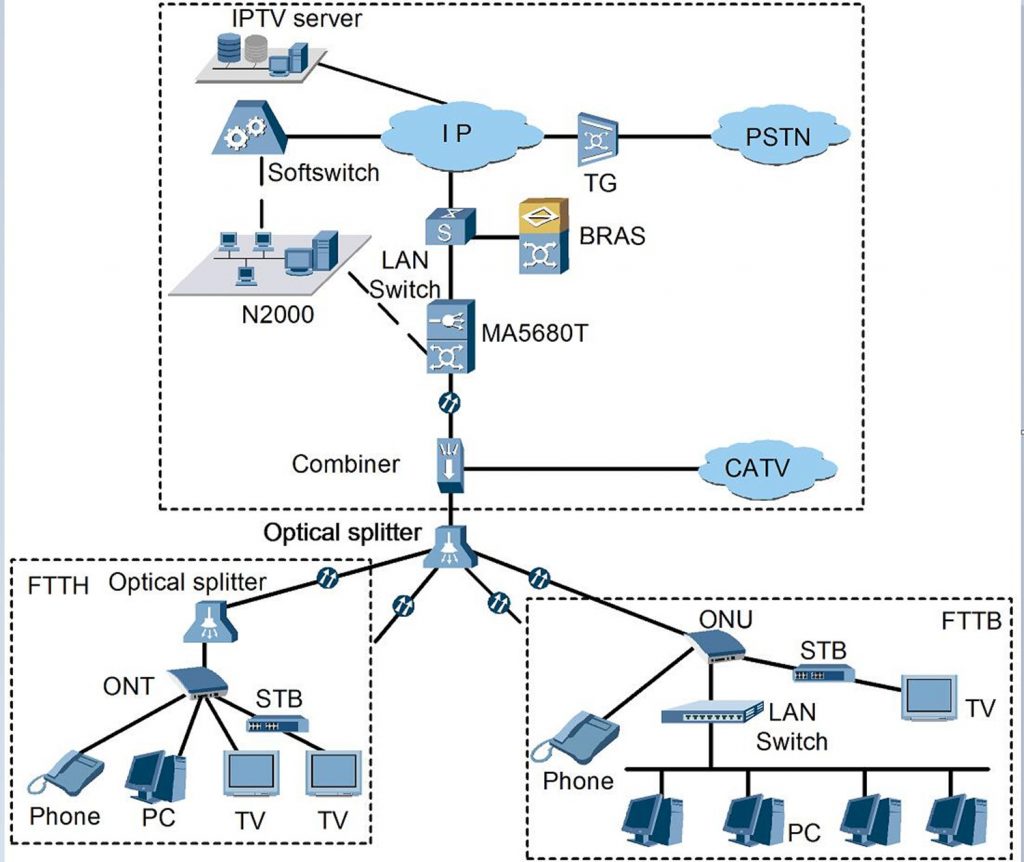

Huawei X1CA Uplink Board Network Topology
Huawei X1CA Uplink Board Network Topologywiki
