Huawei XEBD 10G Service Board Product Overview H802XEBD H801XEBD
Huawei XEBD is 8-port 10G EPON OLT interface board that works with the terminal ONT (Optical Network Terminal) to implement 10G EPON services (EPON-compatible). Huawei OLT is widely deployed around the world, serving more than 85 operators. Its OLT aggregates various terminals and provides high-density ports. This simplifies network architecture, reduces device investment and improves network deployment efficiency. PON/10G PON/GE/10GE in the same platform can help operators carry out smooth network evolution and protect their investments. Building a network that supports unified access for home, enterprise, and mobile backhaul services can reduce network construction costs, enrich the user experience, increase end-user loyalty, and improve the average revenue per user (ARPU).

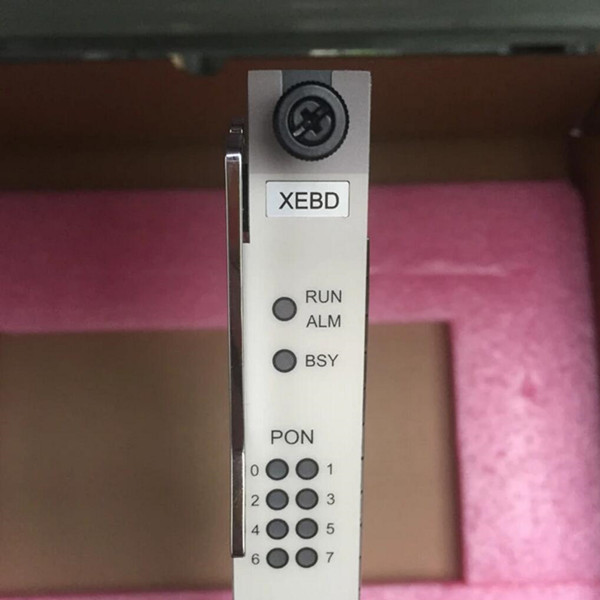

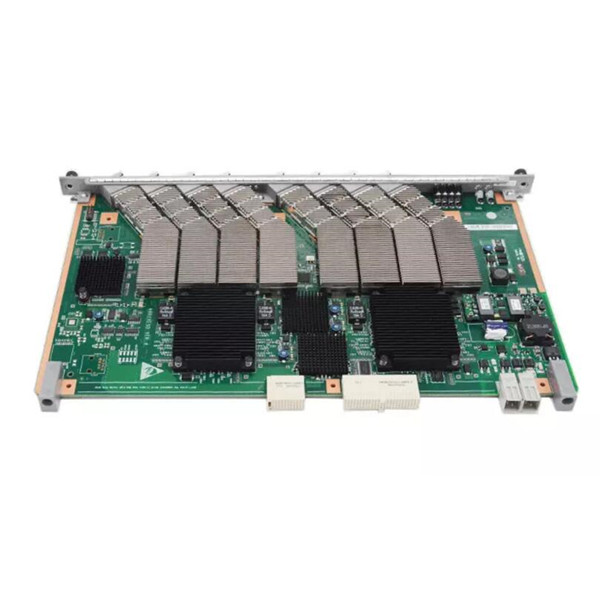

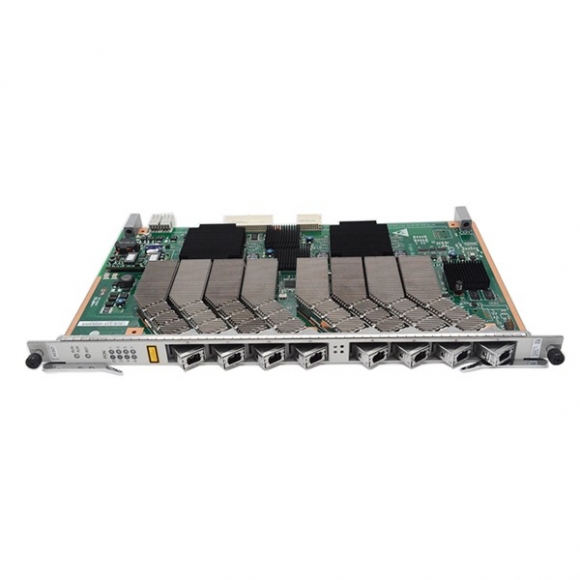

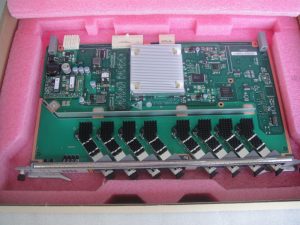

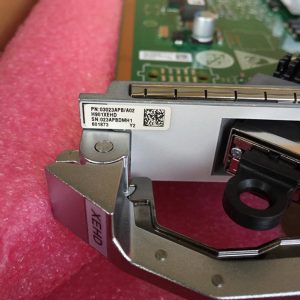

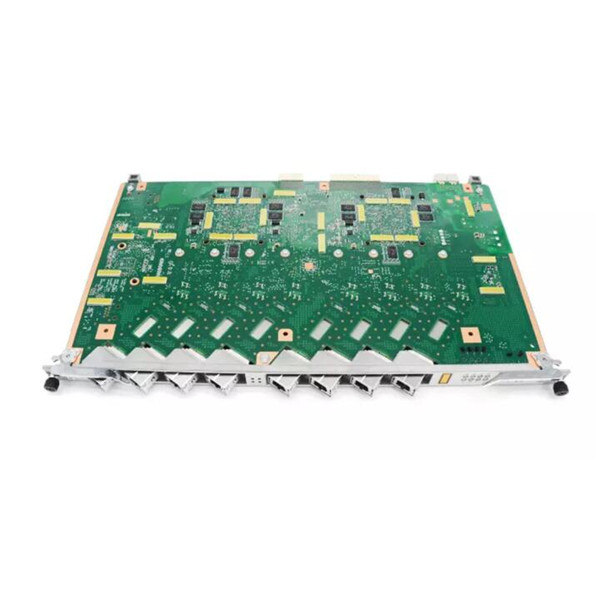

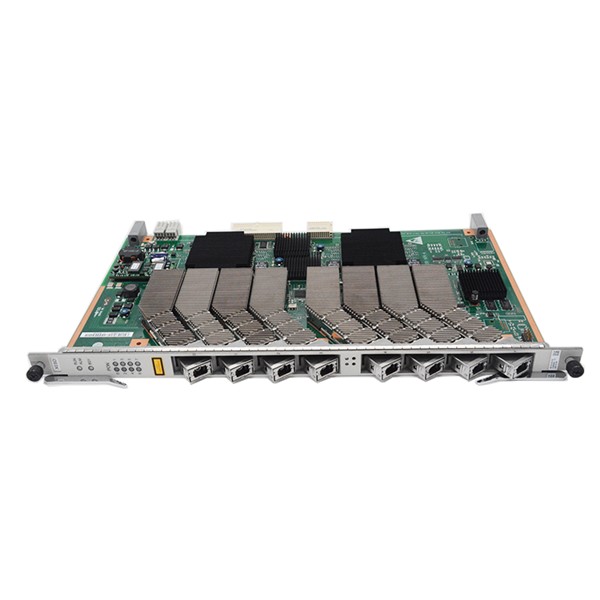

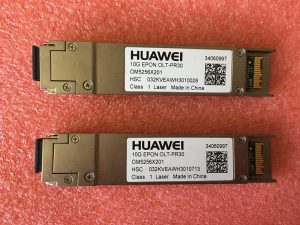

Huawei XEBD 10G Service Board Product Picture
Product Specifications
| Items | H801XEBD | H802XEBD |
| Number of ports | 8 | 8 |
| Port type | XFP. | XFP. |
| Rate mode | Two rate modes are supported Asymmetric rate mode Symmetric rate mode | Supports asymmetric rate mode. |
| Optical module type | Single-fibre bidirectional 10G EPON OLT optical module. | Single-fiber bidirectional 10G EPON OLT optical module. |
| Split ratio | Supports 1:128 split ratio. | Supports 1:128 split ratio. |
| Notes | Notes | |
| The actual split ratio depends on the optical module model and fibre distance. | The actual split ratio depends on the optical module model and fibre distance. | |
| Optical module management | Support query optical module parameters: temperature, bias current, voltage, received optical power, transmitted optical power, etc. | Support query optical module parameters: temperature, bias current, voltage, received optical power, transmitted optical power, etc. |
| Service board business flow | 8192 | 8192 |
| Number of business streams per LLID | 8192 | 8192 |
| RSSI detection | Support | Support |
| Optical module illumination control | support | support |
| Temperature query and high-temperature alarm | support | support |
| High-temperature automatic shutdown | support | support |
Product Features
- Port Type: XFP
- Rate mode: Supports asymmetric rate mode
- Optical module type: single fibre bi-directional 10G EPON OLT optical module
- Split Ratio: Supports up to 1: 128 splitting ratio.(Note: The actual splitting ratio depends on the optical module type and fibre distance.)
- Optical module management: support query optical module parameters: temperature, bias current, voltage, receive optical power, send optical power.
- RSSI detection
- Optical module lighting control
- Temperature query and high-temperature alarm
- High-temperature automatic shutdown
Huawei XEBD 10G Service Board and Concerning Boards
| GPBD | 8GPON Port (SFP Optical Module:Class B+,C+,C++), Version 802/805/806/807 |
| GPBH | 8GPON Port (SFP Optical Module:Class B+,C+,C++),Version 806/807 |
| EPBD | 8EPON Port (SFP Optical Module:PX20+), Version 802/808/809 |
| EPSD | 8EPON Port (SFP Optical Module:PX20+), |
| GPFD | 16GPON Port (SFP Optical Module:Class B+,C+,C++), |
| EPFD | 16EPON Port (SFP Optical Module:PX20+), |
| XGBD | 8*10G GPON Port (SFP Optical Module:XGPON N1/XGPON N2), |
| XEBD | 8*10G EPON Port (SFP Optical Module:10GEPON PRX30/10GEPON PR30), |
| GPHF | 16 GPON Port (SFP Optical Module:Class B+,C+,C++), |
| GPSF | 16 GPON Port (SFP Optical Module:Class B+,C+,C++), |
| GPLF | 16 GPON Port (SFP Optical Module:Class B+,C+,C++), |
| EPHF | 16 EPON Port (SFP Optical Module:PX20+), |
| XEHD | 8 10G EPON Port (SFP Optical Module:PX30 PRX30), |
| XELD | 8 10G EPON Port (SFP Optical Module:PX30 PRX30), |
| XGHD | 8 XG-PON Port (SFP Optical Module:XGPON N1), |
| XGLD | 8 XG-PON Port (SFP Optical Module:XGPON N1), |
| XGLF | 16 XG-PON Port (SFP Optical Module:XGPON N1), |
| XGSF | 16 XG-PON Port (SFP Optical Module:XGPON N1), |

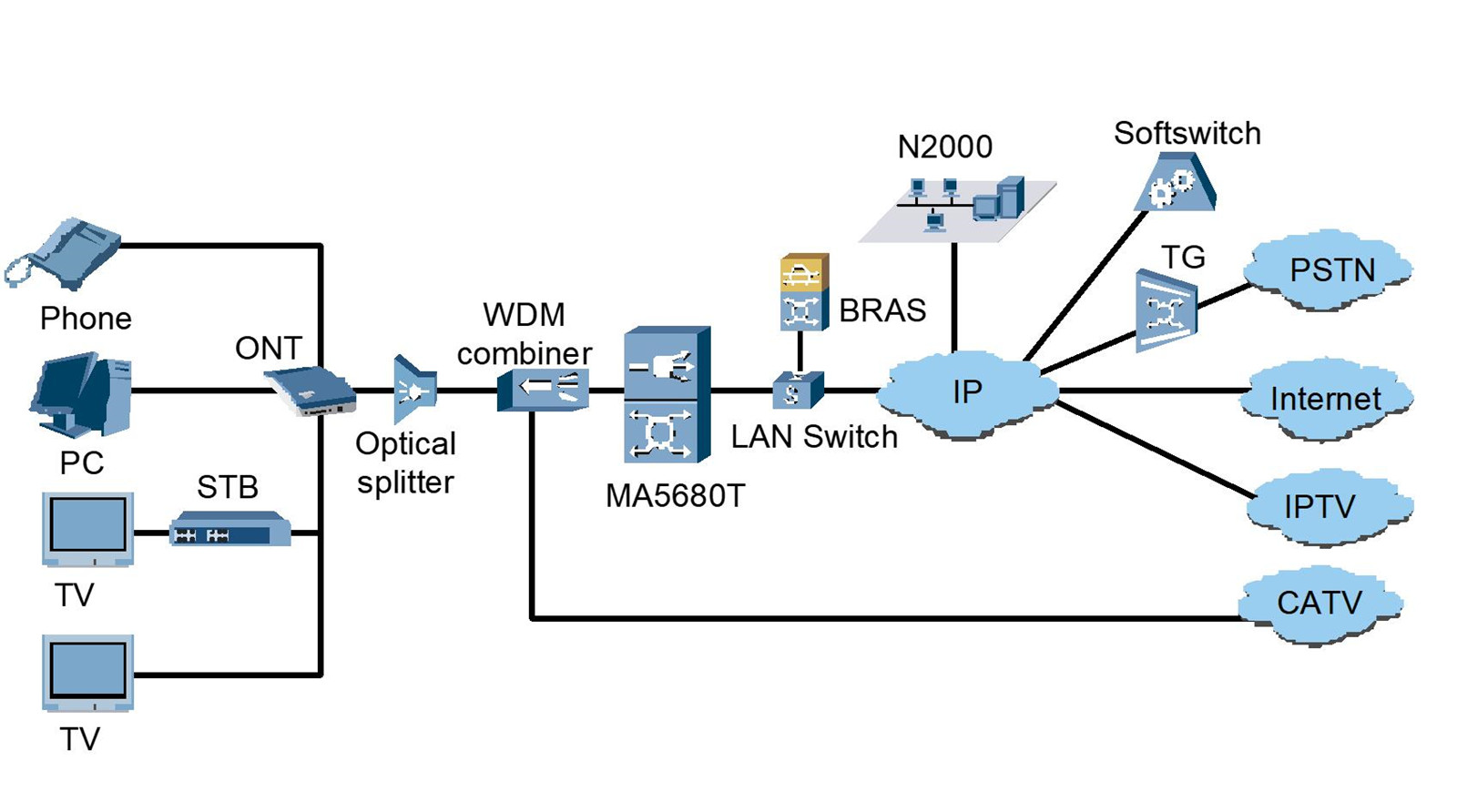

Huawei XEBD 10G Service Board Product Application
Huawei XEBD 10G Service Board Product Overview H802XEBD H801XEBDwiki
