Huawei XGBD 10G Service Board Product Overview H802XGBC H801XGBD
Huawei XGBD 10G Service Board is an 8-port 10G GPON interface card and provides 10G GPON service access for ONT products. This board can maximum access 8*256 10G GPON subscribers. Huawei OLT is the global first optical line terminal which integrates the functionality of the aggregation switch and edge router. It can provide high-density GPON, 10GPON and Ethernet P2P optical access, triple-play service, TDM/ATM/Ethernet leased line services for business customers and high precision clock, and high-density GE/10GE interfaces for cascading remote access equipment.

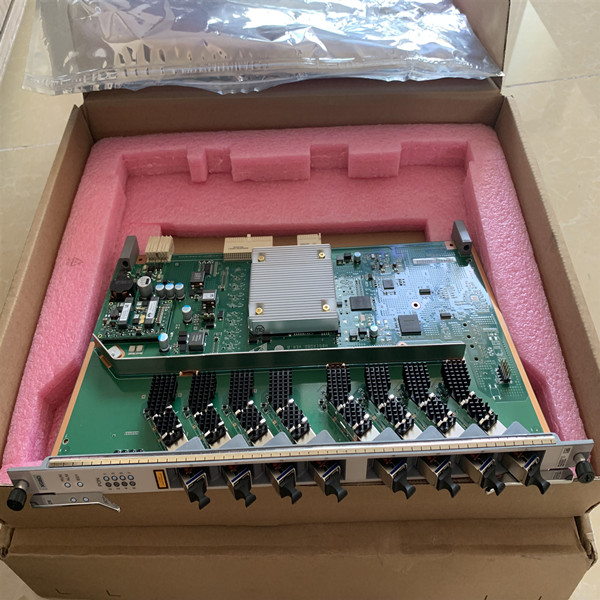

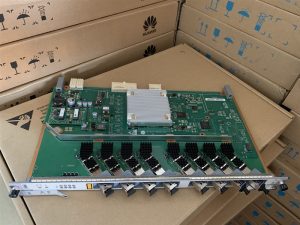

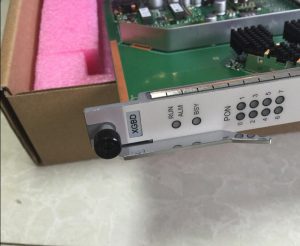

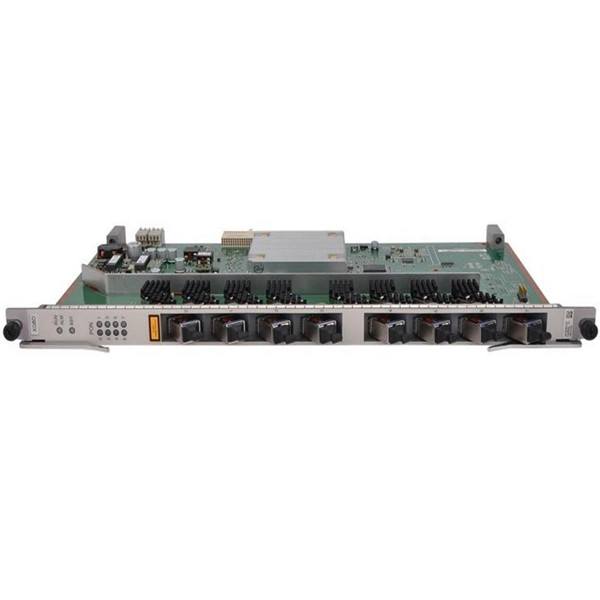

Huawei XGBD 10G Service Board Product Picture
Product Specifications
| Interface Model | H801XGBD | H802XGBC |
| Port | 8 | 4 |
| Port Type | SFP+。 | XFP。 |
| SFP | Single-fibre bidirectional 10G GPON OLT optical module. | Single-fibre bidirectional 10G GPON OLT optical module. |
| GEM Port | Each port supports 3840 GEM Ports. | Each port supports 3840 GEM Ports. |
| T-CONT | Each port supports 2048 T-CONTs. | Each port supports 2048 T-CONTs. |
| Split ratio | Supports a maximum of 1:256 split ratio. | Supports a maximum of 1:256 split ratio. |
| The actual split ratio depends on the optical module model and fibre distance. | The actual split ratio depends on the optical module model and fibre distance. | |
| Optical module management | Supports querying optical module parameters: temperature, bias current, voltage, received optical power, and transmitted optical power | Supports querying optical module parameters: temperature, bias current, voltage, received optical power, and transmitted optical power |
| RSSI detection, light module illumination control | Support | Support |
| Temperature query and high-temperature alarm | Support | Support |
| High-temperature automatic shutdown | Support | Support |
Product Features
- Support 8 10G GPON SFP interfaces
- Support single fibre bi-directional 10G GPON OLT optical module
- Support up to 1: 256 splitting ratio. (Note: The actual splitting ratio depends on the optical module type and fiber distance.)
- support query optical module parameters: temperature, bias current, voltage, receive optical power, send optical power.
- Support RSSI detection
- Support optical module lighting control
- Support temperature query and high-temperature alarm
- Support high-temperature automatic shutdown
Huawei XGBD 10G Service Board and concerning Boards
| GPBD | 8GPON Port (SFP Optical Module:Class B+,C+,C++), Version 802/805/806/807 |
| GPBH | 8GPON Port (SFP Optical Module:Class B+,C+,C++),Version 806/807 |
| EPBD | 8EPON Port (SFP Optical Module:PX20+), Version 802/808/809 |
| EPSD | 8EPON Port (SFP Optical Module:PX20+), |
| GPFD | 16GPON Port (SFP Optical Module:Class B+,C+,C++), |
| EPFD | 16EPON Port (SFP Optical Module:PX20+), |
| XGBD | 8*10G GPON Port (SFP Optical Module:XGPON N1/XGPON N2), |
| XEBD | 8*10G EPON Port (SFP Optical Module:10GEPON PRX30/10GEPON PR30), |
| GPHF | 16 GPON Port (SFP Optical Module:Class B+,C+,C++), |
| GPSF | 16 GPON Port (SFP Optical Module:Class B+,C+,C++), |
| GPLF | 16 GPON Port (SFP Optical Module:Class B+,C+,C++), |
| EPHF | 16 EPON Port (SFP Optical Module:PX20+), |
| XEHD | 8 10G EPON Port (SFP Optical Module:PX30 PRX30), |
| XELD | 8 10G EPON Port (SFP Optical Module:PX30 PRX30), |
| XGHD | 8 XG-PON Port (SFP Optical Module:XGPON N1), |
| XGLD | 8 XG-PON Port (SFP Optical Module:XGPON N1), |
| XGLF | 16 XG-PON Port (SFP Optical Module:XGPON N1), |
| XGSF | 16 XG-PON Port (SFP Optical Module:XGPON N1), |
Huawei XGBD 10G Service Board Product Application
