Huawei XELD 10G Service Board Product Overview

Huawei XELD 10G Service Board is 8 Ports10GE Epon Service card for Huawei MA5680 OLT

Huawei SmartAX MA5800 series OLT products include MA5800-X17, MA5800-X15, MA5800-X7, and MA5800-X2 models.

The MA5800 multi-service access device is the industry’s first distributed architecture intelligent aggregation OLT platform, positioned as the next-generation OLT for NG-PON. The MA5800 is dedicated to helping customers build a “broader, faster, smarter” access network that provides a better business experience for their users.

The MA5800 provides GPON, XG-PON, XGS-PON, 10G-EPON, and P2P 10GE/GE access, and supports multiple network construction modes including FTTH, FTTD, FTTB, and FTTC to meet home access and enterprise access. The requirements of various service scenarios, such as mobile bearer and Wi-Fi hotspot backhaul, realize a full service of the optical fiber network.

The MA5800 combines the functions of an OLT and an aggregation switch to support unified aggregation of ONTs, MDUs, and campus switches as a large-capacity aggregation device, helping to simplify the network architecture and reduce OPEX.

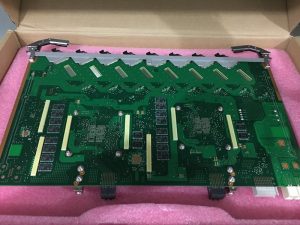

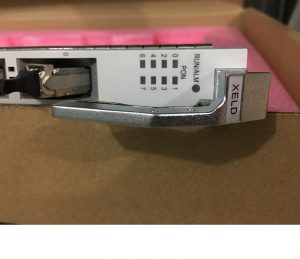

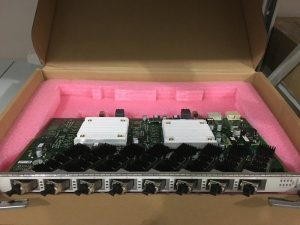

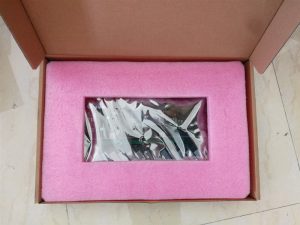

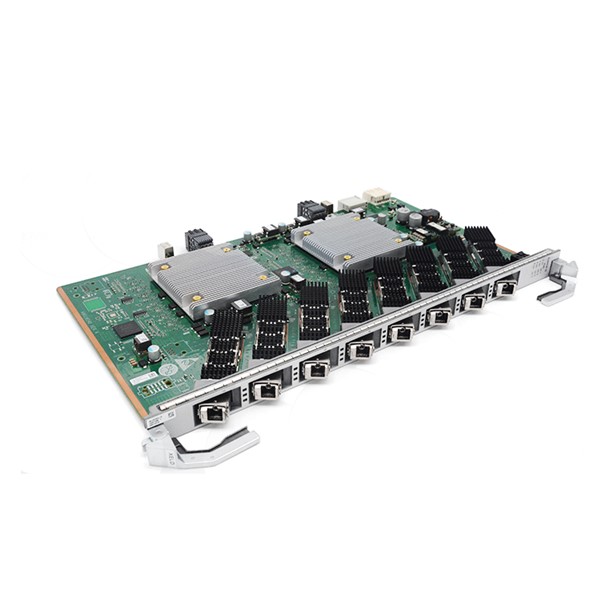

Huawei XELD 10G Service Board Product Pictures

Product Specifications

BrandHuawei
SpecificationXELD
Port quantity8
MAX Split ratio 1: 128
Forwarding Rate80Gbit/s
Rate modelSymmetric Rate model
Asymmetric Rate Model
Maximum Number of LLID256
Maximum Number of Service Flows Supported by the Board16368
Maximum frame length2052 bytes
Maximum Number of MAC16384
Maximum differential fibre distance (km)60
Working temperature-40℃-+65℃
Maximum Power waste65w
Dimensions (W x D x H)490 mm x 325mm
High-temperature automatic concernYes
Rogue ONT Detection and Isolation SupportYes
Board supporting downstream FECYes
Board supporting upstream FECYes

Product Feature

  • Supports 8 10G EPON SFP interfaces
  • Support single fibre bi-directional 10G EPON OLT optical module
  • Supports up to 1: 128 splitting ratio. (Note: The actual splitting ratio depends on the optical module type and fiber distance.)
  • support query optical module parameters: temperature, bias current, voltage, receive optical power, send optical power.
  • Supports RSSI detection
  • Supports optical module lighting control
  • Support temperature query and high-temperature alarm
  • Support high-temperature automatic shutdown
  • Supports up and down rate symmetry mode and asymmetric rate mode
  • Supports Type B single home protection

Huawei XELD 10G Service Board and More Service Board

GPBD8GPON Port (SFP Optical Module:Class B+,C+,C++), Version 802/805/806/807
GPBH8GPON Port (SFP Optical Module:Class B+,C+,C++),Version 806/807
EPBD8EPON Port (SFP Optical Module:PX20+), Version 802/808/809
EPSD8EPON Port (SFP Optical Module:PX20+)
GPFD16GPON Port (SFP Optical Module:Class B+,C+,C++)
EPFD16EPON Port (SFP Optical Module:PX20+)
XGBD8*10G GPON Port (SFP Optical Module:XGPON N1/XGPON N2)
XEBD8*10G EPON Port (SFP Optical Module:10GEPON PRX30/10GEPON PR30)
GPHF16 GPON Port (SFP Optical Module:Class B+,C+,C++)
GPSF16 GPON Port (SFP Optical Module:Class B+,C+,C++)
GPLF16 GPON Port (SFP Optical Module:Class B+,C+,C++)
EPHF16 EPON Port (SFP Optical Module:PX20+)
XEHD8 10G EPON Port (SFP Optical Module:PX30 PRX30)
XELD8 10G EPON Port (SFP Optical Module:PX30 PRX30)
XGHD8 XG-PON Port (SFP Optical Module:XGPON N1)
XGLD8 XG-PON Port (SFP Optical Module:XGPON N1)
XGLF16 XG-PON Port (SFP Optical Module:XGPON N1)
XGSF16 XG-PON Port (SFP Optical Module:XGPON N1)

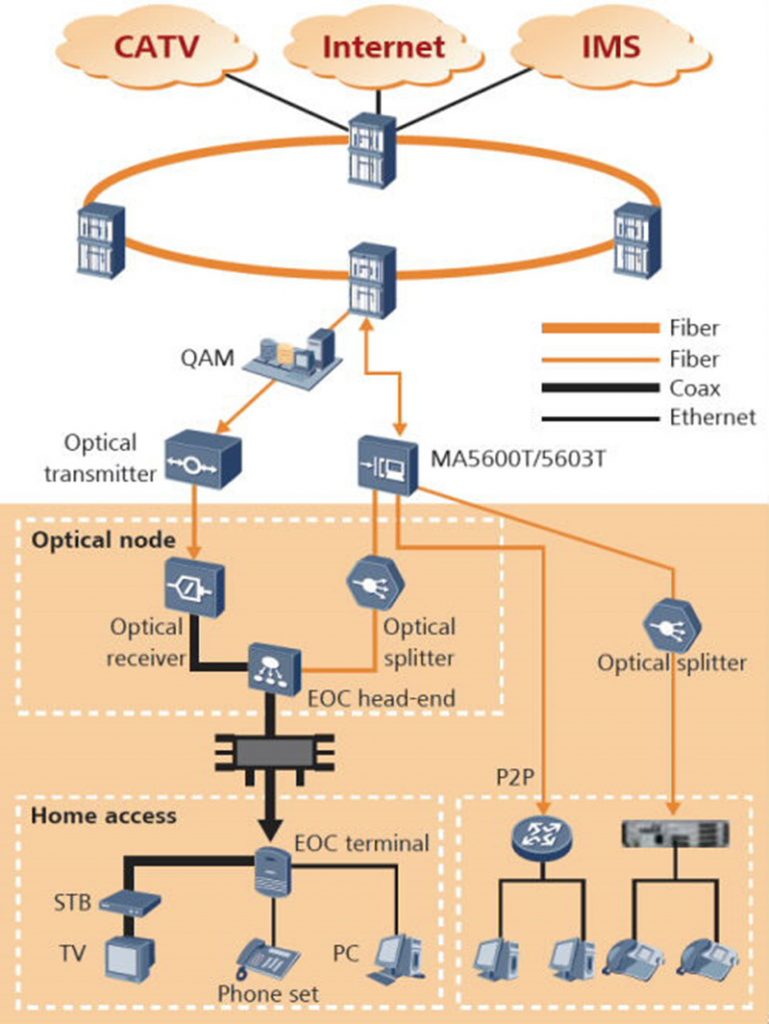

Huawei XELD 10G Service Board Product TOPOLOGY

Huawei XELD 10G Service Board Product TOPOLOGY
