- Description

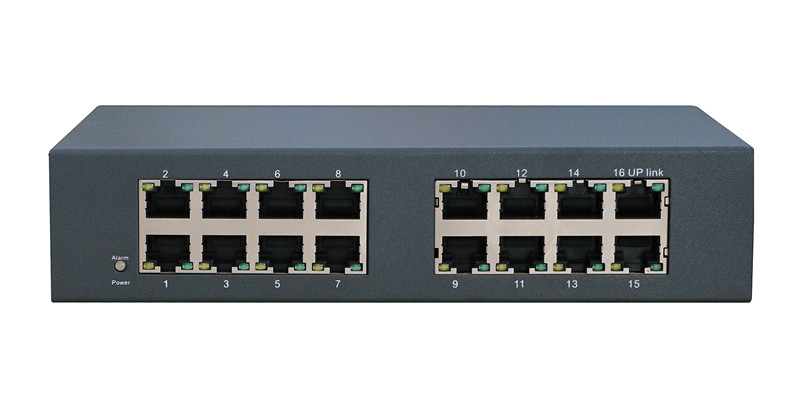

16 Ports Operational FE PD switch
applied to integrated power, cure VLAN, anti DHCP conflict, anti ARP attack,
anti broadcast network storm, anti APF virus attack, anti ring network, improves network security.
Main Features
◆ 16FE.
◆ 3.2G bus.
◆ DC 12V MAX2A, 5V/12V/9V
◆ 4 core (12 36-) or 8 core (45 78-) dual power supply.
◆ Hardware curing isolation VLAN.
◆ Anti DHCP conflict, ARP attack, broadcast network storm, APF virus attack, and ring network, cure VLAN.
◆ Anti ring network, open loop network.
◆ Fully enclosed metal RJ45, reduce electromagnetic radiation.
◆ Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.
◆ SC-ST 25KM.
◆ Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
◆ Auto MDI/MDIX.
◆ Upstream port lightning protection.
◆ Store-And-Forward.
◆ Imported TVS crystal, fast response, protective switch and electrical equipment.
◆ All ports support wire speed switch, 64 - /2048 frame length can reach the line speed.
◆ LED indicators for monitoring power, link, activity and speed.
100M Rj45
16
Function
Exchange
Mechanism
Store-And-Forward
Exchange Capacity
3.2G
MAC
8K
Functional Features
1-24 Full Port Electrify
DC 12V/5V/9V 2A
Solidified VLAN isolation
Anti ring network alarm, Ring network disconnection
Anti DHCP conflict
Anti ARP attack
Broadcast network storm
Environmental
Working Temperature：0℃-40℃
Storage temperature ：-40℃-70℃
Working Humidity ：10%-90% RH non-condensing
Storage Humidity：5%-90% RH non-condensing
POE
1-24 Port customized port output POE
45+ 78-
12+ 36-
DC 12-57V
power
DC 12V MAX2A 5.5/2.1mm
Network protocol
IEEE 802.3X
IEEE 802.3i 10BASE-T X
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow control
Default
Mode
PD switch/VLAN isolation either-or delivery configuration
Speed
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
Network Media
10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m)
100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m)
Physical Specifications
Product Size：200mm*155mm*45mm(L*W*H)
0.7kg
