What Is SDI Two Way Fiber Optic Extenders
SDI Two Way Bidirectional Over Fiber Optic Extenders This 3G/HD-SDI over fiber system is used to send one channel 3G/HD-SDI signal in two way (bidirectional) over single Fiber optic to remote video display devices, Long working distance, singlemode fiber up to 20Km, multimode fiber up to 500m. SDI signal with embedded audio signal.The system support signals accord with standards of SMPTE292M,SMPTE259M,SMPTE297M,SMPTE310, SMPTE305 and support digital TV signals such as DVB-ASI meeting the industrial requirements of audio and video equipment with high performance and reliability.

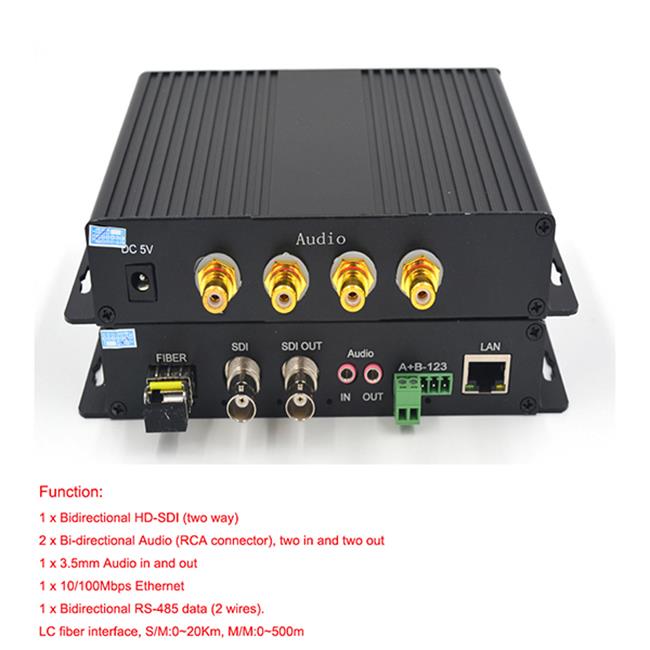

Function:
1x Bidirectional HD-SDI(two way)
1x 10/100Mbps Ethernet
2x RCA Audio (bidirectional), 2 in and 2 out
1x 3.5mm Audio in and out
1x RS-485 data (bidirectional)
LC fiber interface, S/M: 0-20Km,M/M:0-500m
Two versions options: HD-SDI and 3G-SDI,
HD-SDI version: Support HD-SDI camera, Video resolution up to [email protected] and [email protected] backward compability.
3G-SDI version: Support 3G-SDI and HD-SDI camera, Video resolution up to [email protected] and [email protected],backward compability.

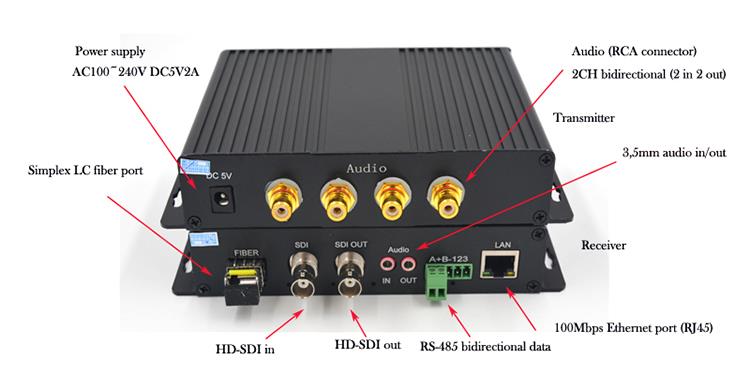

SDI Two Way Bidirectional Over Fiber Optic Extenders Ports

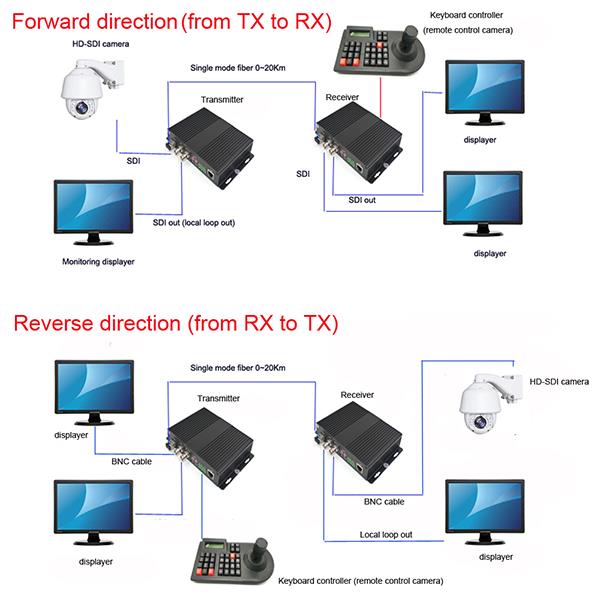

SDI Two Way Bidirectional Over Fiber Optic Extenders DiagramFeatures:
1. Fiber interface LC. Long transmission distance: single-mode fiber up to 20Km(12.4miles),multimode fiber up to 500m(1640feet). Suitable fiber type: universal singlemode and multimode fiber.
2. HD-SDI version Support video resolution: [email protected] and [email protected] max; 3G-SDI version Support video resolution: [email protected] and [email protected] max.
3. Plug and play.
Package Include:
1 x 3G/HD-SDI Transmitter
1 x 3G/HD-SDI Receiver
2 x SFP module.
2 x Power supply adaptor AC100-240V DC5V/2A (US/EU/UK/AU available )
1x User Manual
