What Is 4 Channels 3G SDI To Fiber Optic Media Converters
4 channels 3G-SDI over Fiber Optic Media Converters ,with 10/100Mbps Ethernet, Long working distance up to 20Km by a single singlemode fiber optic cable.FC optical interface.Support [email protected] max and compatible with backward,and support [email protected],[email protected] and backward. OEM/Custom made is acceptable.
The item is 4 channels of 3G-SDI over a singlemode fiber transmitter and receiver extender kit. This unit provides optical transmission of four 3G-SDI or HD-SDI signal with embedded audio signal and 1 channel 10/100Mbps on the transmitter & receiver for monitoring, The system support signals accord with standards of Support 1080i 59.94 and embedded audio. and support SMPTE424M、SMPTE292、SMPTE295M、SMPTE297M、SMPTE305M、SMPTE310M AND DVB-ASI（EN50083-9）and support digital TV signals such as DVB-ASI meeting the industrial requirements of audio and video equipment with high performance and reliability.
In addition, our innovative video, audio and data media transport system was designed to maintain lossless fiber extension between input and output signals. The plug-and-play design makes the installation convenient and easy, the LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment. Signal Bit Rate from 270 Mbps to 2.97Gbps. Fiber optical transmission excludes electromagnetic noise factor, it makes this product a perfect solution for efficient, reliable and secured HD-SDI signal transport.
Function:
4x 3G-SDI (forward directional, from TX to RX )
1x 10/100Mbps Ethernet (RJ45 port)
FC optical interface, Singlemode Fiber up 20Km, compatible with multimode fiber up 300meters .

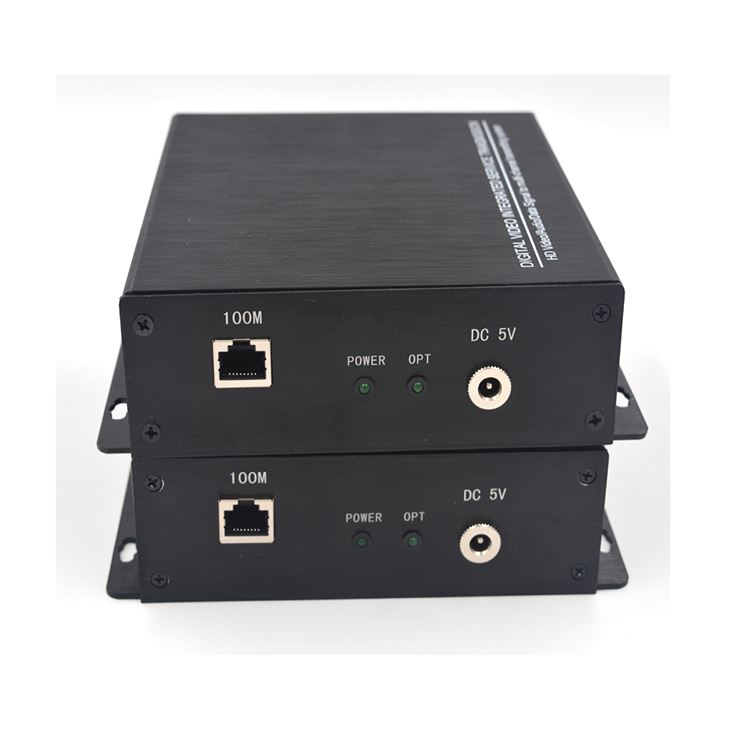

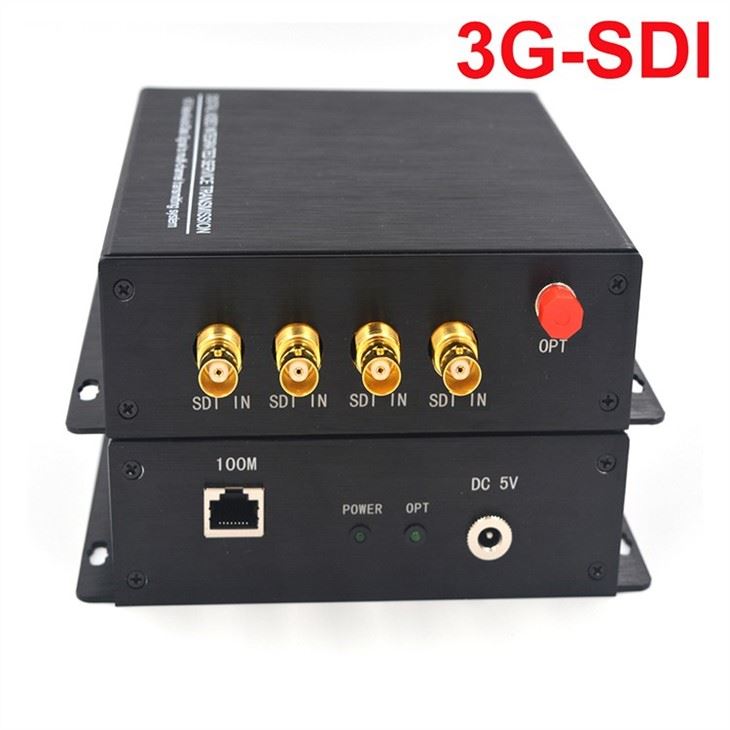

4 Channels 3G SDI To Fiber Optic Media Converters

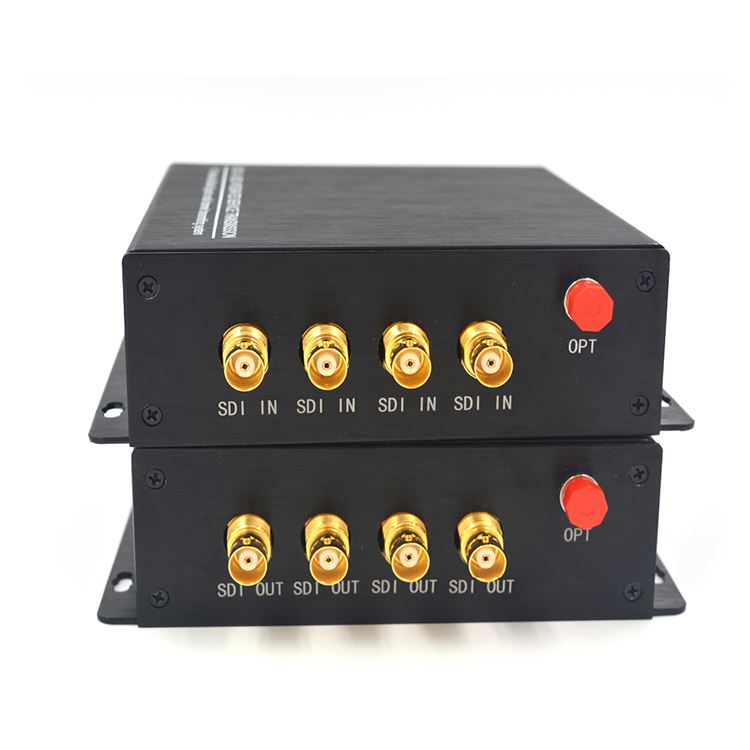

4 Channels 3G SDI To Fiber Optic Media Converters

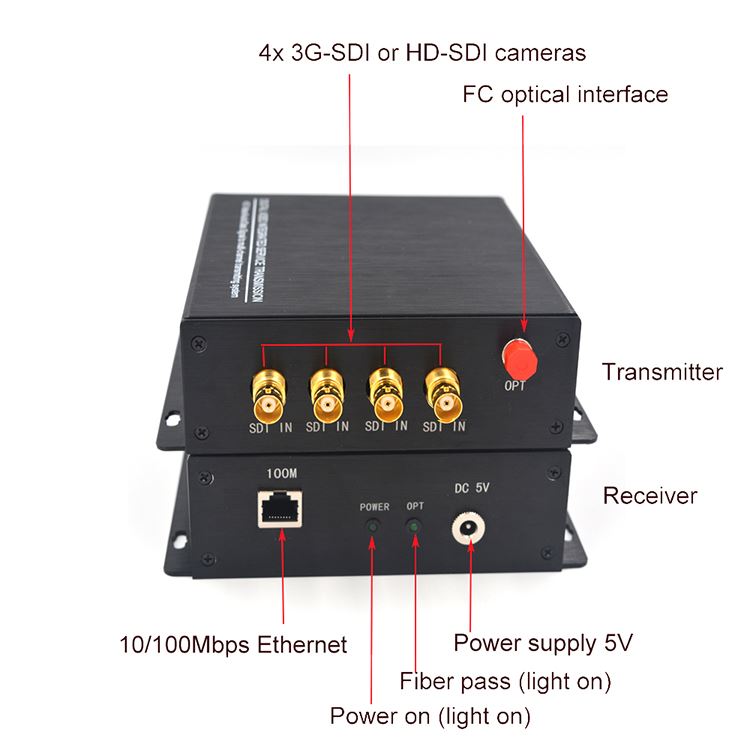

4 Channels 3G SDI To Fiber Optic Media Converters Ports

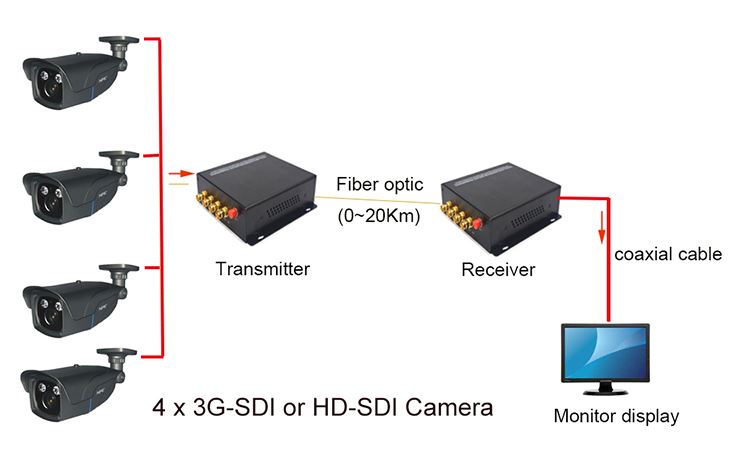

4 Channels 3G SDI To Fiber Optic Media Converters Diagram

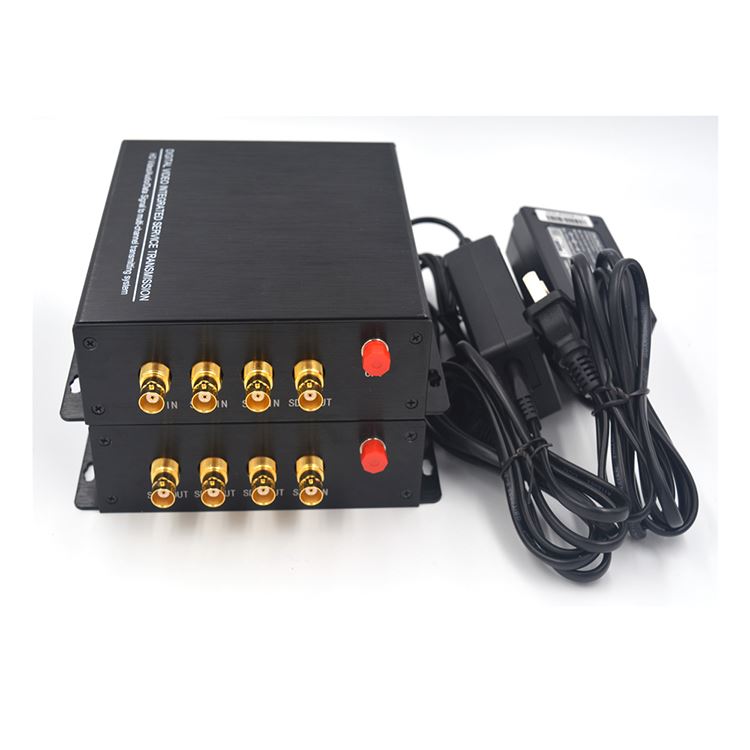

4 Channels 3G SDI To Fiber Optic Media Converters PackFeatures:
1. Support 3G-SDI (2.97Gbps) and HD-SDI (1.485Gbps) video format Style.
2. Support 10/100Mbps Ethernet, for remote ethernet networking extending ,it also can use for IP cameras with RJ45 ports for remote control.
3. Support resolution up to [email protected] and compatible with backward, 1080i 59.94,1080i 60 and backward.
4. Long Working distance: Single-mode fiber 0-20Km (12.4miles). compatible with multimode up to 300meters.
5. The broadcast signal quality, fully compliant SMPT standard;
6. The maximum cable length: SD 400m; HD 200M; 3G 140M;
7. Singlemode 1310nm/1550nm
8. Voltage:AC100V-240V,DC5V/2A
9. Package: carton box
Package Include:
1 x 4CH 3G-SDI Transmitter
1 x 4CH 3G-SDI Receiver
1 x 3m FC/FC fiber optic patch cable
2 x Power adaptor AC100-240V DC5V/2A ( US, EU/UK/AU optional)
1x Manual
