Mini SDI Over Fiber Optic Extender

What Is Mini SDI to Fiber Optic Extender

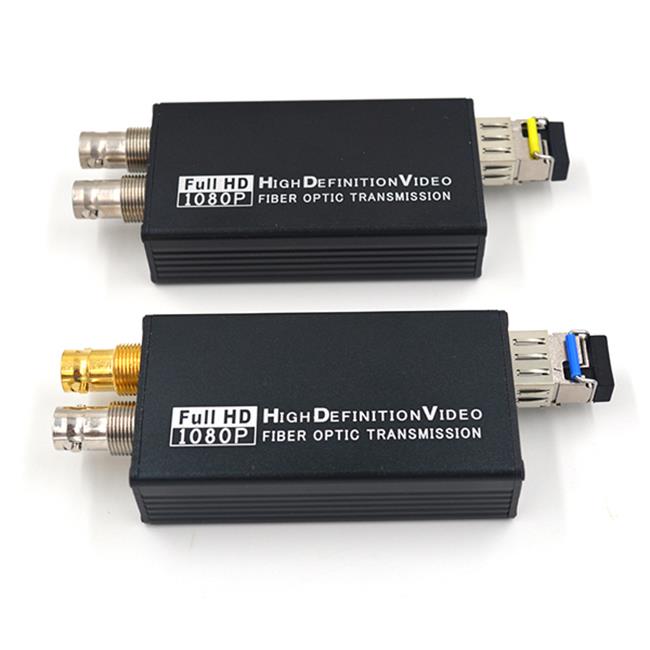

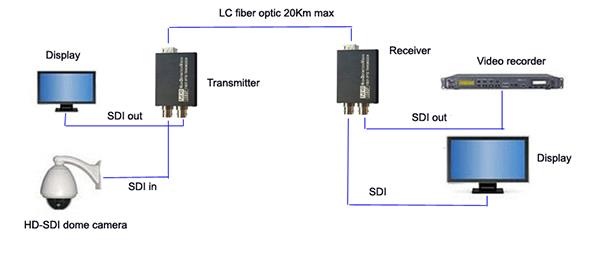

HD multimedia monitoring should be the system, often need to high-definition non-compressed digital audio and video signal source long-distance transmission. But the use of ordinary cable long distance transmission, there will always be poor signal, easily disturbed and so on; while transmission distance is short, can not meet the multimedia information release and other occasions long distance requirements. The use of 3G / HD-SDI-T / R optical transmission 3G / HD-SDI signal, completely solve this problem, the transmission distance of 1-20KM. At the same time, optical transmission with attenuation, frequency bandwidth, strong anti-interference, high security, small size, light weight and other advantages. So in the long-distance transmission and special environment, etc. can not match the advantages. In addition, 3G / HD-SDI equipment in the multimedia system, that is, to save construction costs and the complexity of the alignment, but also to ensure high-quality target possible.

Features:

1. Support video resolution up to 1920*[email protected] (HD-SDI); 1920*[email protected] (3G-SDI)

2. Suitable for universal singlemode and multimode fiber optic ,Long working distance, S/M up to 20Km, M/M up to 300meters.

3. Optional function: tally

4. Automatic adapt to SDI 270Mbps, 1.4835Gbps, 1.485Gbps, 2.967Gbps, 2.97Gbps;

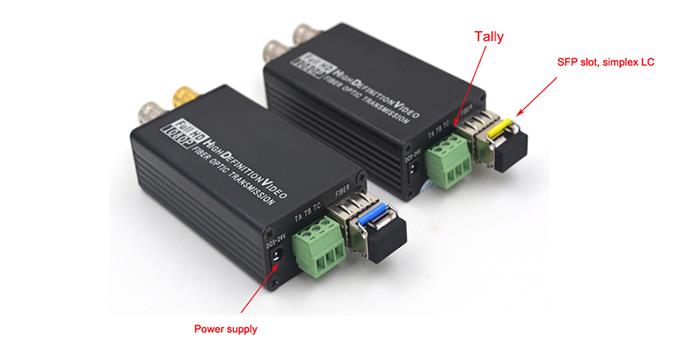

5. Optical interface: SPF simplex LC

6. The Wavelength: Single mode 1310/1550 nm.

7. LED indication: “SDI” light for video signal lamp ;”PWR/D” light for the system indicator;

8. High compatibility, can auto-match source and display device;

9. Built-in automatic adjustment system, make the image smooth, clear and stable;

10. Built-in ESD( (Electro-Static discharge) protection system;

11. Simple to install, plug and play.

Please let us know which version you need before order,

Optional version:

1. HD-SDI

2. HD-SDI with tally

3. 3G-SDI

4. 3G-SDI with tally

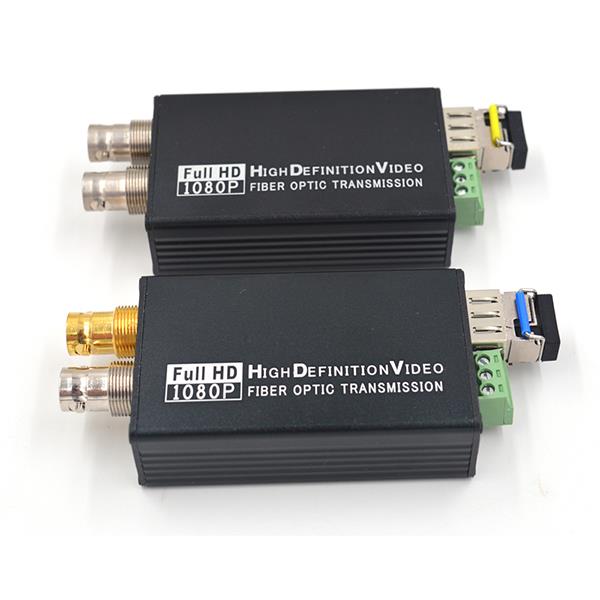

5. HD-SDI with RS485/tally

6. 3G-SDI with RS485/tally

Specifications:

Reflection loss: >15DB

Connector: 75Ω BNC

Suitable fiber type: universal single mode single fiber or multimode.

Working wavelength: 1310nm / 1550nm

Reflection loss: > 15dB

Jitter:

Connector: LC/UPC

Signal level: 800mV nominal

Rise/fall time: 200ps nominal

Overshoot:

Electrical index

Working temperature: -25 ° C - +70 ° C

Power supply voltage: AC100-240V, DC5-12V1A

Power consumption: 1W

Mean time between failures >100,000 hours

LED indicators instruction:

Transmitter indicators instruction:

1. PWR / D – power data indicator, power green, red and green when there is data.

2. SDI – SDI signal lights, green when a signal, no signal is red.

Receiver indicators instruction:

1. PWR / D – power data indicator, power green, red and green when there is data.

2. SDI – fiber optic signal lights, green when a signal, no signal red.

Package Include:

1 x Transmitter

1 x Receiver

2 x SFP module

1 x 3M LC/LC singlemode fiber patch cord

2 x Power supply adaptor (US/EU/UK/AU available)
