Two Way Bidirectional HD-SDI Over Fiber Extenders The item is bidirectional HD-SDI over one fiber optic for remote video/audio transmission, it can transmission SDI signal at two directions synchronously through same optical fiber cable. 3 HD-SDI one direction,1 HD-SDI other direction, with local loop out . SDI is with embedded audio signal. Working distance can be extended to 20Km through one singlemode fiber cable, also compatible with multimode fiber 0-500mts. the device can be widely used in TV live broadcast, high-definition video conference, high-definition video surveillance and other fields.

Besides, our innovative video, audio and data media transport system is designed to maintain lossless fiber extension between input and output signals. The plug-and-play design makes the installation convenient and easy, the LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment. Signal Bit Rate from 270 Mbps to 1.5Gbps. Fiber optical transmission excludes electromagnetic noise factor, it makes this product a perfect solution for efficient, reliable and secured HD-SDI signal transport.

Overview:

The item is Bidirectional HD-SDI over one fiber optic for remote video/audio transmission, it can transmission SDI signal at two different directions synchronously through same optical fiber cable. with embedded audio signal. Working distance can be extended to 20Km through one singlemode fiber cable, also compatible with multimode fiber 0-500mts. the device can be widely used in TV live broadcast, high-definition video conference, high-definition video surveillance and other fields. Custom made is welcomed.

Function:

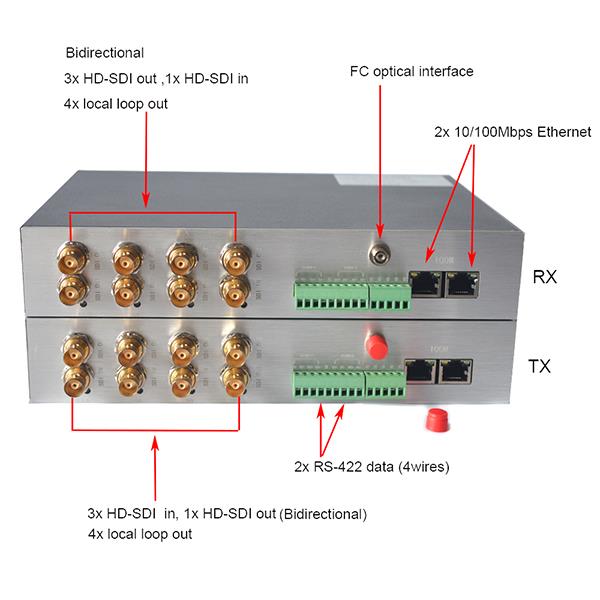

1. 3x HD-SDI (forward direction, from TX to RX)

2. 1x HD-SDI (reverse direction, from RX to TX)

3. 2x 10/100Mbps Ethernet

4. 2x RS-422 data (Bidirectional)

5. FC optical interface, Singlemode 0-20Km.

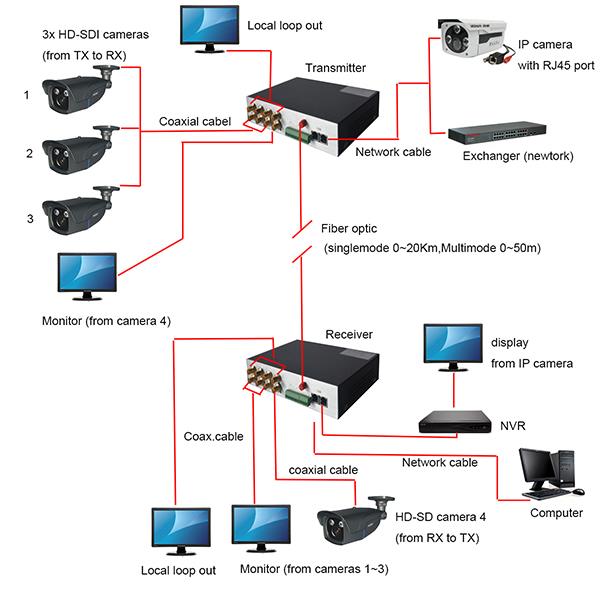

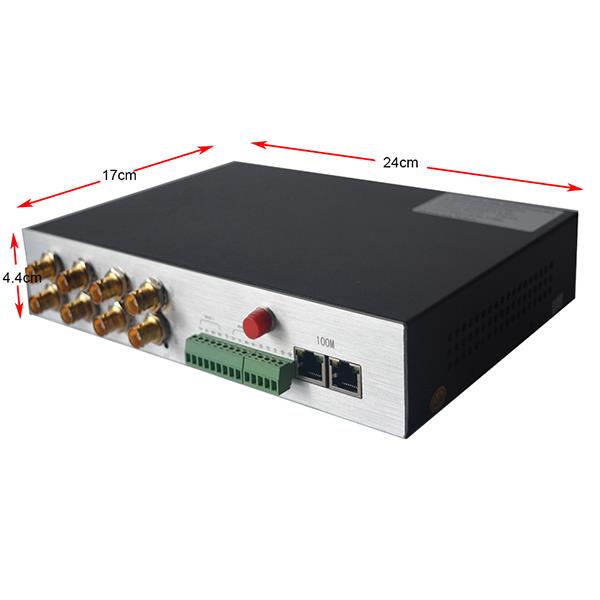

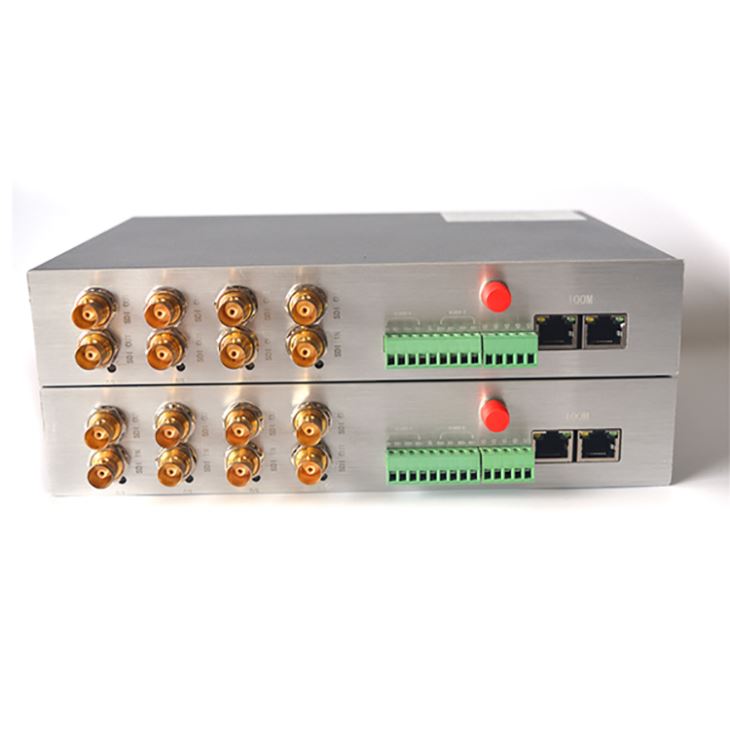

Two Way Bidirectional HD-SDI Over Fiber Extenders PortsTwo Way Bidirectional HD-SDI Over Fiber Extenders PackTwo Way Bidirectional HD-SDI Over Fiber Extenders SizeTwo Way Bidirectional HD-SDI Over Fiber Extenders Diagram

Features:

1. Compatible with SMPTE-292M HD-SDI standard signal, supporting 1485Mb/s rate

2. Supports [email protected], 25, 24, [email protected], 50, [email protected], 50, 30, 25, and other video formats.

3. Working distance: Singlemode 0-20Km, compatible with multimode 0-500mts.

4. Input has cable equalization function to compensate for cable transmission loss

5. Built-in ESD and surge protection circuit to prevent static electricity and lightning damage

6. Provide optical disappearance alarm, remote power failure alarm, output signal status indication, and input signal lock status indication

Specification:

1. Support HD-SDI (1.485Gbps) cameras, 3G-SDI is optional.

2. Support Video format: [email protected], 25, 24, [email protected],59.94, 50, [email protected], 50, 30, 25 etc.

3. Working wavelength: 1310nm,1550nm

4. Optical interface: FC (SC/LC optional)

5. Data: RS-422 interface (4wires), Bidirectional. RS485/232 is optional.

6. Ethernet: 10/100Mbps ,RJ45 interface. use for remote networking transmission, also can use for IP camera for remote video display.

7. The broadcast signal quality, fully compliant SMPT standard;

8. Transmission distance : Singlemode 0-20Km, multimode 0-500m

9. Voltage: AC 220V (US/EU/UK/AU plug optional )

10. Package: carton box

Package Include:

1. 1 x HD-SDI Transmitter

2. 1 x HD-SDI Receiver

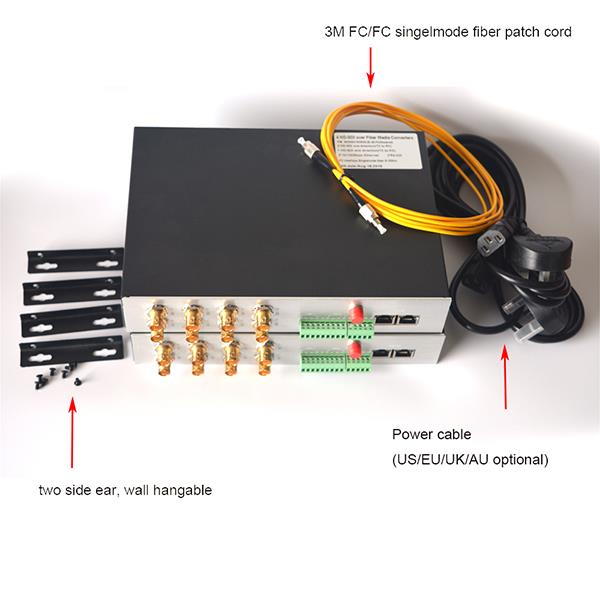

3. 1 x 3M FC/FC singlemode fiber patch cord

4. 4 x metallic ears for wall hanglable

5. 2 x Power cable (US/EU/UK/AU plug optional )

6. 1x Manual
