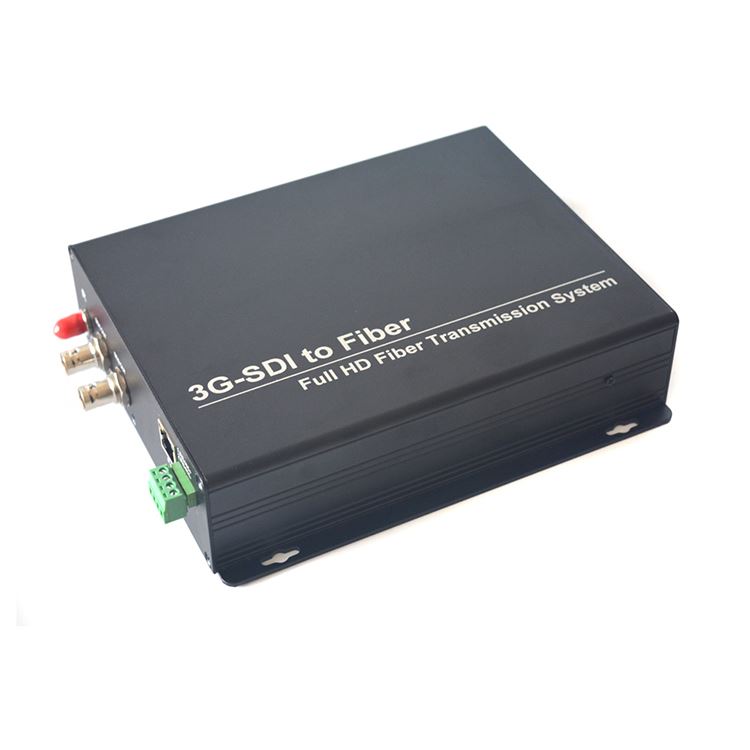

What Is 3G-SDI Video Over Fiber Optic Converters Extender
3G-SDI Video Over Fiber Optic Converters Extender,Broadcast grade. Uncompressed,Lossless HD transmission.
Function:
2x 3G-SDI (forward, compatible with HD-SDI and SD-SDI)
1x 10/100Mbps Ethernet
1x RS-485 data (reverse direction)
FC optical interface.
Singlemode 0-20Km, Multimode 0-500m.
Size: 192x167x45mm (LxWxH)
Features:
1. Broadcast Radio and television-grade optical fiber uncompressed real-time audio and video transmission equipment.
2. Single fiber optical transmission, 2 channels of forward 3G-SDI (ST/LC optical connector is optional).
3. Support ASI video signal format, compatible with HD-SDI, SD-SDI.
4. Support for broadcasting and TV recording resolution 1920*[email protected], support maximum resolution [email protected] Support resolution: 1080p60HZ/50HZ,1080P30HZ/25HZ,1080i60HZ/1080i 59.94/50HZ,720P60HZ/50HZ, 576i,480i.
5. Support signals accord with standards of SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI.
6. Support one reverse directional RS485 data.
7. Support one 100Mbps Ethernet.
8. Single-mode compatible, single-mode 20KM, multi-mode 500M.
9. Support long-distance transmission 20 kilometers.
10. Support hot swap.
11. With clock recovery, clock shaping.
12. Pass Pathological (extremely harsh environment) test.

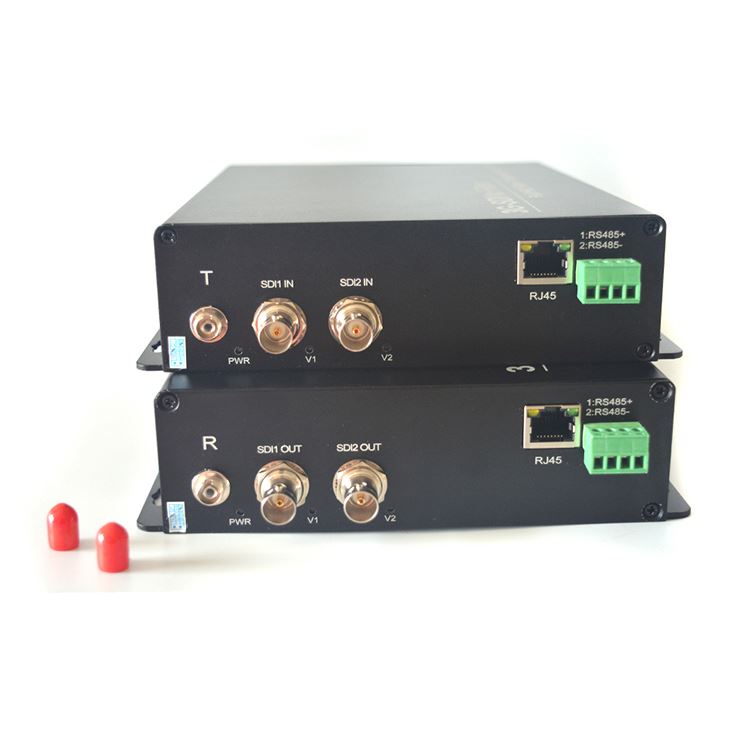

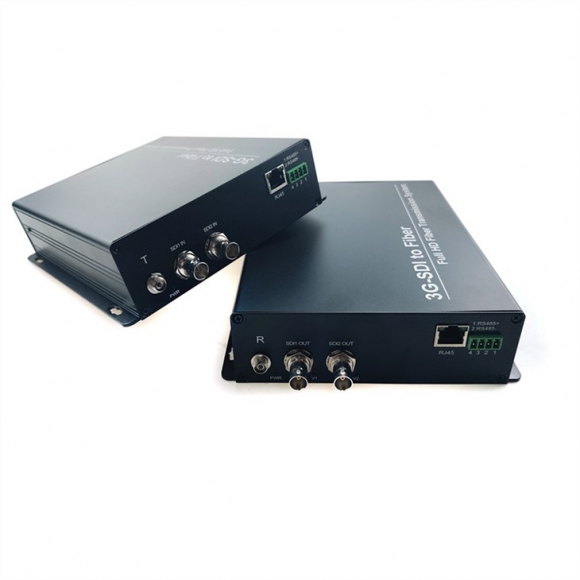

3G-SDI Video Over Fiber Optic Converters Extender
3G-SDI Video Over Fiber Optic Converters Extender

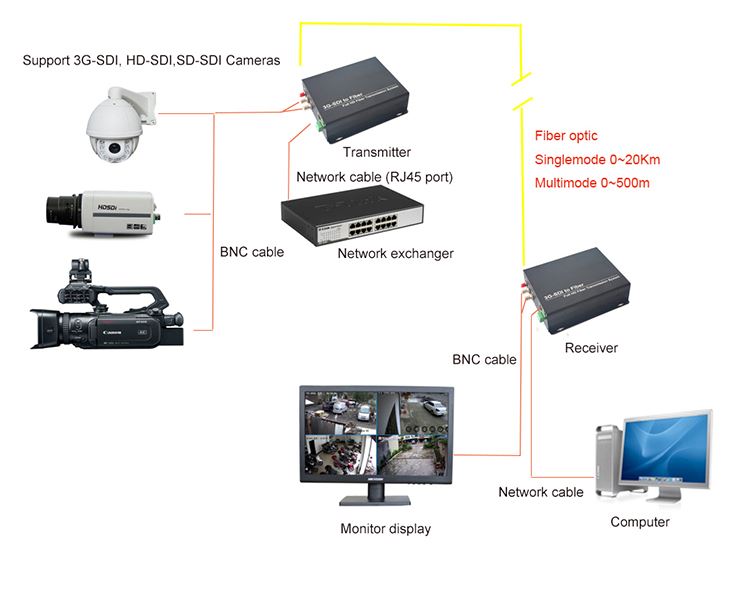

3G-SDI Video Over Fiber Optic Converters Extender DiagramData:
1. RS-485 (reverse direction, for remote control PTZ ).
2. Transfer Rate : 400Kbps.
3. Error rate : less than 10 square minus 9.
Power supply: AC100V-240V,DC5V 2A (US/EU/UK/AU standard is optional).

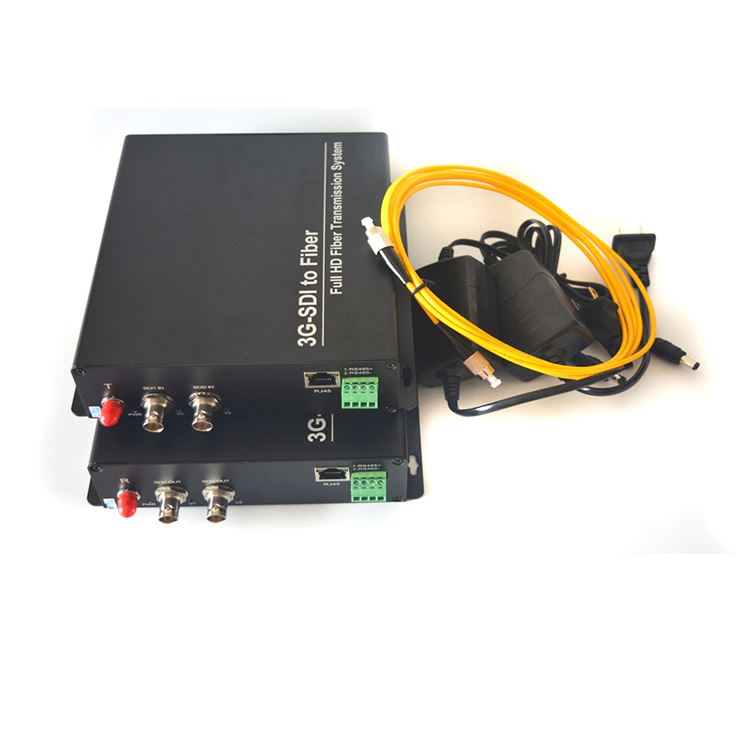

Packing Contents
1. 1 x 3G-SDI Transmitter
2. 1 x 3G-SDI Receiver
3. 2 x Power Supply adapter (default US standard, EU/AU/UK is optional)
4. 1x 3M FC-FC SM fiber patch cord.
5. User manual.
3G-SDI Video Over Fiber Optic Converters Extender Diagram Packwiki
