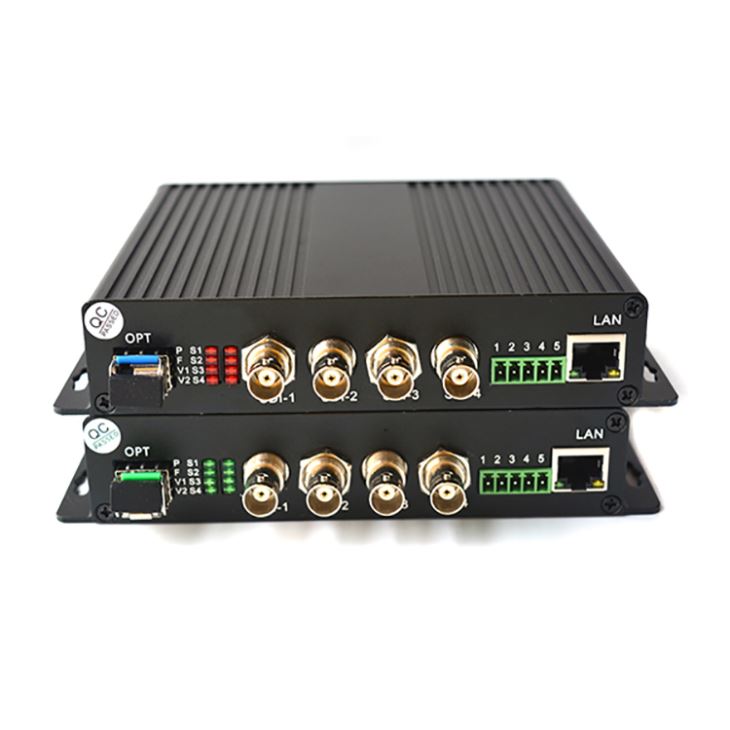

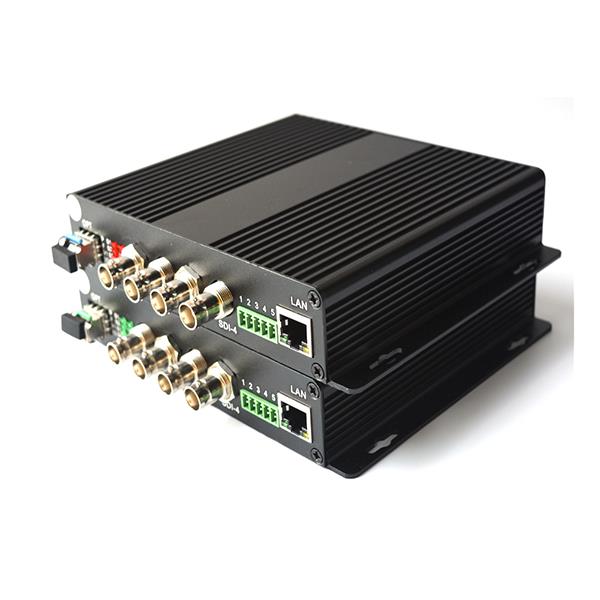

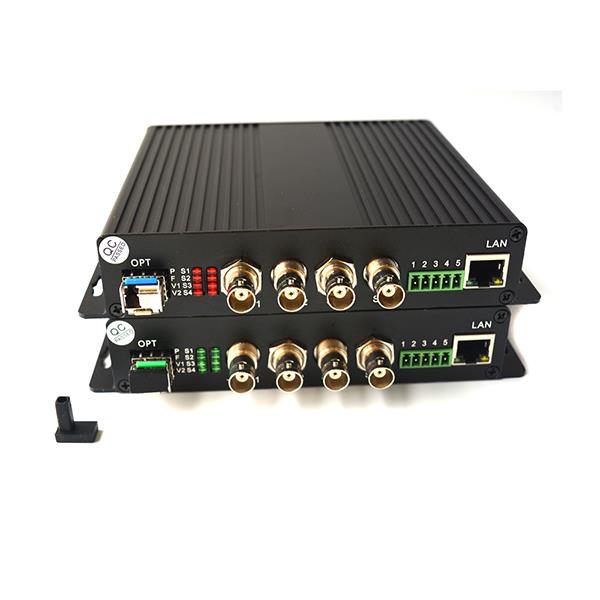

What Is 4 HD-SDI Over Fiber Optic Extenders 20Km
4 HD-SDI Over Fiber Optic Extenders 20Km This unit is used to send 4 channels of HD-SDI signals over a single fiber optic to remote display devices, HD-SDI signal with embedded audio signal. Long working distance, singlemode fiber up to 20Km (12.4 miles), multimode fiber up to 500meters (1640feet). LC fiber interface.
Feature:1. Support [email protected] and backward, [email protected], [email protected] and backward .
2. Support system SMPTE292M,SMPTE259M,SMPTE297M,SMPTE310, SMPTE305.
3. With one 10/100Mbps Ethernet on transmitter and receiver, far end to receive network signal for PC and IP camera.
4. With RS-485/422/232 optional
5. Plug and Play, no need to drive.
4 HD-SDI Over Fiber Optic Extenders
4 HD-SDI Over Fiber Optic Extenders

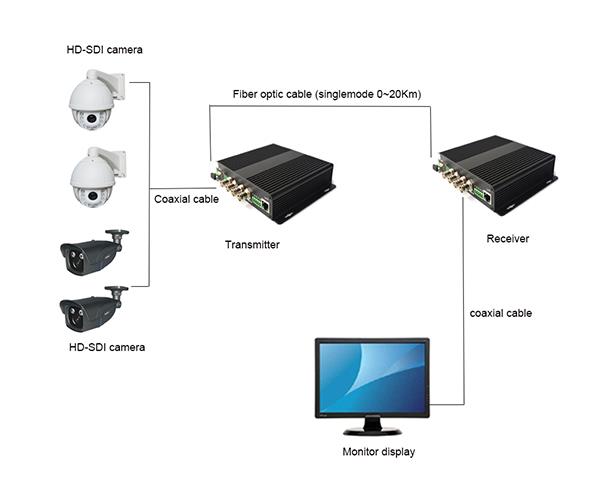

4 HD-SDI Over Fiber Optic Extenders DiagramGeneral specification:
● Singlemode 1310nm/1550nm
● Working voltage:AC100V-240V,DC5V/2A. Power supply adaptor US/EU/UK/AU optional.
● Package: carton box
Package Include:
1 x 4 HD-SDI Transmitter
1 x 4 HD-SDI Receiver
1 x 3m LC/LC fiber optic patch cable
2 x Power adapter
1x Manual
