What Is SDI HD Camera Over Fiber Media Converter Extender
HD SDI Fiber optical media converters Transmitter and Recevier for HD SDI CCTV,Video/Audio/Ethernet/RS485 Data over fiber optic up to 20Km, 40km/60km/80km optional. 3G-SDI is optional
A HD/SD-SDI over singlemode or multimode fiber transmitter and receiver extender kit. This unit provides optical transmission of one HD/SD-SDI signal with embedded audio signal and has bidirectional RS485 data(revese directional optional) channel for camera control also loop-out connectors on the transmitter & receiver for monitoring. The system support signals accord with standards ofSMPTE292M,SMPTE259M,SMPTE297M,SMPTE310, SMPTE305 and support digital TV signals such as DVB-ASI meeting the industrial requirements of audio and video equipment with high performance and reliability. In addition, our innovative QuestTel video, audio and data media transport system was designed to maintain lossless fiber extension between input and output signals. The plug-and-play design makes the installation convenient and easy, the LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment. Signal Bit Rate from 270 Mbps to 1.5Gbps. Fiber optical transmission excludes electromagnetic noise factor, it makes this product a perfect solution for efficient, reliable and secured HD/SD-SDI signal transport.
Function:1x HD-SDI in and local loop out
1x RS-485 data (bi-directional)
1x 10/100M Ethernet
1x 3.5mm Audio in and out
FC fiber interface (LC/ST/SC optional),Singlemode fiber 0-20Km,Multimode fiber 0-500m.

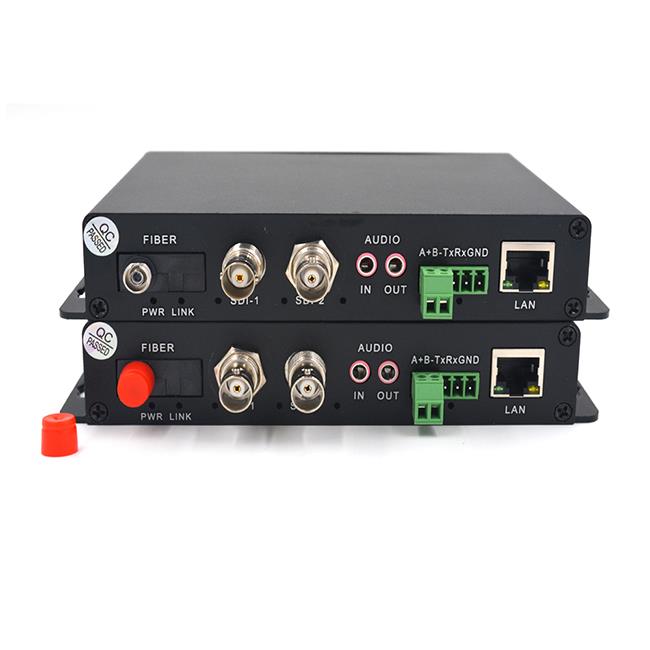

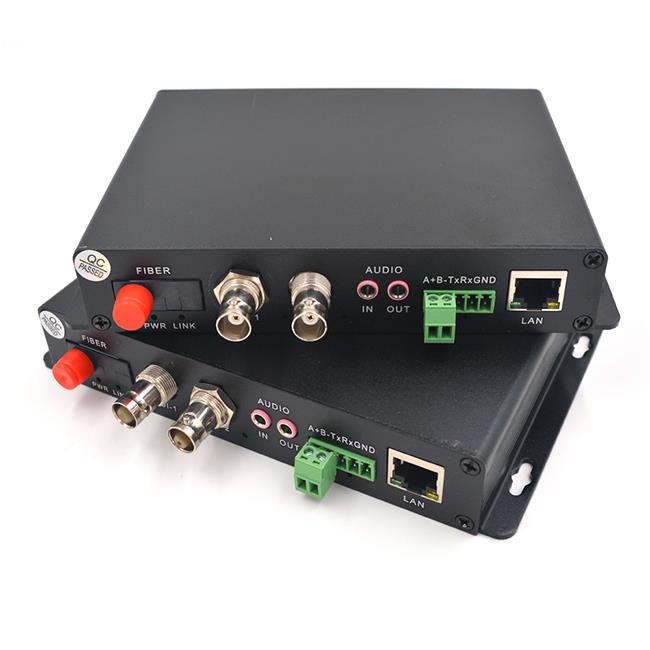

SDI HD Camera Over Fiber Media Converter Extender

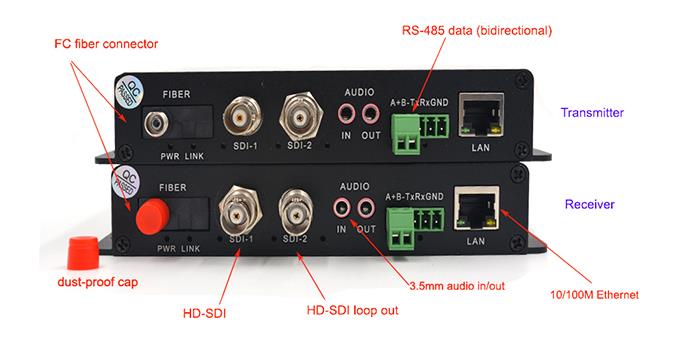

SDI HD Camera Over Fiber Media Converter Extender Port

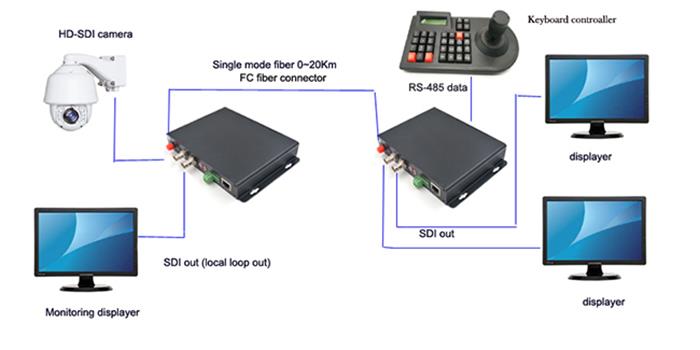

SDI HD Camera Over Fiber Media Converter Extender DiagramFeatures:
1. Support high-definition HD-SDI (1.485Gbps) (3G-SDI 2.97Gbps is optional);
2. Support 10/100Mbps ethernet for computer networking transmission and IP camera.
3. Support RS-485 data (bidirectional, reverse direction is optional ) , control PTZ .
4. Compatiable with [email protected] and backward, [email protected] and backward
5. The broadcast signal quality, fully compliant SMPT standard;
6. The maximum cable length: SD 400m; HD 200M .
7. Working distance: Single-mode 0-20Km, compatiable with multimode fiber 0-500m.
8. Wavelength : Single-mode 1310/1550um (9/125um), Multimode 850um (50/125um), 1310um (62.5/125um)
9. Voltage:AC100V-240V,DC5V/2A(US/EU/UK/AU plug optional )
10. Package:carton box
Package Include:
1 x HD-SDI Transmitter
1 x HD-SDI Receiver
2 x Power supply adaptor
1 x 3m FC/FC singlemode fiber patch cord
1x Manual
