3G-SDI HD Video To Fiber Optical Converters Extender

What Is 3G-SDI HD Video Optical Converters

3G-SDI HD Video To Fiber Optical Converters Extender The units is a multifunctional broadcast grade Top Quality real-time high-definition uncompressed professional optical fiber equipment that solves the problem of single optical fiber transmission 4 channels Bidirectional 3G-SDI video + 4 channels Bidirectional Audio+ 1 bidirectional RS485 data + 1 bidirectional RS232 data long-distance transmission. Widely used in radio and television, video conferencing, medical teaching, education recording, security monitoring and other industries with high requirements for video.

Function:

1. 4x 3G-SDI (Bidirectional, compatible with HD-SDI,SD-SDI)
2. 4x Audio (bidirectional)
3. 1x RS-485 data (bidirectional)
4. 1x RS-232 data (bidirectional)
5. FC optical interface.
6. Long working distance: Single singlemode fiber 0-20Km.

Features

1. Broadcast quality high grade optical fiber uncompressed real-time audio and video transmission equipment.

2. Support 4 channels bidirectional 3G-SDI video and 4 channels bidirectional audio.

3. Support ASI video signal format, compatible with HD-SDI, SD-SDI.

4. Support for broadcasting and TV recording resolution 1920*[email protected], support maximum resolution [email protected] Support resolution: 1080p60HZ/50HZ,1080P30HZ/25HZ,1080i60HZ/1080i 59.94/50HZ,720P60HZ/50HZ, 576i,480i.

5. Support signals accord with standards of SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI.

6. Support one bidirectional RS485 data.

7. Support one bidirectional RS232 data.

9. Support long-distance transmission up to 20 kilometers through a singlemode fiber.

10. Support hot swap.

11. With clock recovery, clock shaping.

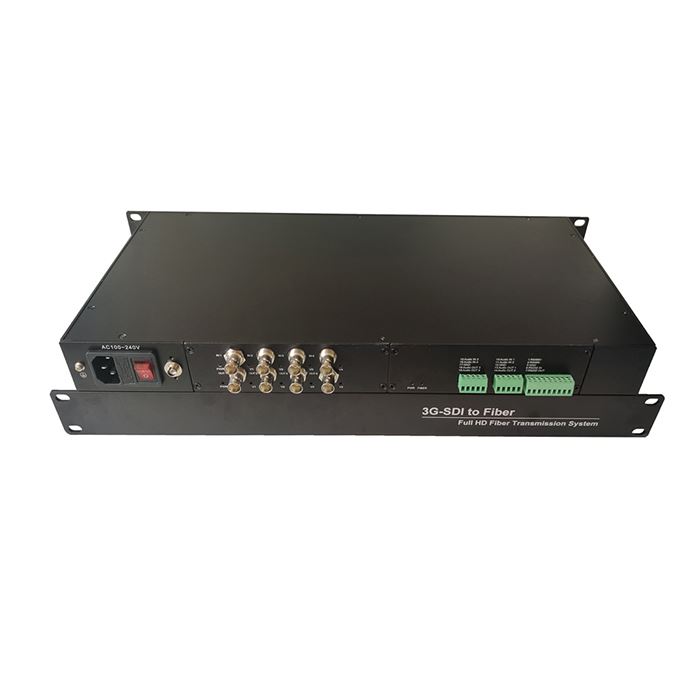

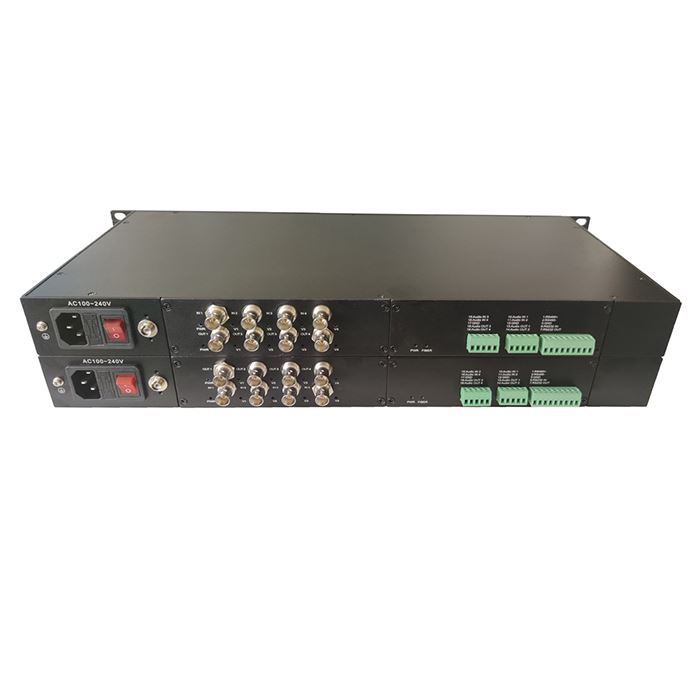

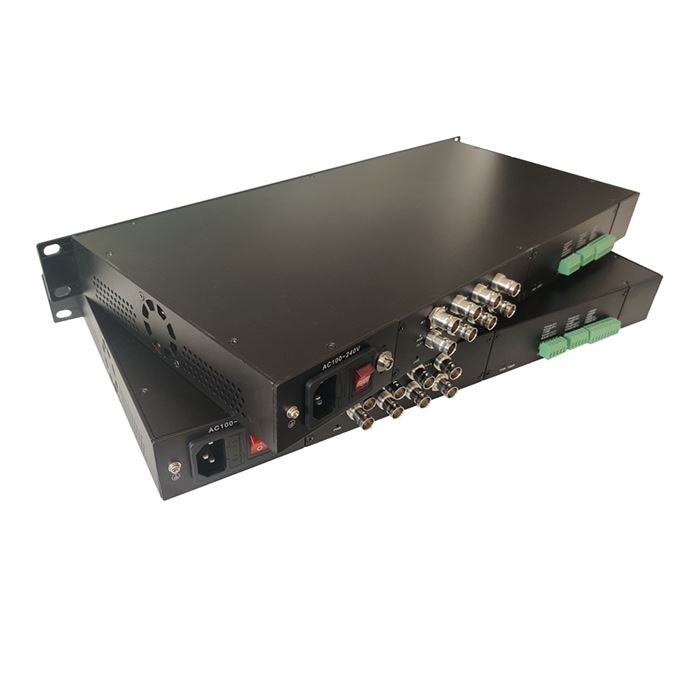

3G-SDI HD Video To Fiber Optical Converters Extender3G-SDI HD Video To Fiber Optical Converters Extender3G-SDI HD Video To Fiber Optical Converters Extender

Audio:

1. Connector: terminal block.
2. Channels: 4 bidirectional
3. Audio bandwidth Hz-20kHz
4. Input and output impedance 600Ω
5. Peak output and input signal voltage 1.5Vpp.
6. Sampling frequency 32KHZ.

RS-485 Data:

1. Terminal block connector, 1CH bidirectional, for remote control PTZ .

2. Transfer Rate : 300B/S-38.4Kb/S

3. maximum transmission distance of RS485 is 1200m

RS-232 Data:

1. Terminal block connector, 1CH bidirectional, for remote control PTZ .

2. Transfer Rate : 300B/S-115.2Kb/S

3. maximum communication distance of RS232 is 15meters.

Optical:

1. Connector: FC (ST/LC is optional)
2. Wavelength 1310-1550/1450/1470/1490/1510/1530/1570/1590/1610nm
3. Code rate 100MHZ-3.125GHZ.

Other:

1. Power supply: AC100V-240V,DC5V2A (US/EU/UK/AU standard is optional).
2. Power ＜15W
3. Working temperature -20°C - 70°C
4. Storage temperature -40°C - 85°C
5. Working humidity 0 - 95% (no condensation)
6. Storage humidity 0%-90%RH (no condensation)
7. Weight 4.2kg/pair (with power supply and outer packaging 5kg/pair).

Packing Contents

1. 1 x 3G-SDI Transmitter

2. 1 x 3G-SDI Receiver

3. 2 x Power Supply adapter (default US standard, EU/AU/UK is optional)

4. 1x 3M FC-FC SM fiber patch cord.

5. User manual.
