What Is Small SDI to Fiber Optic Converter
The item is used to send 3G/HD-SDI signal over one single-mode or multimode fiber for remote display. the 3G/HD-SDI signal is with embedded audio ,And with one local loop-out on the transmitter and receiver for monitoring.
Optional:
● 3G-SDI version (2.97Gbps), support 3G-SDI camera and compatible with HD-SDI camera
● HD-SDI version (1.485Gbps), support HD-SDI camera, not support 3G-SDI camera

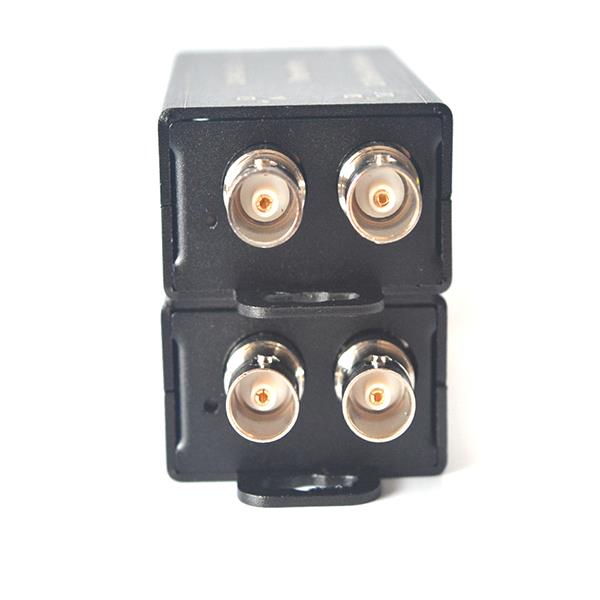

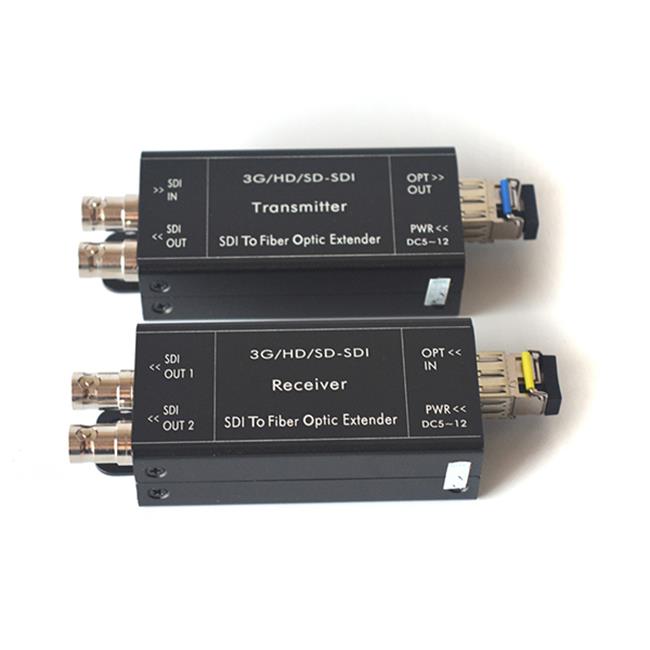

Small SDI Over Fiber Optic Converter

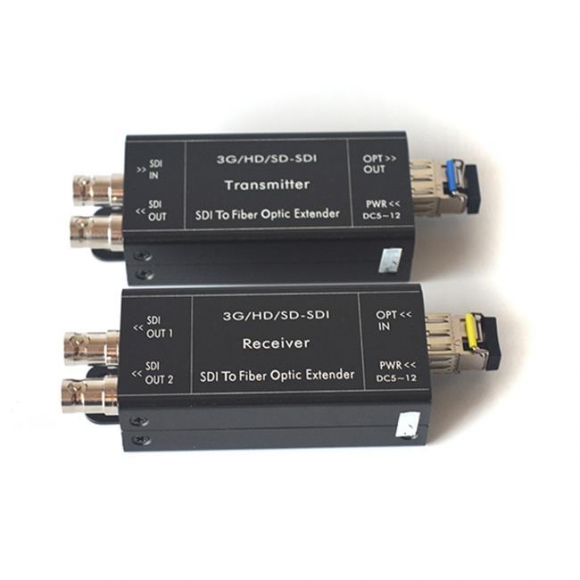

Small SDI Over Fiber Optic Converter Transmitter

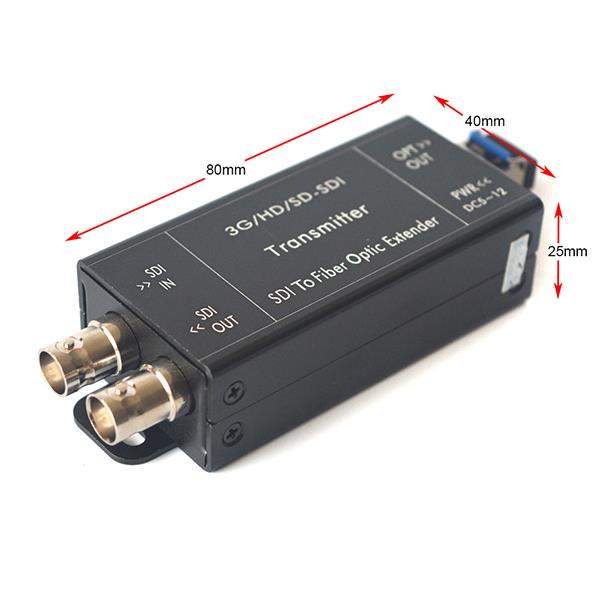

Small SDI Over Fiber Optic Converter Transmitter size

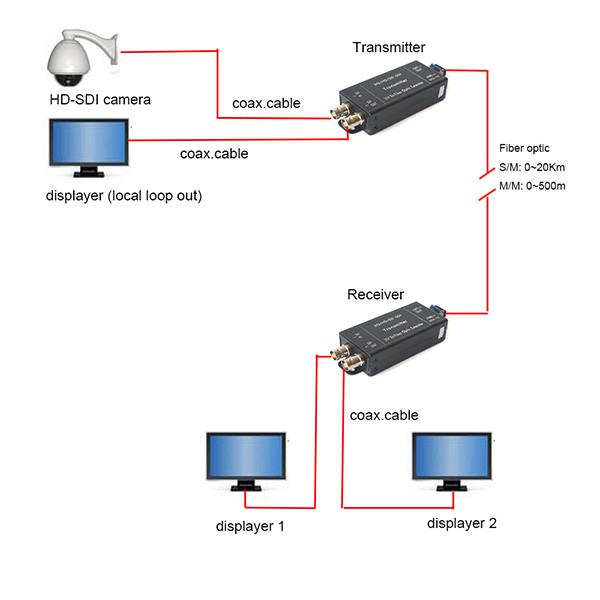

Small SDI Over Fiber Optic Converter Transmitter DiagramFeatures:
1. Support HD-SDI (1.485Gbps) and 3G-SDI (2.97Gbps) video format Style
2. Supports SMPTE 305M (SDTi), SMPTE 344M (540Mb/s), M2S and DVB-ASI (270Mb/s) standards.
3. Long transmission distance: S/M: 0-20Km,M/M: 0-500m.
4. The LED status indicator monitors critical parameters. Support hot swap.
5. Mean time between failures >100,000 hours
Specifications:
Serial TV: BNC Input/Output
TV signal standards: SMPTE 424M, SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rates (270Mb/s – 1.485Gb/s)
Number of inputs: 1 way
Reflection loss: >15DB
Balance: >[email protected], Belden 1694A cable
>[email protected], Belden 1694A cable
>[email protected], Belden 1694A cable
Connector: 75Ω BNC
Cable transmission type: single mode single fiber (multimode optional)
Working wavelength: 1310nm / 1550nm
Reflection loss: > 15dB
Jitter:
Optical connector: LC/UPC, singlemode single fiber
Serial TV BNC output (EO/OE) is the same as the input
Number of outputs: 1 HDSDI output at the receiving end
Signal level: 800mV nominal
Rise/fall time: 200ps nominal
Overshoot:
Electrical index
Working temperature: -25 ° C - +70 ° C
Power supply voltage: [email protected]-12VDC
Power consumption: 1W
EMI/RFI complies with FCC Part 15 Class A, EU EMC Specifications
Mean time between failures >100,000 hours
Applicable for :
1.Long-distance transmission of military exercises HD video signal
2.Security monitoring high-definition video signal long-distance transmission
3.HD video signal transmission in large-scale performances
4.A variety of high-definition video should occasion
Package Include:
1 x SDI Transmitter
1 x SDI receiver
2 x SFP optical module
1x FREE 3M LC/LC fiber patch cord.
2 x Power adaptors AC100-240V DC12V/1A (US/EU/UK/AU optional)
