What Is 2 SDI Over Fiber Optic Extenders RS485 Ethernet Audio

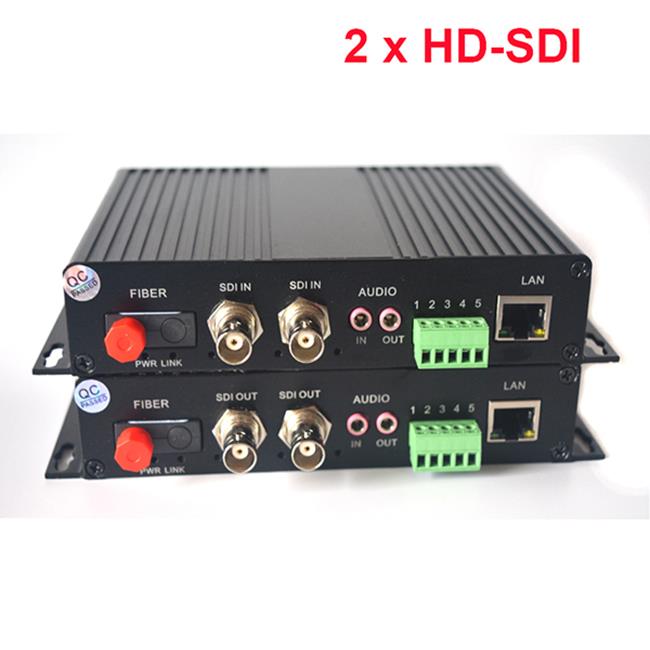

2 Channels HD-SDI over a Fiber Optic Media Converters, Video/Audio/RS485 Data/100Mbps Ethernet to Fiber optic,Include Transmitter and Receiver kit.
The item is 2 channels HD-SDI over one fiber optic for remote video display, it is with embedded audio signal. Transmission distance can be extended to 20Km through one singlemode fiber cable. also compatible with multimode fiber 0-500mts. the device can be widely used in TV live broadcast, high-definition video conference, high-definition video surveillance and other fields.
Besides, our innovative video, audio and data media transport system is designed to maintain lossless fiber extension between input and output signals. The plug-and-play design makes the installation convenient and easy, the LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment. Signal Bit Rate from 270 Mbps to 1.5Gbps. Fiber optical transmission excludes electromagnetic noise factor, it makes this product a perfect solution for efficient, reliable and secured HD-SDI signal transport.
Product Function:
1. 2x HD-SDI (same direction, from TX to RX)
2. 1x RS-485 data (Bidirectional)
3. 1x 10/100Mbps Ethernet
4. 1x 3.5mm Audio in and out
5. FC optical interface, Singlemode 0-20Km, multimode 0-500m
Feature:
1. This HD-SDI over fiber system is used to send 2 channels HD-SDI over a single fiber with FC/FC optical interface for remote display devices, with embedded audio signal. Transmission distance can be extended to 20Km(12.4miles) through one singlemode fiber cable. also compatible with multimode fiber 0-500meters
2. The device can be widely used in TV live broadcast, high-definition video conference, high-definition video surveillance and other fields
3. With RS-485 data (remote control camera) and one 10/100Mbps Ethernet and stereo 3.5mm audio
4. Plug and play, easy to install.

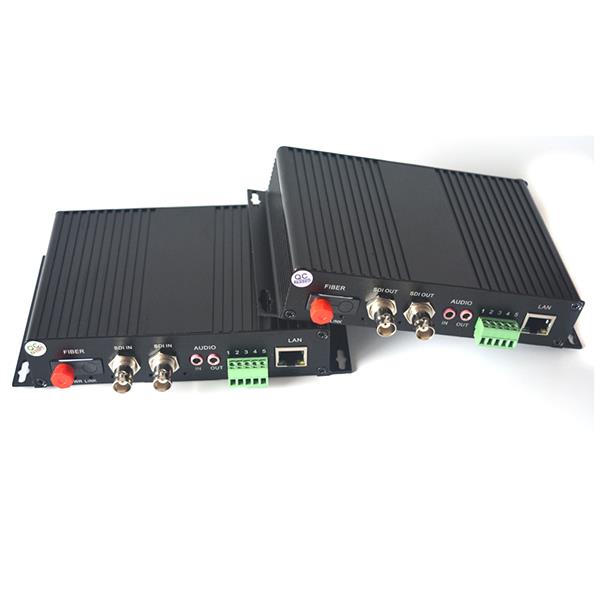

2 SDI Over Fiber Optic Extenders RS485 Ethernet Audio

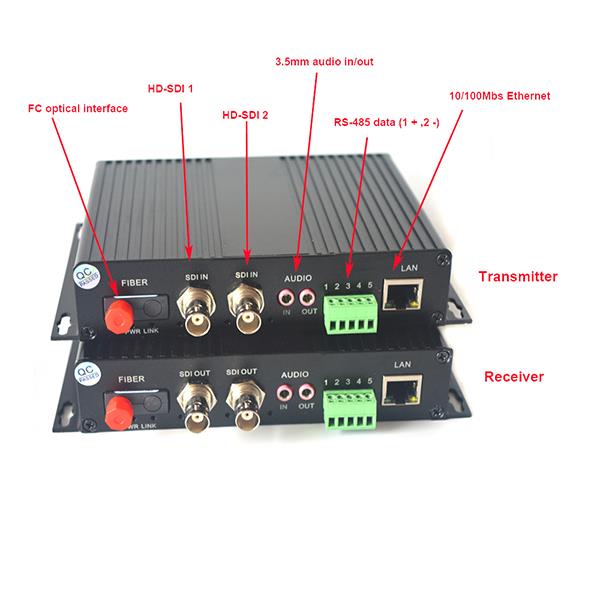

2 SDI Over Fiber Optic Extenders RS485 Ethernet Audio Ports

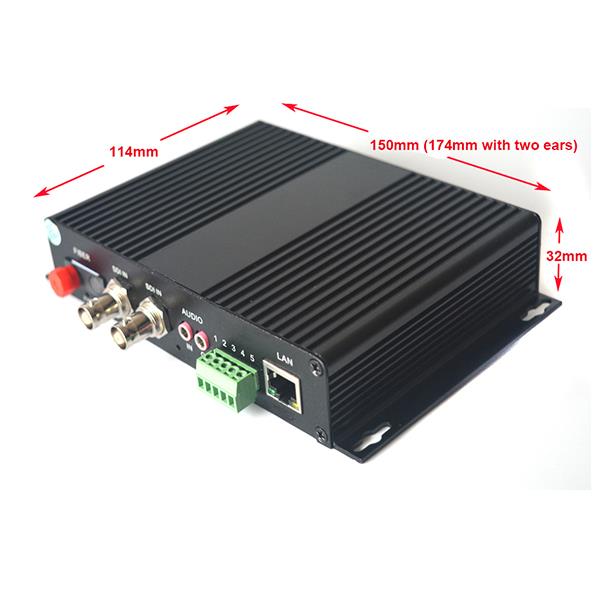

2 SDI Over Fiber Optic Extenders RS485 Ethernet Audio Size

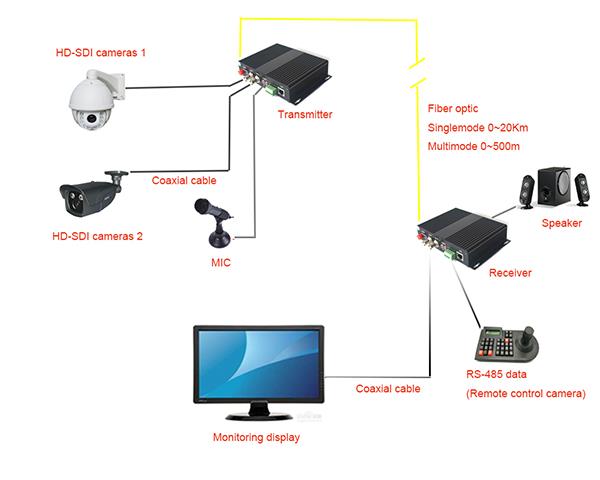

2 SDI Over Fiber Optic Extenders RS485 Ethernet Audio DiagramSpecification:
1. Support HD-SDI (1.485Gbps) Cameras
2. Compatible with SMPTE-292M HD-SDI standard signal, supporting 1485Mb/s rate
3. Support video format: [email protected], 25, 24, [email protected], 50, [email protected], 50, 30, 25 etc.
4. Working wavelength: 1310nm,1550nm
5. Optical interface: FC (SC/LC optional)
6. Data: RS-485 interface(2 wires), Bidirectional. RS422/232 is optional.
7. Ethernet: RJ45 interface. for remote networking transmission, also can use for IP camera for remote video display.
8. Transmission distance : Singlemode 0-20Km, multimode 0-500m
9. Voltage:AC100V-240V,DC5V/2A (US/EU/UK/AU optional )
10. Package: carton box
Package Include:
1 x HD-SDI Transmitter
1 x HD-SDI Receiver
1 x 3M FC/FC S/M fiber patch cord
2 x Power adapters.
1x Manual
